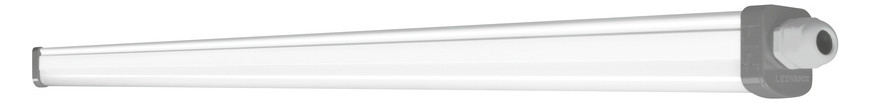

ledvance/asset-2248364.jpg

Damp-proof luminaire with slim housing

SKU: 02-4058075066458
Datasheet: Download PDF
For further information, please refer to the data sheet!
Damp-proof luminaire with slim housing. Produkteigenschaften: Hohe Lichtausbeute: bis zu 110 lm/W. Ausstrahlungswinkel: 120°. Schutzart: IP65. Produktvorteile: Gleichmäßige Lichtverteilung. Bis zu 50 % Energieersparnis (verglichen mit Leuchten, die Leuchtstofflampen verwenden). Sehr schlankes Gehäuse. Einfache Installation dank Montageklammern, die frei an der Leuchte positioniert werden können. Werkzeugloser elektrischer Anschluss dank Push-Button-Anschlussklemme. 3 Jahre Garantie. Einfacher Zugang zum Anschlussterminal dank Endkappe mit Schnappmechanismus. Anwendungsgebiete: Industrie- und Lagerareale. Parkplätze und Unterführungen. Garagen. Werkstätten, Fertigungsstraßen. Technische Ausstattung: Klammern aus Edelstahl und Sicherheitsschrauben enthalten. Montagezubehör enthalten (Abhängungs-Kit, Diebstahlschutz-Kit).
Weight
0,45 kg
Minimum order quantity

20 pieces

Order step

20 pieces

Weight

0,45 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

No

Dimming DALI-2

No

Max. Number of lights Circuit breaker C16

77

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Housing color

white

Max. System performance

36 W

Color temperature

4.000 K

Protection class (IP)

IP65

Without dimming function

Yes

Width

35 mm

Height/depth

48 mm

Length

1.200 mm

Suitable for number of light sources

0

Version

other

Surface protection housing

untreated

Material of the housing

Plastic

Design of the grid

dull

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

200 mA

Operating device

EVG

Light distributor

Diffuser lens/optics/panel

Color consistency (McAdam ellipse)

SDCM5

Light emission

direct

Rated service life L70/B50 at 25 °C

30.000 h

Rated service life L80/B10 at 25 °C

27.000 h

Rated service life L90/B10 at 25 °C

19.000 h

Impact resistance

IK08

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Luminaire luminous efficacy

110 lm/W

Rated luminous flux according to IEC 62722-2-1

4.000 lm

Light source

LED not replaceable

Power factor

0,9

Type of wiring

Conclusion

Number of poles

3

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Chandeliers and other electric ceiling and wall lights, with LED light source, made of plastic or ceramic materials (94051140)

REACH Indicator

No

Datenblatt
4058075066458_DP_SLIM_VALUE_1200_36_W_4000_K_IP65_GY_de.pdf4058075066458_tds_de.pdfasset-2698628-3.pdfasset-4144059-3.pdfasset-3271330.jpgasset-3271877.jpgasset-13075144-3.pdfasset-3244290.jpg
Suitable for wall mounting

No

Suitable for pendant suspension

No

Suitable for recessed mounting

No

Geeignet für Anbaumontage

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Suitable for number of light sources

0

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimmung GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Dimming depending on the control gear

No

Bemessungsumgebungstemperatur nach IEC62722-2-1

-20 – 40 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

Mit Luftschlitzen

No

Operation via Bluetooth

No

Cover material

Plastic opal

Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015

nicht erforderlich

Light color

white

Color rendering index CRI

80-89

Erfüllt min. EIA Lebensdauerkriterium L90 (bei 50.000 h bei tq = 25 °C)

No
