02-4058075079052
31. October 2024
02-4058075079090
31. October 2024
02-4058075079076
For further information, please refer to the data sheet!Minimum order quantity
6 pieces
Order step
6 pieces
Weight
0,272 kg
Product group
Downlight/spotlight/floodlight (EC001744)
Suitable for wall mounting
No
Dimming DALI-2
No
Constant luminous flux control
No
Adjustable beam angle
No

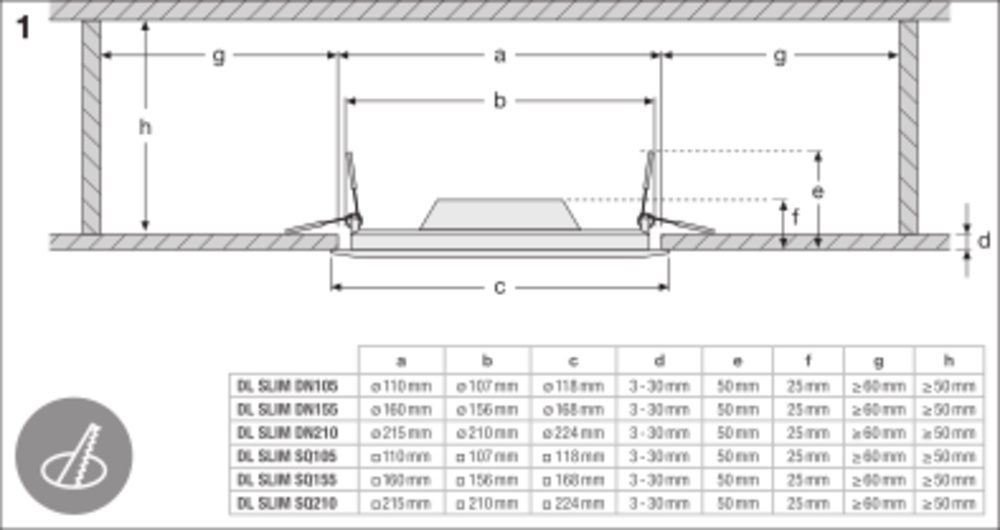

Installation diameter
155 mm
Max. Number of lights Circuit breaker C16
61
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
Light source
LED not replaceable
Suitable for number of light sources
0
Version
Without
Surface protection
untreated
Housing color
white
Brushed surface
No
Voltage type
AC
Nominal voltage
220 – 240 V
LED rated current with constant current
71,7 mA
Operating device
LED control gear, current-controlled
Without dimming function
Yes
Reflector
Without
Light distributor
Diffuser lens/optics/panel

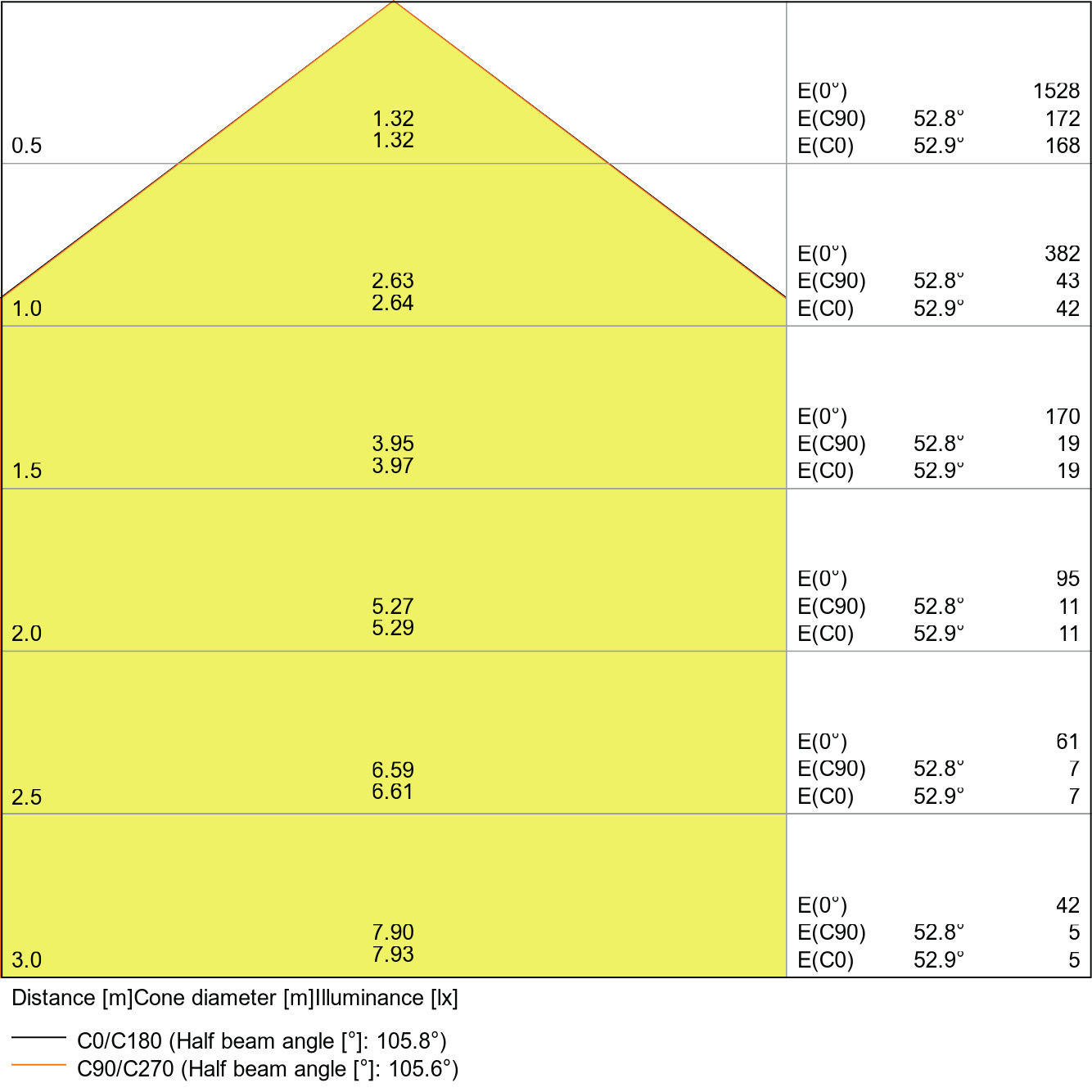

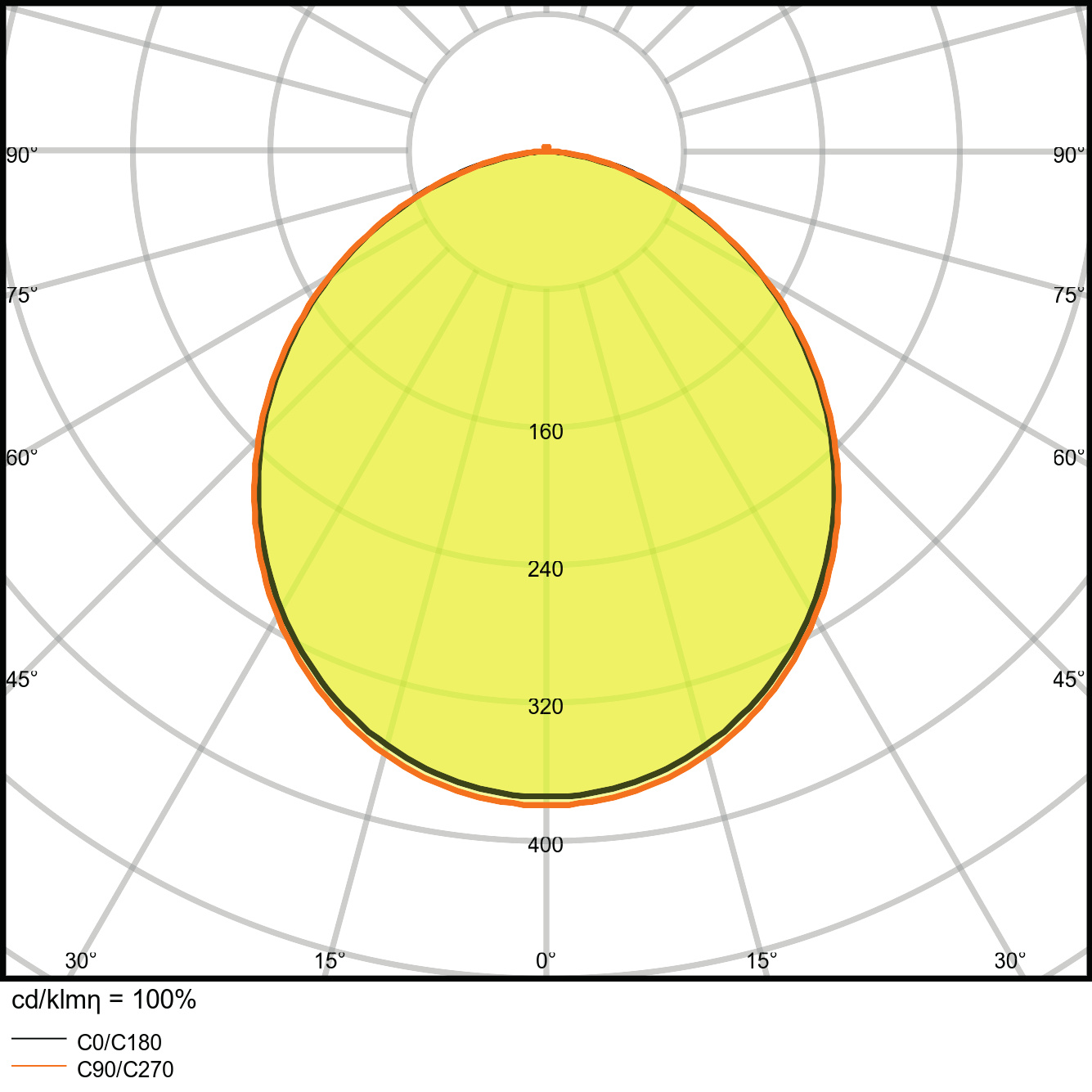

Light distribution
symmetrical
Light emission
direct
Rated service life L70/B50 at 25 °C
30.000 h
Rated service life L80/B10 at 25 °C
20.000 h
Protection class (IP)
IP20
Impact resistance
IK03
Protection class
II
Rated ambient temperature according to IEC 62722-2-1
-20 – 50 °C
Max. System performance
12,00 W
Color temperature
6.500,00 K
Luminous flux
1.020,00 lm
Rated luminous flux according to IEC 62722-2-1
1.020 lm
Power factor
0,50
Height/depth
50,00 mm
Outer diameter
169 mm
Installation height/depth
50 mm

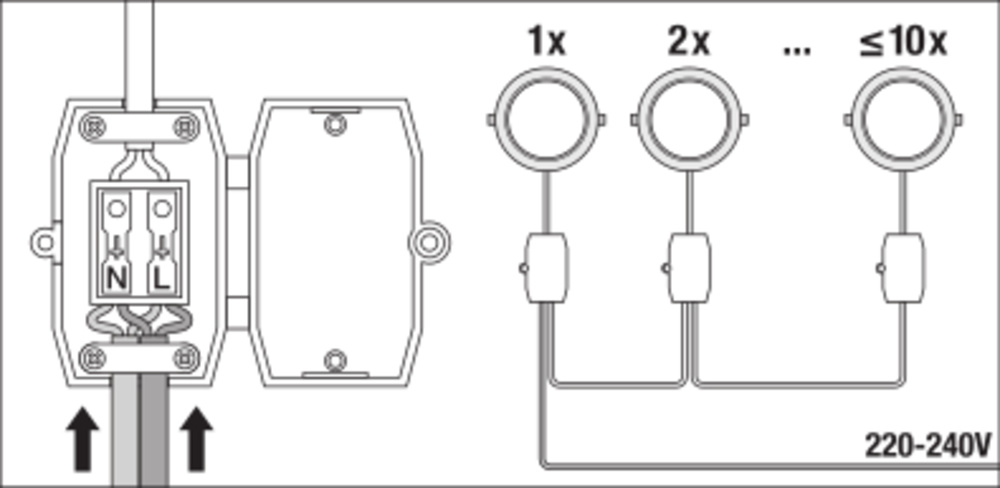

Type of wiring
Conclusion
Number of poles
2

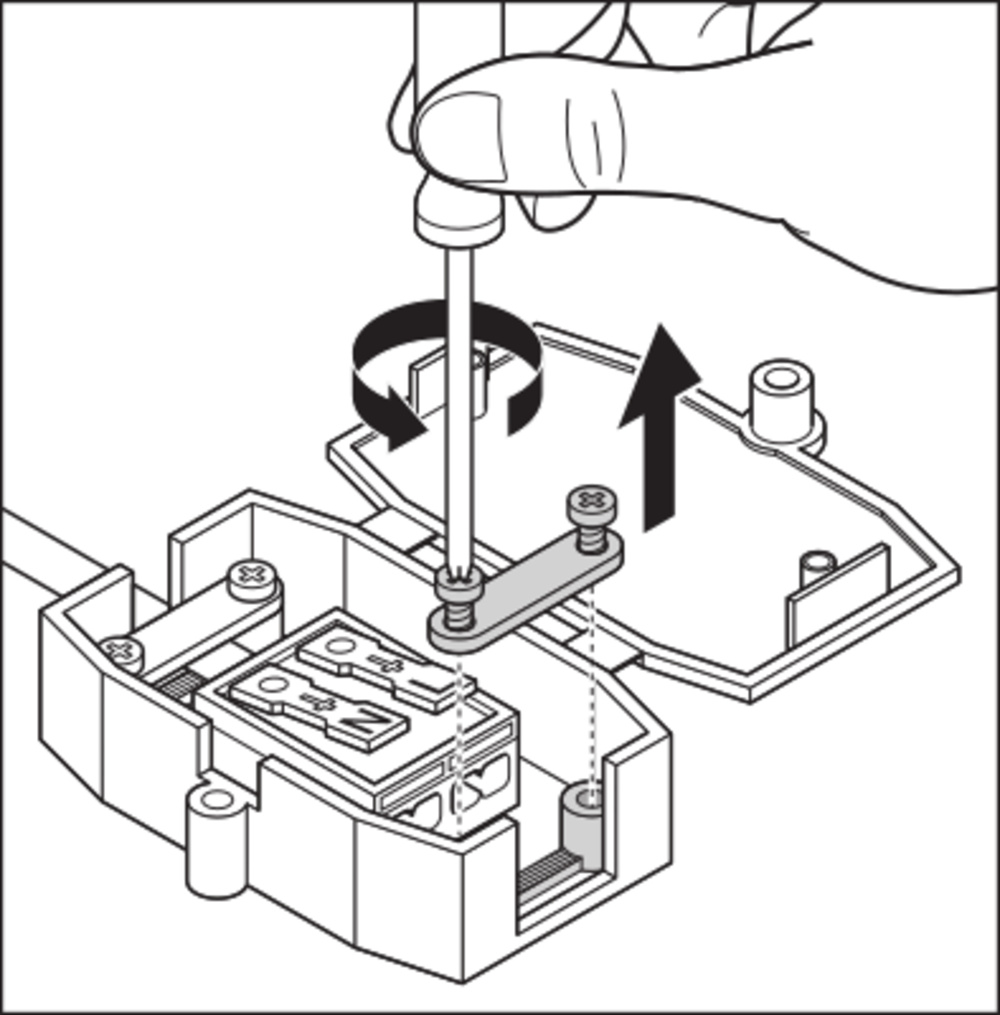

Connection type
Plug-in terminal
Luminaire luminous efficacy
85 lm/W
Photobiological safety according to EN 62471
RG0
Suitable for surface mounting
Yes
Suitable for recessed mounting
Yes
Suitable for ceiling mounting
Yes
With illuminant
Yes
With control gear
Yes
Country of origin
China (CN)
Commodity code
Chandeliers and other electric ceiling and wall lights, with LED light source, made of plastic or ceramic materials (94051140)
REACH Indicator
No
