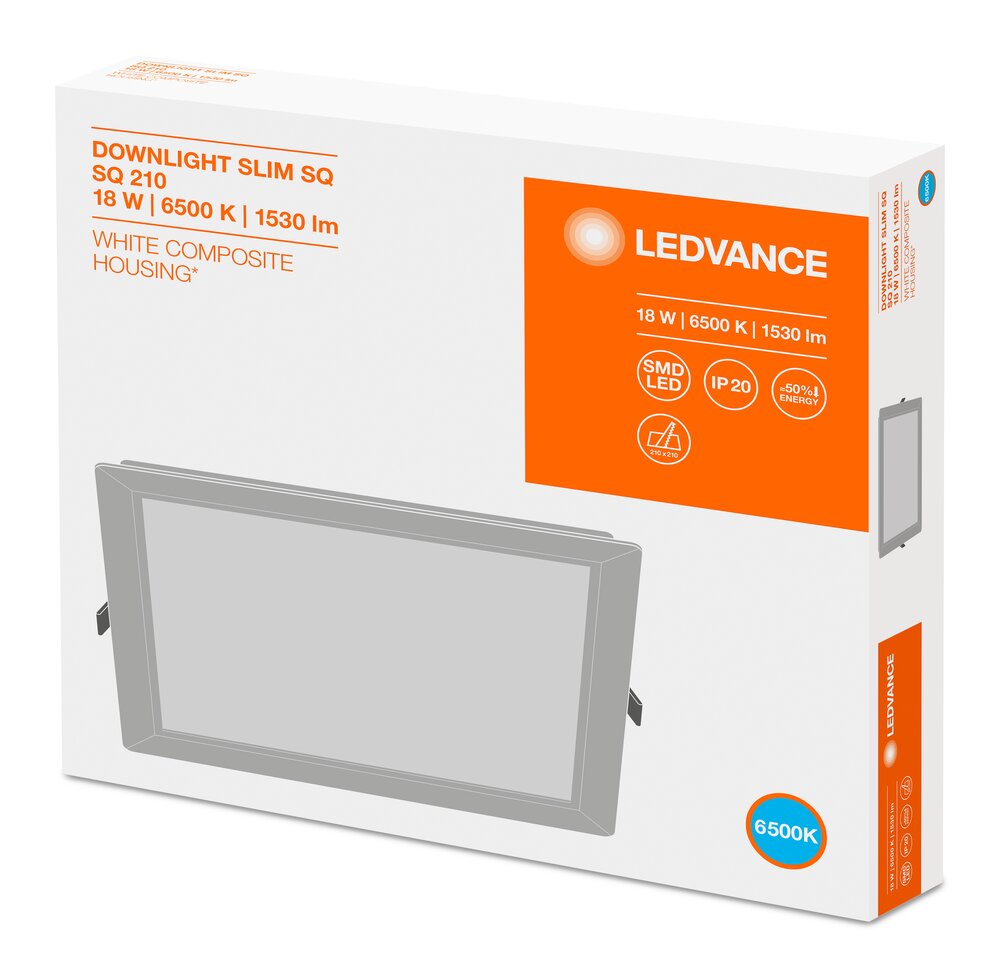

Flache Downlightleuchten mit integriertem Treiber, quadratisch

SKU: 02-4058075079373
Datasheet: Download PDF
For further information, please refer to the data sheet!
Flache Downlightleuchten mit integriertem Treiber, quadratisch. Produkteigenschaften: Schmaler sichtbarer Rahmen. Anschlussbox mit Steckklemme für werkzeuglosen Anschluss. Lichtleiter aus vergilbungsfreiem PMMA für lange Lebensdauer. Produktvorteile: Sehr schlankes Gehäuse. Niedrige Installationstiefe. Hohe Lichtausbeute. Bis zu 60 % Energieersparnis (im Vergleich zu Leuchten, die Kompaktleuchtstofflampen nutzen). Sehr homogenes Licht. Funktionales Design. Einfache Installation mit schnellem Anschluss. Einfache Installation dank integriertem Treiber. Anwendungsgebiete: Direkter Ersatz für Leuchten mit Kompaktleuchtstofflampen. Allgemeinbeleuchtung. Öffentlicher Raum. Treppenhäuser. Flure. Eingangsbereiche. Geschäfte. Technische Ausstattung: Rahmen für Anbaumontage als Zubehör erhältlich.
Weight
0,527 kg
Minimum order quantity

6 pieces

Order step

6 pieces

Weight

0,527 kg

Product group

Downlight/spotlight/floodlight (EC001744)

Suitable for wall mounting

Yes

Replaceable operating device

Yes

Dimming DALI-2

No

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Max. Number of lights Circuit breaker C16

56

IFTTT support available

Yes

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

not adjustable

Light source

LED not replaceable

Suitable for number of light sources

0

Version

Without

Surface protection

powder-coated

Housing color

white

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

LED rated current with constant current

108 mA

Operating device

LED control gear, current-controlled

Without dimming function

Yes

Reflector

Without

Light distributor

Diffuser lens/optics/panel

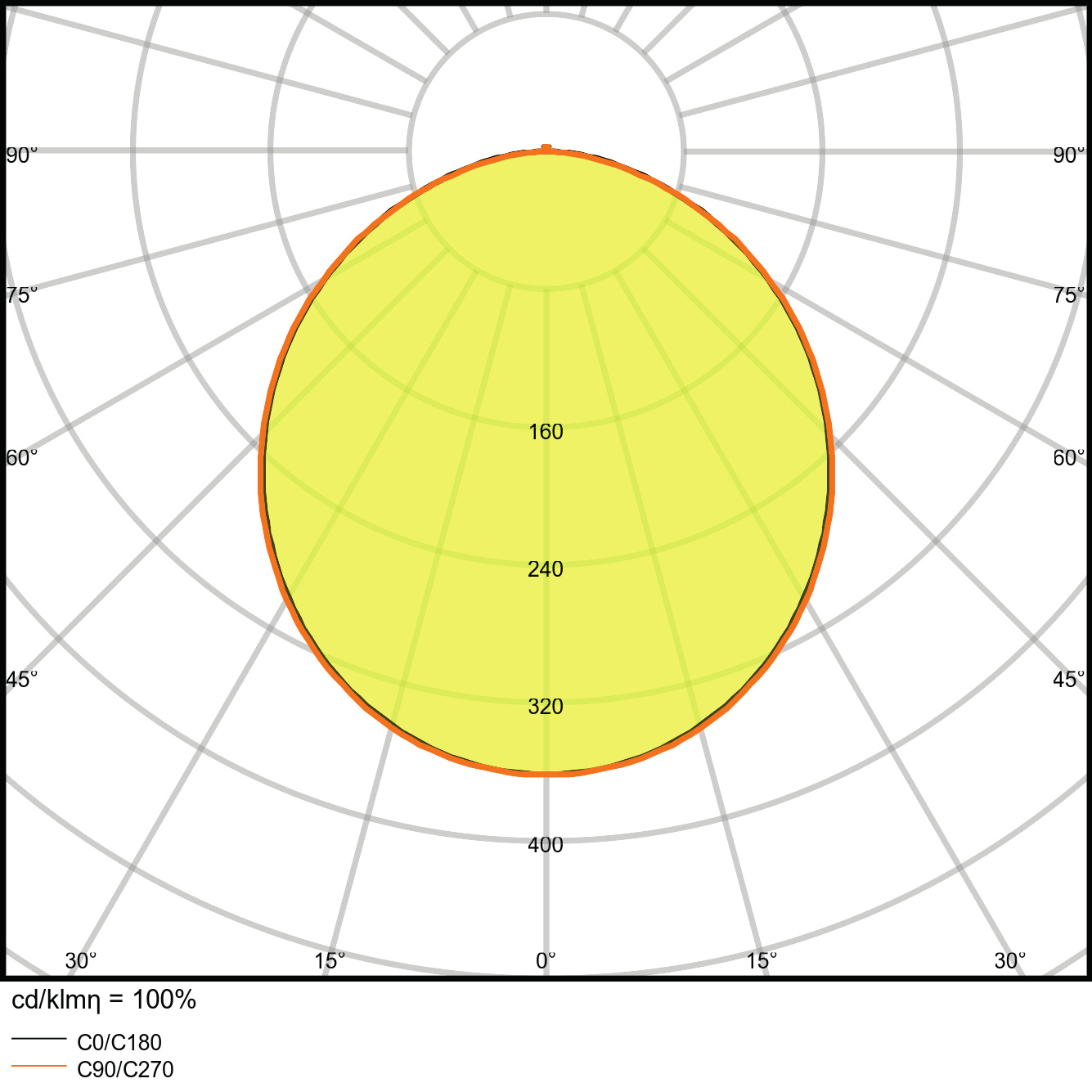

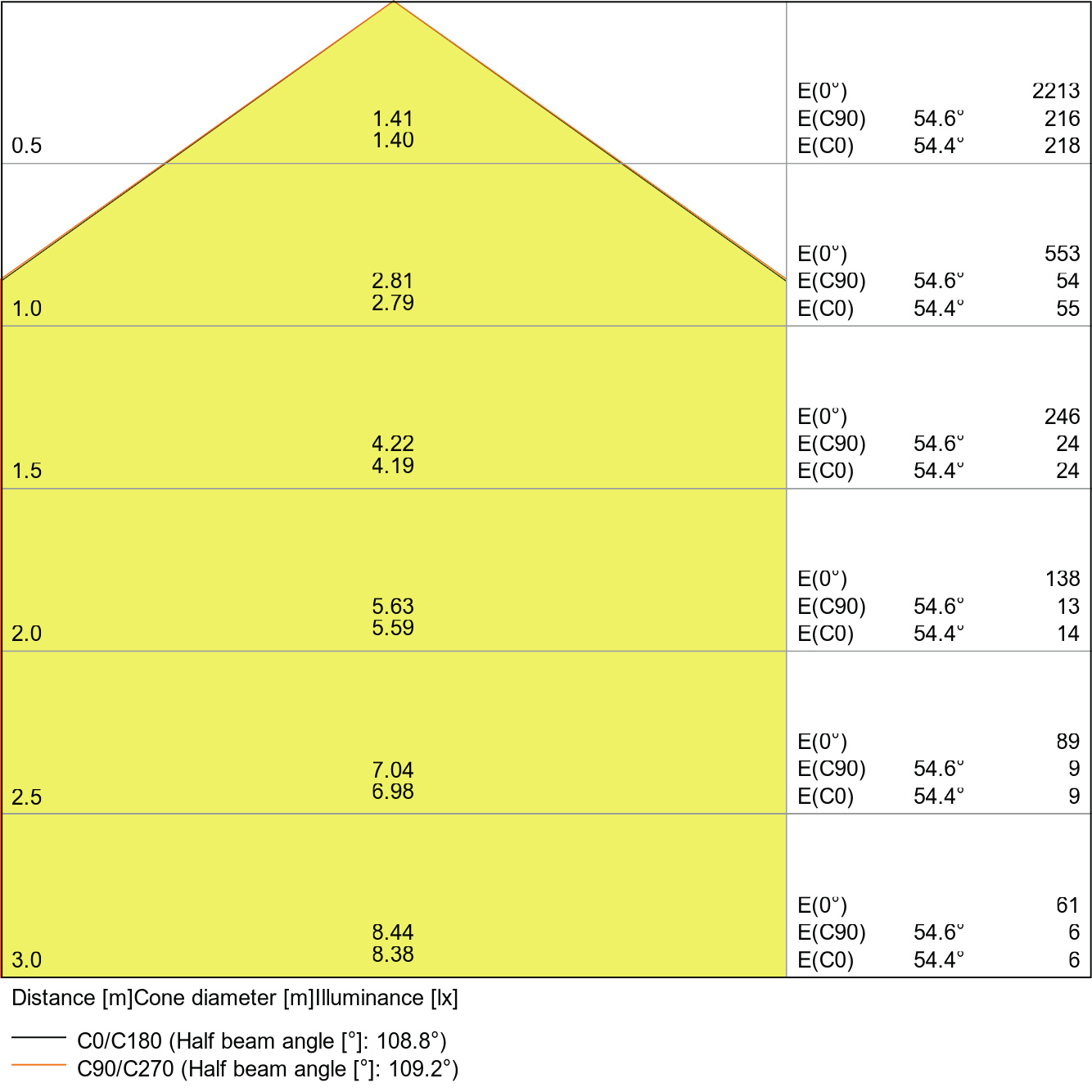

Light distribution

symmetrical

Light emission

direct

Rated service life L70/B50 at 25 °C

30.000 h

Rated service life L80/B10 at 25 °C

20.000 h

Protection class (IP)

IP20

Impact resistance

IK03

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-20 – 50 °C

Max. System performance

18 W

Color temperature

6.500 K

Luminous flux

1.530 lm

Rated luminous flux according to IEC 62722-2-1

1.530 lm

Power factor

0,5

Width

225 mm

Height/depth

30 mm

Length

225 mm

Installation width

210 mm

Installation height/depth

50 mm

Installation length

210 mm

Type of wiring

Conclusion

Number of poles

2

Connection type

Plug-in terminal

Luminaire luminous efficacy

85 lm/W

Photobiological safety according to EN 62471

RG0

Suitable for surface mounting

Yes

Suitable for recessed mounting

Yes

Suitable for ceiling mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus Kunststoffen (94054231)

REACH Indicator

No

Datenblatt
4058075079373_DL_SLIM_SQ_210_18_W_6500_K_WT_de.pdf4058075079373_tds_de.pdfasset-3835005-1.pdfasset-3271283.jpgasset-3271817.jpgasset-1967012-1.pdfasset-3036181.jpg
Geeignet für Anbaumontage

Yes

Suitable for pendant suspension

No

With motion detector

No

With light sensor

No

Suitable for number of light sources

0

Dimming depending on the control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimmung GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Bemessungsumgebungstemperatur nach IEC62722-2-1

-20 – 50 °C

Integrated emergency power supply

No

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

Material of the housing

Plastic

Cover material

Plastic opal

Rated current

108 mA

Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015

nicht erforderlich

Color rendering index CRI

80-89

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Operation via Bluetooth

No
