02-4058075091634
31. October 2024
02-4058075091955
31. October 2024
02-4058075091672
For further information, please refer to the data sheet!Minimum order quantity
8 pieces
Order step
8 pieces
Weight
0,6 kg
Product group
Downlight/spotlight/floodlight (EC001744)
Suitable for wall mounting
No
Dimming DALI-2
Yes
Constant luminous flux control
No
Adjustable beam angle
No
Installation diameter
200 mm
Max. Number of lights Circuit breaker C16
38
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
Light source
LED not replaceable
Suitable for number of light sources
0
Version
Without
Material of the housing
Aluminum
Surface protection
powder-coated
Housing color
white
Brushed surface
No
Voltage type
AC
Nominal voltage
220 – 240 V
LED rated current with constant current
125 mA
Operating device
LED control gear, current-controlled
Without dimming function
No
Reflector
Without
Light distributor
Diffuser lens/optics/panel

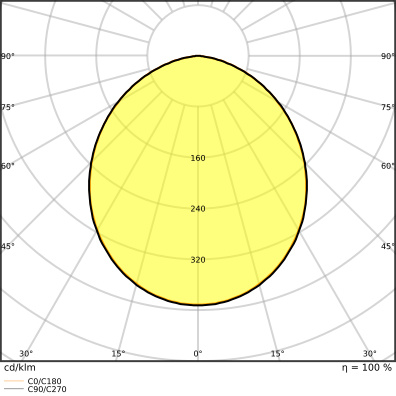

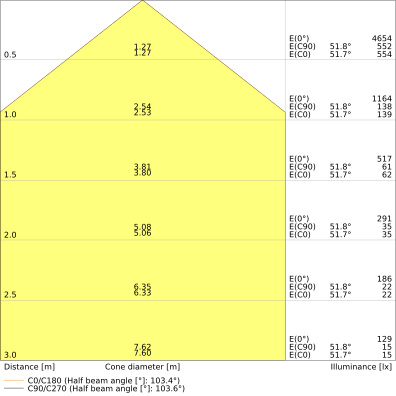

Light distribution
symmetrical
Light emission
direct
Rated service life L70/B50 at 25 °C
50.000 h
Rated service life L80/B10 at 25 °C
45.000 h
Protection class (IP)
IP44
Impact resistance
IK02
Protection class
II
Rated ambient temperature according to IEC 62722-2-1
-20 – 45 °C
Max. System performance
35,00 W
Color temperature
3.000,00 K
Luminous flux
2.975,00 lm
Rated luminous flux according to IEC 62722-2-1
2.975 lm
Height/depth
120,00 mm
Outer diameter
215 mm
Installation height/depth
120 mm
Type of wiring
Conclusion
Number of poles
4

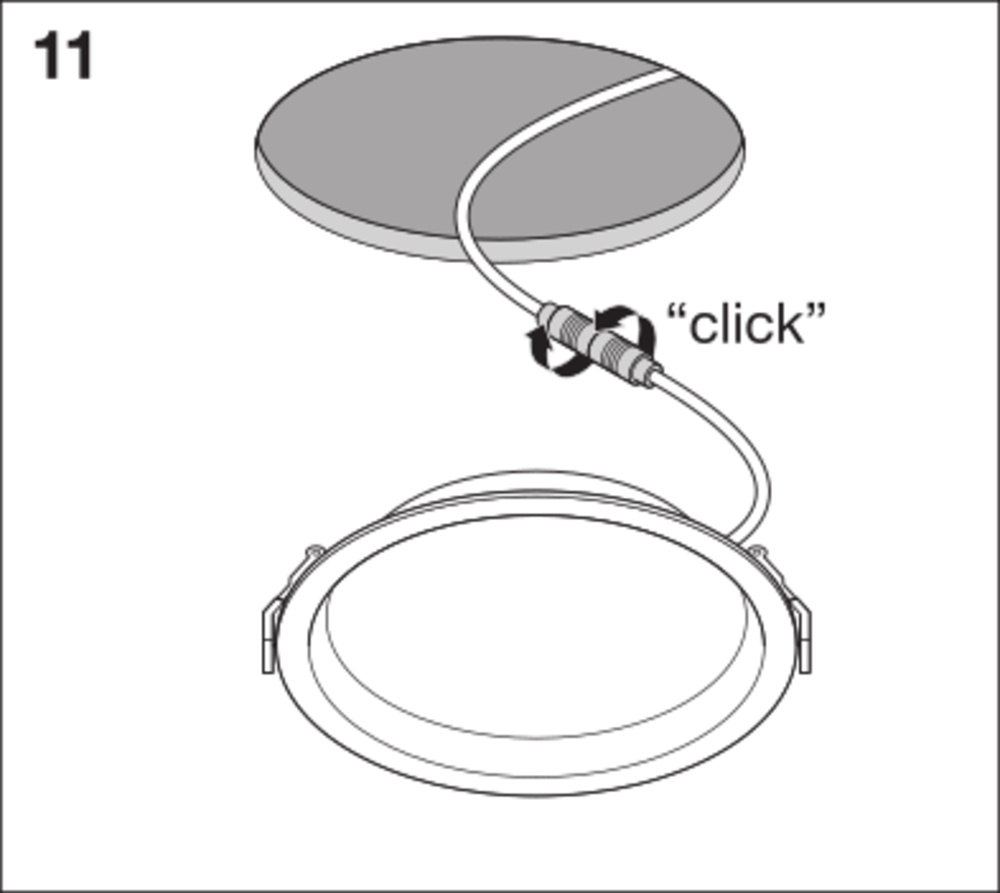

Connection type
Plug-in terminal
Luminaire luminous efficacy
85 lm/W
Photobiological safety according to EN 62471
RG0
Color consistency (McAdam ellipse)
SDCM6
Suitable for surface mounting
Yes
Suitable for recessed mounting
Yes
Suitable for ceiling mounting
Yes
With illuminant
Yes
With control gear
Yes
Dimming depending on the control gear
Yes
DALI dimming
Yes
Country of origin
China (CN)
Statistische Warennummer
andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus anderen Stoffen als aus Kunststoffen (94054239)
REACH Indicator
Yes
