02-4058075102606
31. October 202402-4058075102682
31. October 2024
02-4058075102644
For further information, please refer to the data sheet!Minimum order quantity
3 pieces
Order step
3 pieces
Weight
1,8 kg
Product group
Gear tray for continuous-row lighting system (EC000986)
Adjustable beam angle
No
Light source
LED not replaceable
Suitable for number of light sources
0
Version
Without
Material of the housing
Aluminum
Housing color
silver
Voltage type
AC/DC
Nominal voltage
220 – 240 V
Rated current
250 mA
LED rated current with constant current
250 mA
Operating device
EVG
Without dimming function
No
Light distributor
other
Reflector
Without

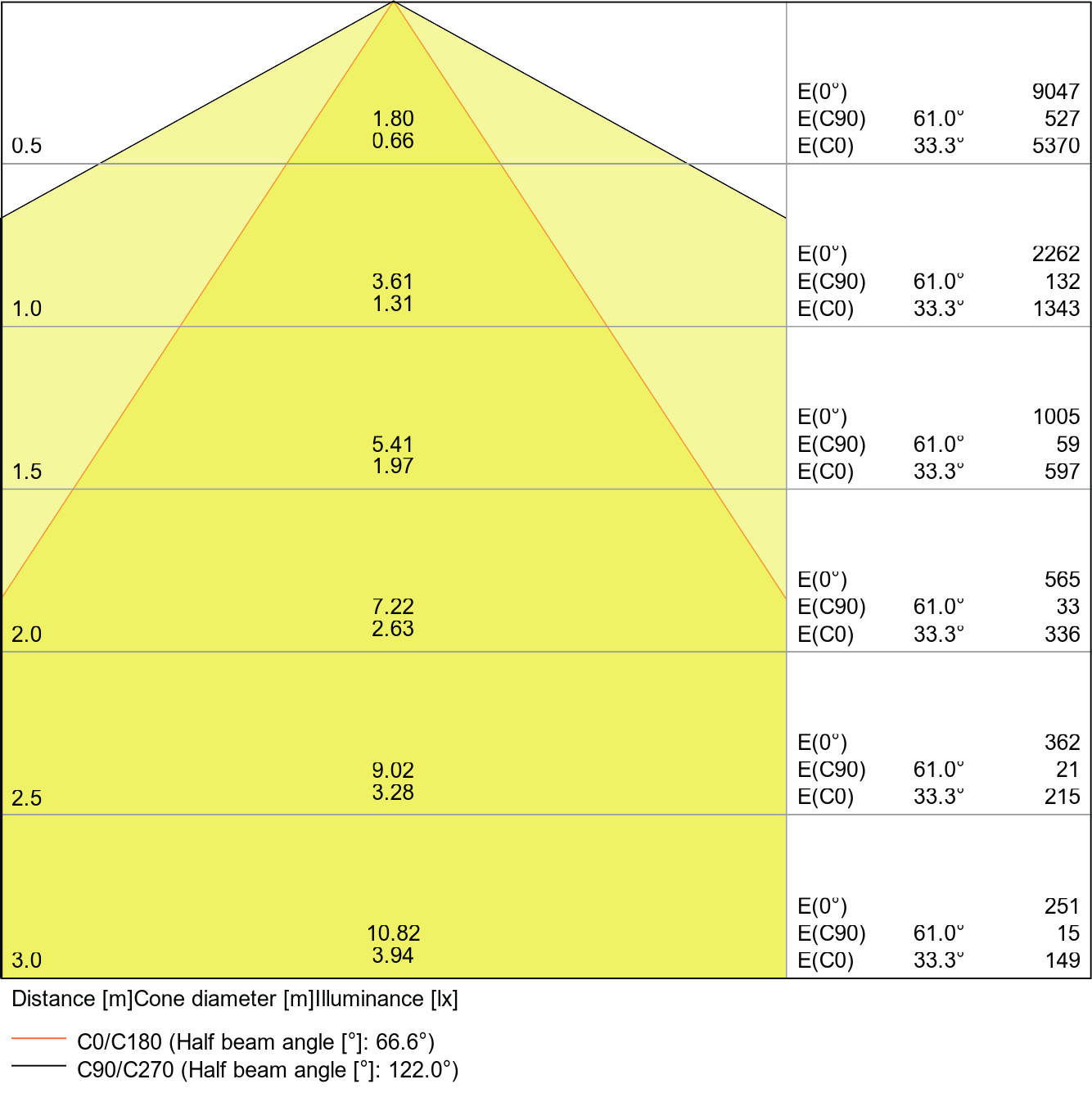

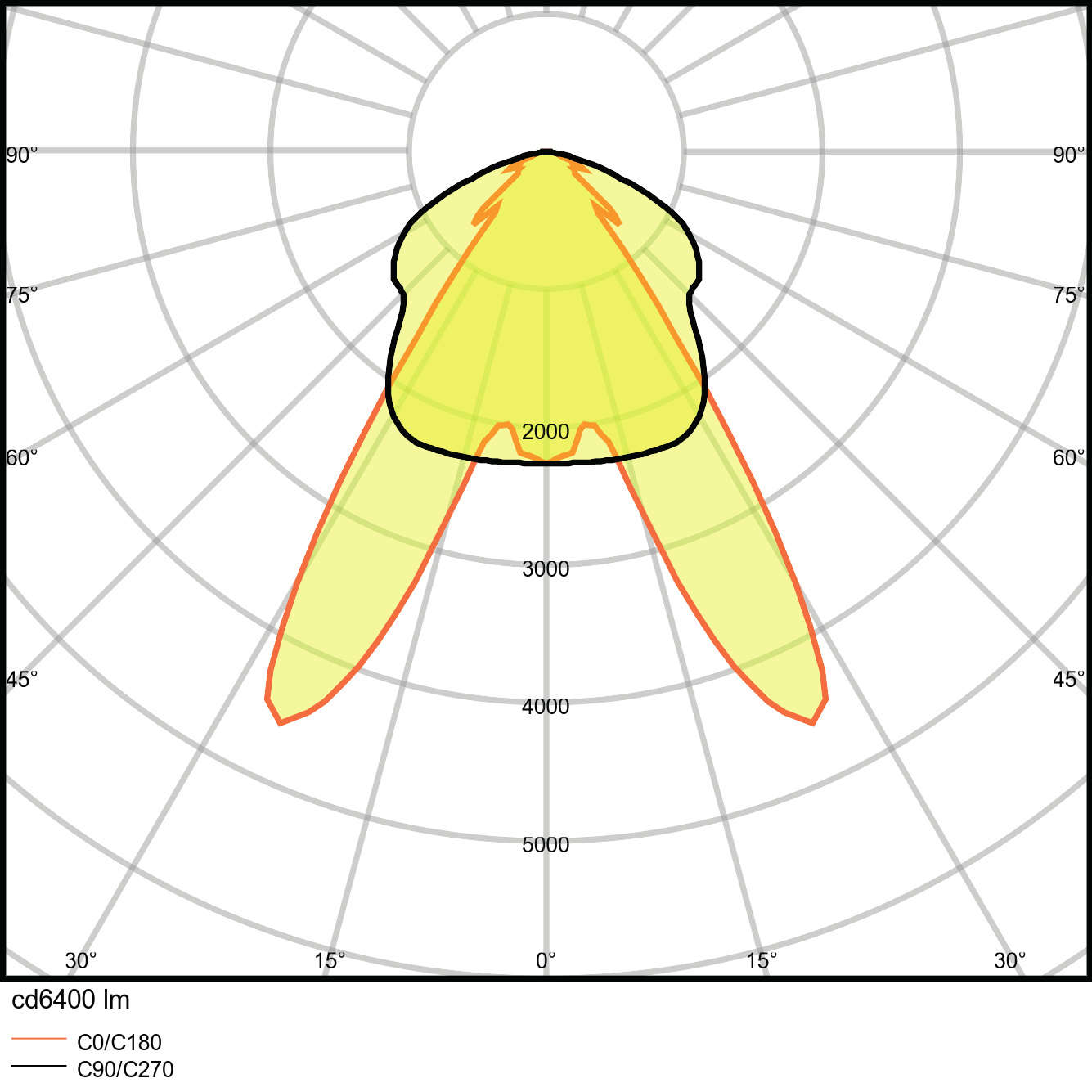

Light distribution
Double asymmetrical
Light emission
direct
Color consistency (McAdam ellipse)
SDCM3
Rated service life L70/B50 at 25 °C
75.000 h
Rated service life L80/B10 at 25 °C
50.000 h
Protection class (IP)
IP20
Protection class
I
Max. System performance
53,00 W
Rated luminous flux according to IEC 62722-2-1
6.400 lm
Luminaire luminous efficacy
120 lm/W
Color temperature
3.000,00 K
Color rendering index CRI
80-89
Power factor
0,95
Width
71,00 mm
Height/depth
53,00 mm
Length
1.534 mm
Type of wiring
Suitable for through-wiring
Number of poles
5
Connection type
other
With illuminant
Yes
With control gear
Yes
DALI dimming
Yes
Country of origin
Germany (DE)
Statistische Warennummer
Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)
REACH Indicator
No
