02-4058075108844
31. October 2024
02-4058075109582
31. October 2024
02-4058075109049
For further information, please refer to the data sheet!Minimum order quantity
4 pieces
Order step
4 pieces
Weight
3,6 kg
Product group
Pendant light (EC001743)
Dimming DALI-2
Yes
Constant luminous flux control
No
Adjustable beam angle
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Light source
LED not replaceable
Suitable for number of light sources
0
Version
Without
Material of the housing
Aluminum
Housing color
white
Design of the grid
other
Voltage type
AC
Nominal voltage
220 – 240 V
Rated current
320 mA
LED rated current with constant current
320 mA
Without dimming function
No
Light distributor
Focus lens
Reflector
Without

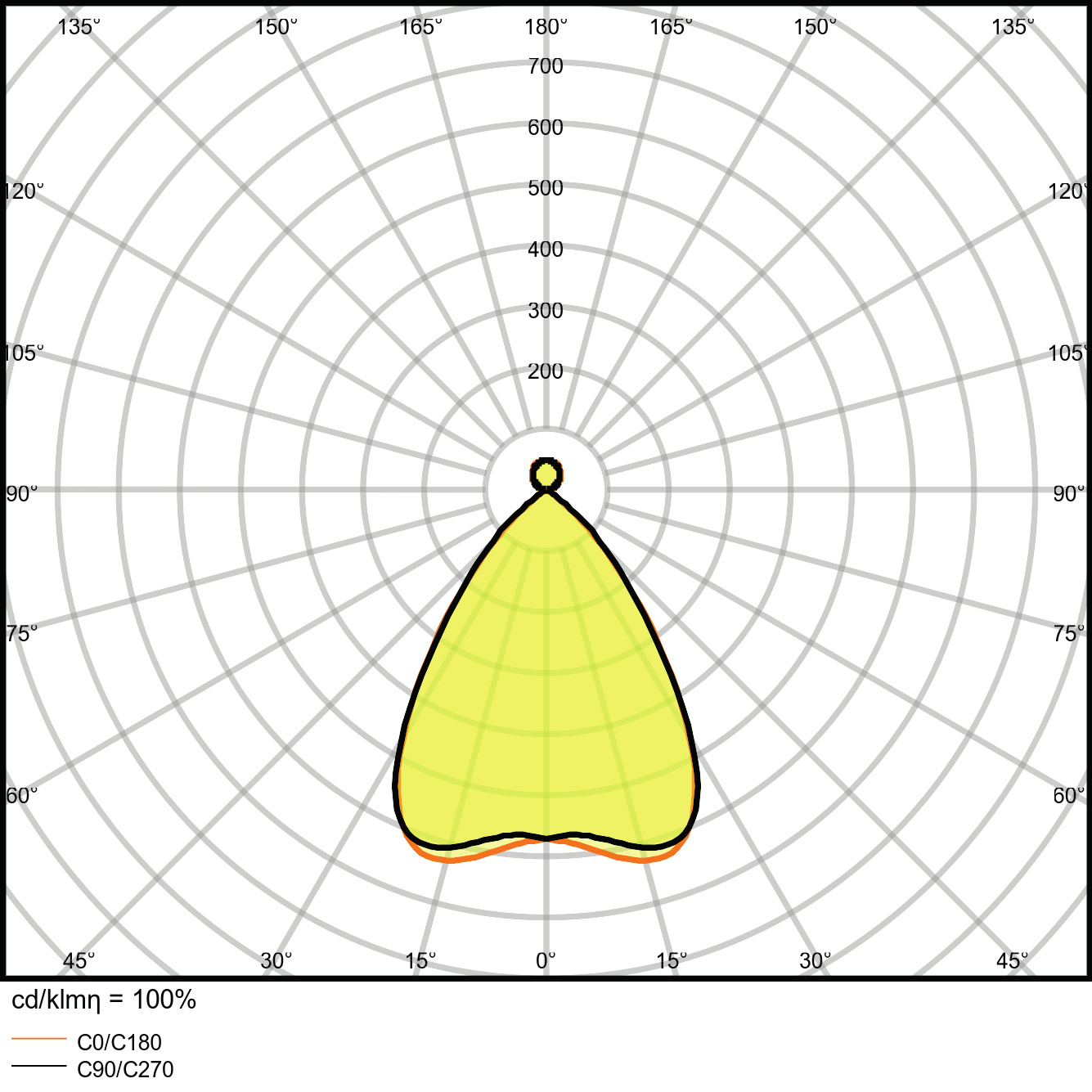

Light distribution
symmetrical
Color consistency (McAdam ellipse)
SDCM3
Light emission
direct/indirect
Direct/indirect components separately adjustable
No
Rated service life L70/B50 at 25 °C
60.000 h
Rated service life L80/B10 at 25 °C
50.000 h
Protection class (IP)
IP20
Impact resistance
IK06
Protection class
I
Max. System performance
56,00 W
Rated luminous flux according to IEC 62722-2-1
6.150 lm
Luminaire luminous efficacy
110 lm/W
Color temperature
3.000,00 K
Color rendering index CRI
80-89
Width
120,00 mm
Height/depth
40,00 mm
Length
1.488 mm
With suspension
No

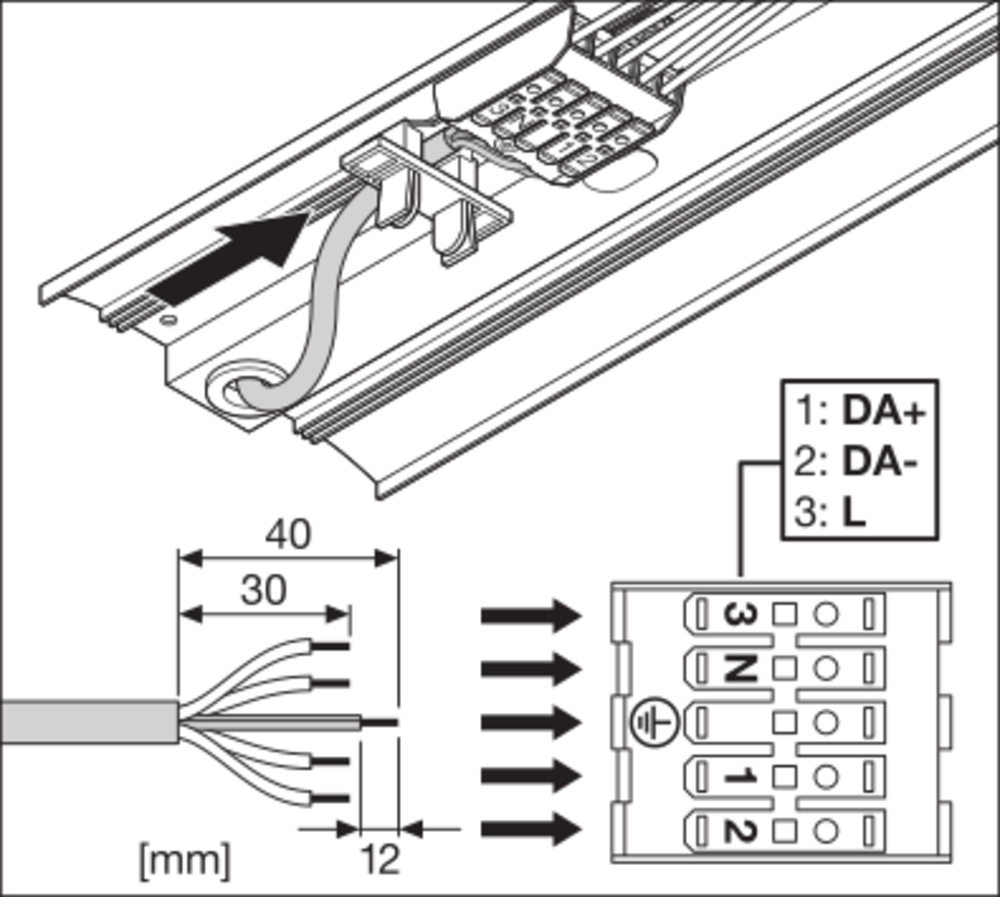

Type of wiring
Suitable for through-wiring
Number of poles
4
Connection type
Plug-in terminal
Suitable for VDU workstations according to EN 12464-1
Yes
With illuminant
Yes
With control gear
Yes
DALI dimming
Yes
Country of origin
China (CN)
Statistische Warennummer
Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)
REACH Indicator
Yes
