02-4058075109643
31. October 202402-4058075109704
31. October 2024
02-4058075109667
For further information, please refer to the data sheet!Minimum order quantity
4 pieces
Order step
4 pieces
Weight
2,9 kg
Product group
Ceiling/wall light (EC002892)
Dimming DALI-2
No
Max. Number of lights Circuit breaker C16
48
Adjustable beam angle
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Housing color
white
Max. System performance
25,00 W
Color temperature
4.000,00 K
Protection class (IP)
IP20
Without dimming function
Yes
Width
120,00 mm
Height/depth
40,00 mm
Length
1.488 mm
Suitable for number of light sources
0
Version
other
Material of the housing
Aluminum
Design of the grid
dull
Voltage type
AC
Nominal voltage
220 – 240 V
Rated current
140 mA
Operating device
EVG
Light distributor
Focus lens
Color consistency (McAdam ellipse)
SDCM3
Light emission
direct
Rated service life L70/B50 at 25 °C
60.000 h
Rated service life L80/B10 at 25 °C
50.000 h
Rated service life L90/B10 at 25 °C
35.000 h
Color rendering index CRI
80-89
Impact resistance
IK06
Protection class
I
Rated ambient temperature according to IEC 62722-2-1
-20 – 45 °C
Luminaire luminous efficacy
125 lm/W
Rated luminous flux according to IEC 62722-2-1
3.300 lm
Light source
LED not replaceable

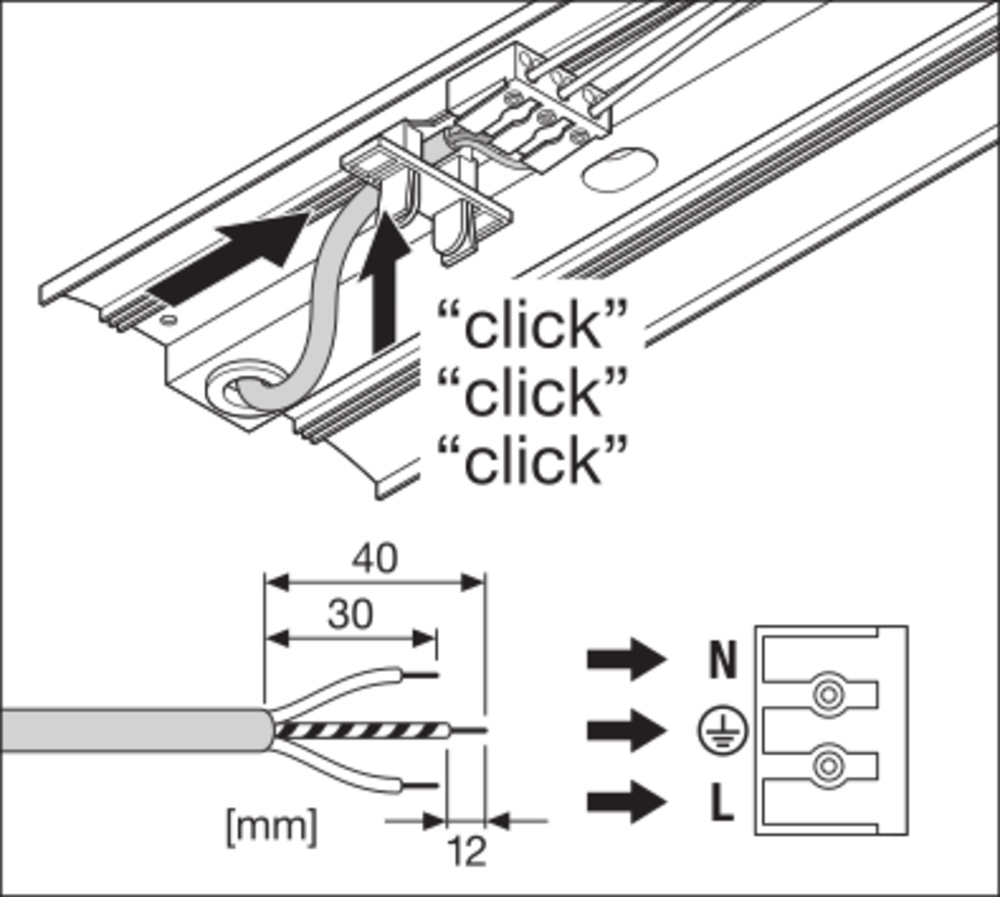

Type of wiring
Suitable for through-wiring
Number of poles
2
Connection type
Plug-in terminal
Distortion factor (THD)
18
Photobiological safety according to EN 62471
RG1

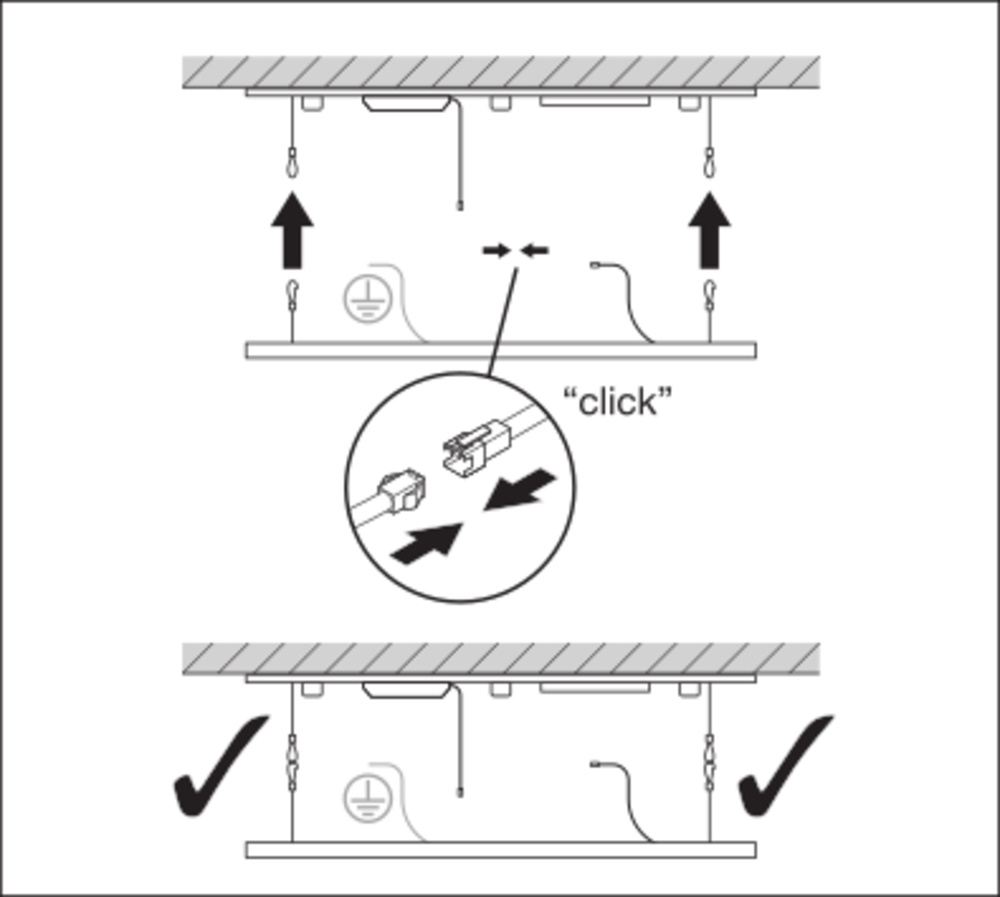

Suitable for pendant suspension
Yes

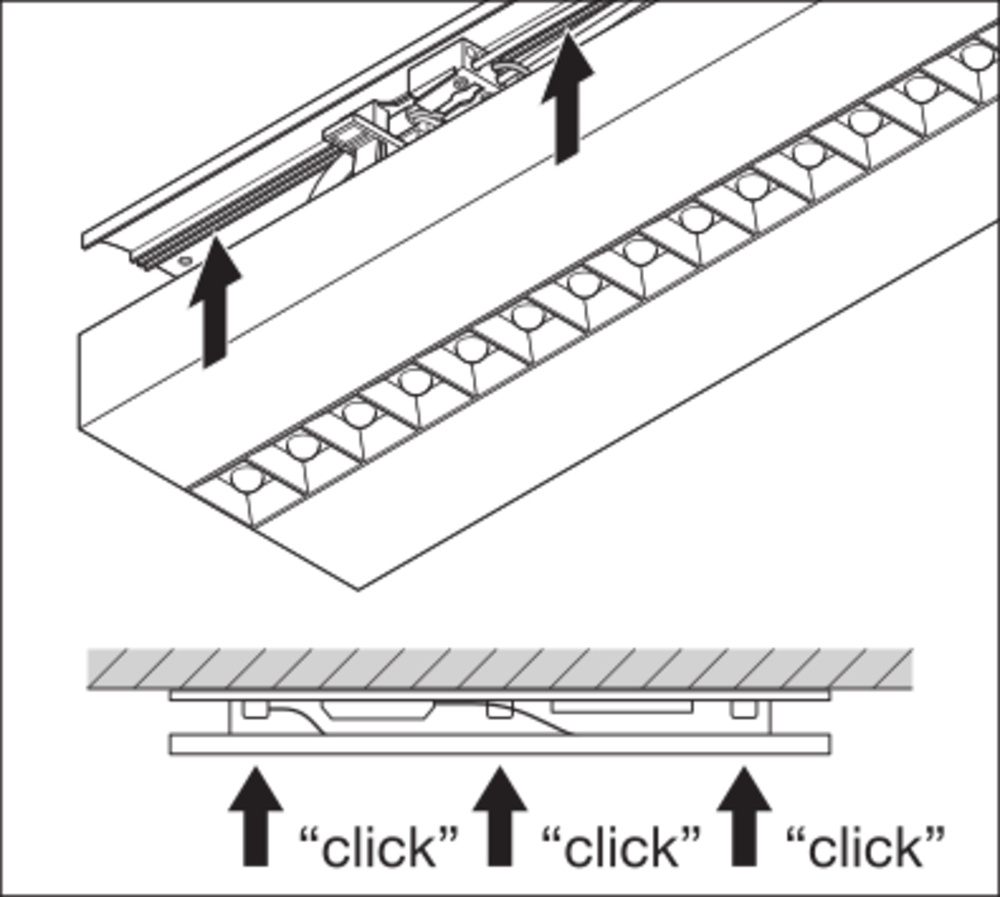

Suitable for ceiling mounting
Yes
Suitable for surface mounting
Yes
With illuminant
Yes
With control gear
Yes
Suitable for VDU workstations according to EN 12464-1
Yes
Country of origin
China (CN)
Statistische Warennummer
Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)
REACH Indicator
No
