02-4058075113961
31. October 2024
02-4058075114029
31. October 2024
02-4058075113985
For further information, please refer to the data sheet!Minimum order quantity
4 pieces
Order step
4 pieces
Weight
2,7 kg
Product group
Downlight/spotlight/floodlight (EC001744)
Suitable for wall mounting
No
Dimming DALI-2
No
Constant luminous flux control
No
Adjustable beam angle
No
Max. Number of lights Circuit breaker C16
20
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
Light source
LED not replaceable
Suitable for number of light sources
0
Version
Without
Material of the housing
Aluminum
Surface protection
powder-coated
Housing color
white
Brushed surface
No
Voltage type
AC
Nominal voltage
220 – 240 V
LED rated current with constant current
270 mA
Operating device
LED control gear, current-controlled
Without dimming function
Yes
Reflector
high gloss
Light distributor
Reflector
Light distribution
symmetrical
Light emission
direct
Rated service life L70/B50 at 25 °C
50.000 h
Rated service life L80/B10 at 25 °C
45.000 h
Protection class (IP)
IP20
Impact resistance
IK03
Protection class
II
Rated ambient temperature according to IEC 62722-2-1
-10 – 40 °C
Color temperature
4.000,00 K
Luminous flux
2,00 – 2.700,00 lm
Rated luminous flux according to IEC 62722-2-1
2 lm
Power factor
0,90
Width
173,00 mm
Height/depth
250,00 mm
Length
330 mm

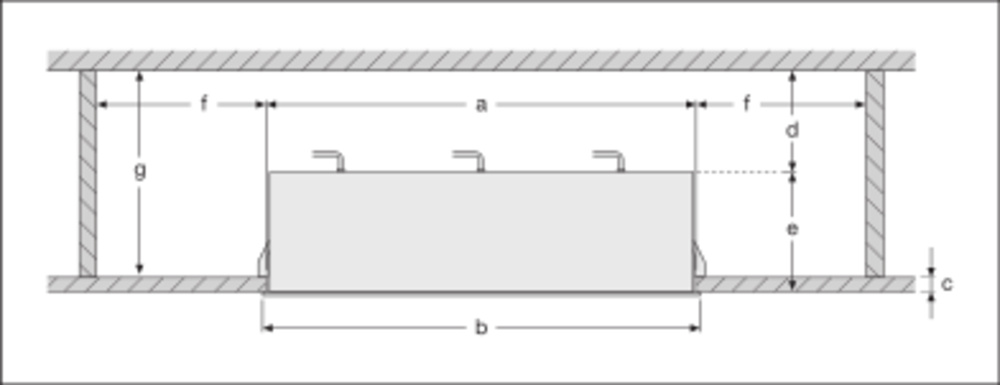

Installation width
160 mm
Installation height/depth
250 mm
Installation length
320 mm
Type of wiring
Conclusion
Number of poles
2
Luminaire luminous efficacy
90 lm/W
Photobiological safety according to EN 62471
RG1
Color consistency (McAdam ellipse)
SDCM4
Suitable for surface mounting
Yes
Suitable for recessed mounting
Yes
Suitable for ceiling mounting
Yes
With illuminant
Yes
With control gear
Yes
Country of origin
China (CN)
Statistische Warennummer
Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)
REACH Indicator
Yes
