LINEAR ULTRA OUTPUT 1500 60 W 4000 K
31. October 2024
Einbaustrahler, rund, feuerbeständig, dimmbar
31. October 2024
Einbaustrahler, rund, dimmbar
For further information, please refer to the data sheet!Weight
0,268 kg
Minimum order quantity
27 pieces
Order step
27 pieces
Weight
0,268 kg
Product group
Downlight/spotlight/floodlight (EC001744)
Suitable for wall mounting
No
Dimming DALI-2
No
Constant luminous flux control
No
Adjustable beam angle
No

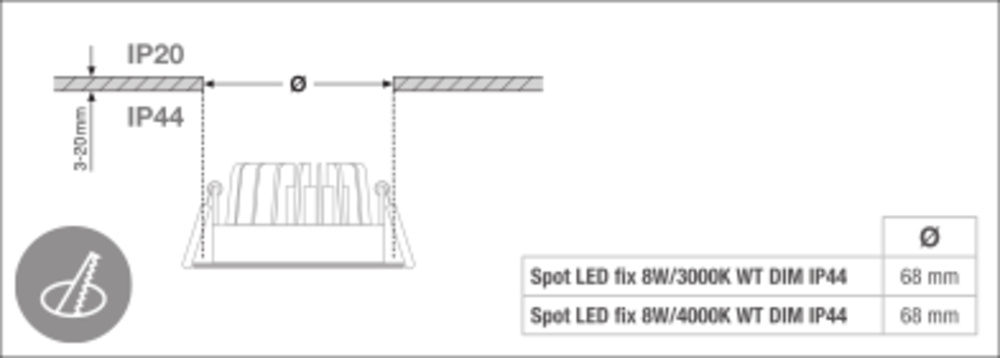

Installation diameter
68 mm
Max. Number of lights Circuit breaker C16
200
IFTTT support available
Yes
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
Light source
LED not replaceable
Suitable for number of light sources
0
Version
Without
Material of the housing
Aluminum
Surface protection
powder-coated
Housing color
silver
Brushed surface
Yes
Voltage type
AC
Nominal voltage
220 – 240 V
LED rated current with constant current
170 mA
Operating device
LED control gear, current-controlled
Without dimming function
No
Reflector
Without
Light distributor
Focus lens
Light distribution
symmetrical
Light emission
direct
Rated service life L70/B50 at 25 °C
50.000 h
Rated service life L80/B10 at 25 °C
40.000 h
Protection class (IP)
IP44
Impact resistance
IK06
Protection class
II
Rated ambient temperature according to IEC 62722-2-1
-20 – 45 °C
Max. System performance
8 W
Color temperature
4.000 K
Luminous flux
670 lm
Rated luminous flux according to IEC 62722-2-1
670 lm
Height/depth
51 mm
Outer diameter
81 mm
Installation height/depth
90 mm
Type of wiring
Conclusion
Number of poles
2
Luminaire luminous efficacy
80 lm/W
Photobiological safety according to EN 62471
RG0
Color consistency (McAdam ellipse)
SDCM4
Suitable for surface mounting
Yes
Suitable for recessed mounting
Yes
Suitable for ceiling mounting
Yes
With illuminant
Yes
With control gear
Yes
Dimming depending on the control gear
Yes
Dimming phase cut-off
Yes
Phase control dimming
Yes
Country of origin
China (CN)
Statistische Warennummer
Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)
REACH Indicator
No
Datenblatt
Geeignet für Anbaumontage
Yes
Suitable for pendant suspension
No
With motion detector
No
With light sensor
No
Suitable for number of light sources
0
Dimming 0-10 V
No
Dimming 1-10 V
No
DALI dimming
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimmung GPRS
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Bemessungsumgebungstemperatur nach IEC62722-2-1
-20 – 45 °C
Integrated emergency power supply
No
Suitable for VDU workstations according to EN 12464-1
No
Covering the luminaire with thermal insulation material possible
No
Rated current
170 mA
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
nicht erforderlich
Distortion factor (THD)
20
Light color
white
Color rendering index CRI
80-89
Power factor
0,9
Width
81 mm
Length
81 mm
Installation width
68 mm
Installation length
68 mm
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Operation via Bluetooth
No
