02-4058075201194
31. October 2024
02-4058075202610
31. October 2024
02-4058075201293
For further information, please refer to the data sheet!Minimum order quantity
4 pieces
Order step
4 pieces
Weight
3,7 kg
Product group
Ceiling/wall light (EC002892)
Dimming DALI-2
No
Max. Number of lights Circuit breaker C16
58
Adjustable beam angle
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Housing color
white
Max. System performance
33,00 W
Color temperature
3.000,00 K
Protection class (IP)
IP40
Without dimming function
Yes
Width
595,00 mm
Height/depth
50,00 mm
Length
595 mm
Suitable for number of light sources
0
Version
other
Installation length
575 mm
Installation width
575 mm
Surface protection housing
powder-coated
Installation height/depth
50 mm
Design of the grid
dull
Voltage type
AC
Nominal voltage
220 – 240 V
Rated current
180 mA
Operating device
EVG
Light distributor
Focus lens
Color consistency (McAdam ellipse)
SDCM3

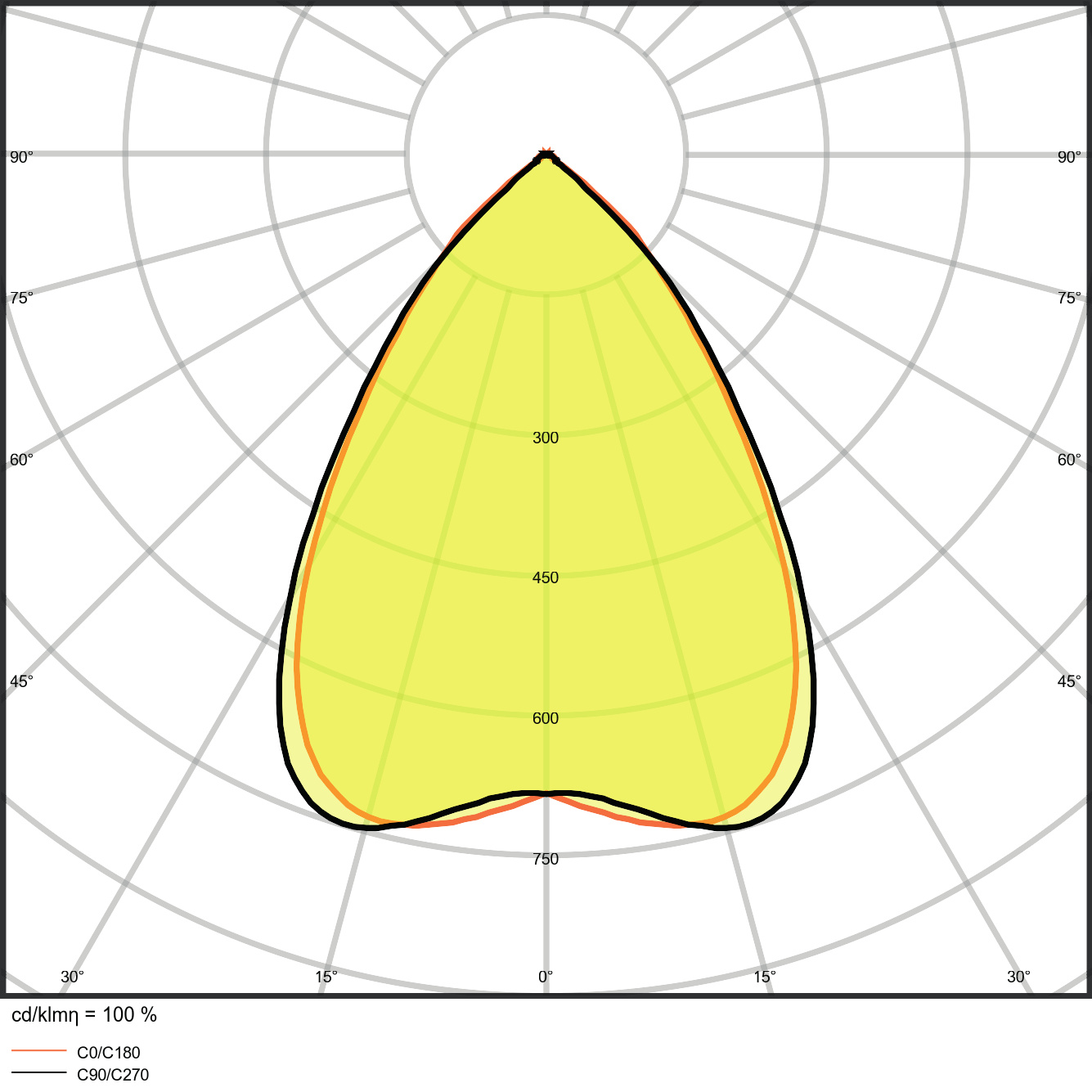

Light emission
direct
Rated service life L70/B50 at 25 °C
80.000 h
Rated service life L80/B10 at 25 °C
60.000 h
Rated service life L90/B10 at 25 °C
35.000 h
Color rendering index CRI
80-89
Impact resistance
IK08
Protection class
II
Rated ambient temperature according to IEC 62722-2-1
5 – 40 °C
Luminaire luminous efficacy
115 lm/W
Rated luminous flux according to IEC 62722-2-1
3.800 lm
Light source
LED not replaceable
Type of wiring
Conclusion
Number of poles
2

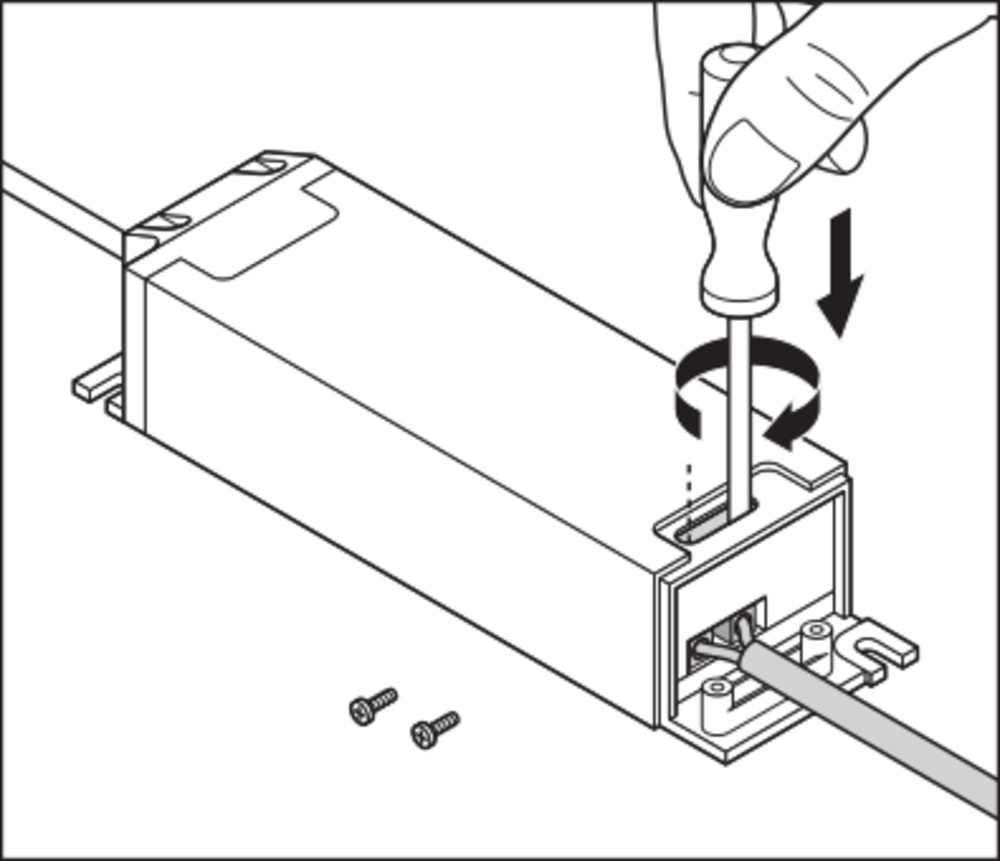

Connection type
Screw terminal
Photobiological safety according to EN 62471
RG1
Suitable for pendant suspension
Yes
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
Yes
Suitable for surface mounting
Yes
With illuminant
Yes
With control gear
Yes
Suitable for emergency lighting
Yes
Integrated emergency power supply
Yes
Suitable for VDU workstations according to EN 12464-1
Yes
Country of origin
China (CN)
Statistische Warennummer
Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)
REACH Indicator
Yes
