Feuchtraumleuchte, durchverdrahtet (L, N, E)

SKU: 02-4058075210127
Datasheet: Download PDF
For further information, please refer to the data sheet!

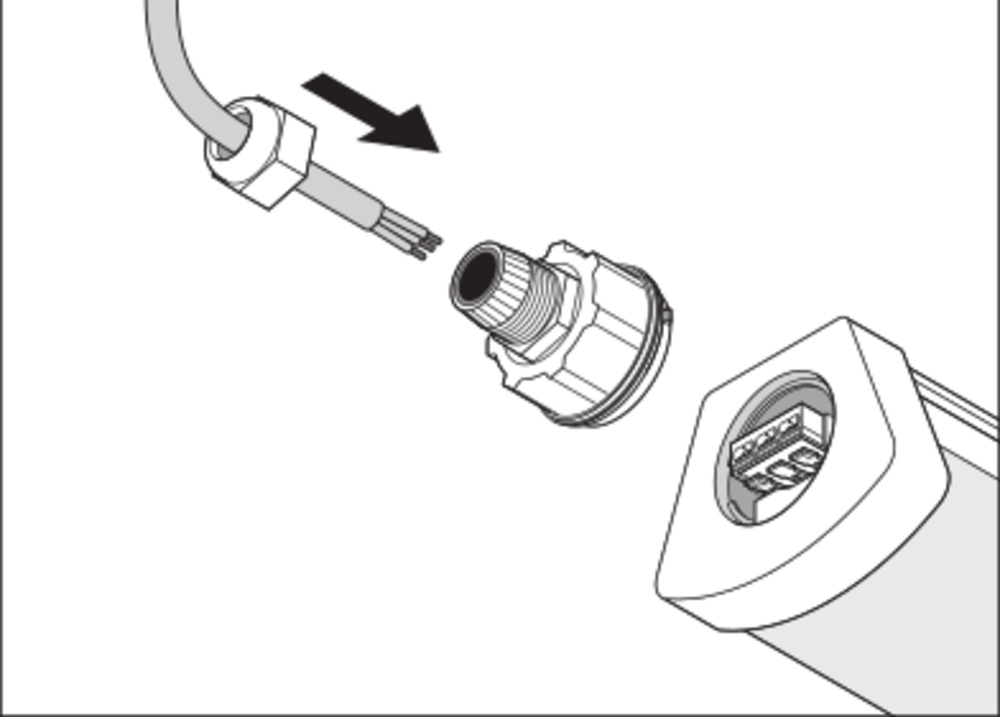

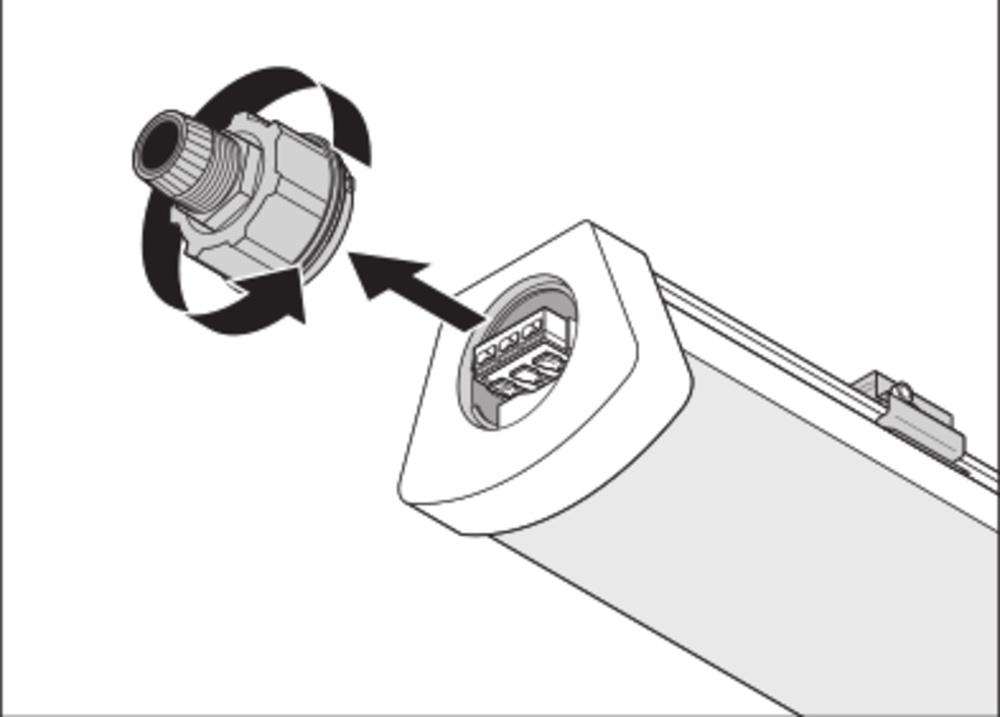

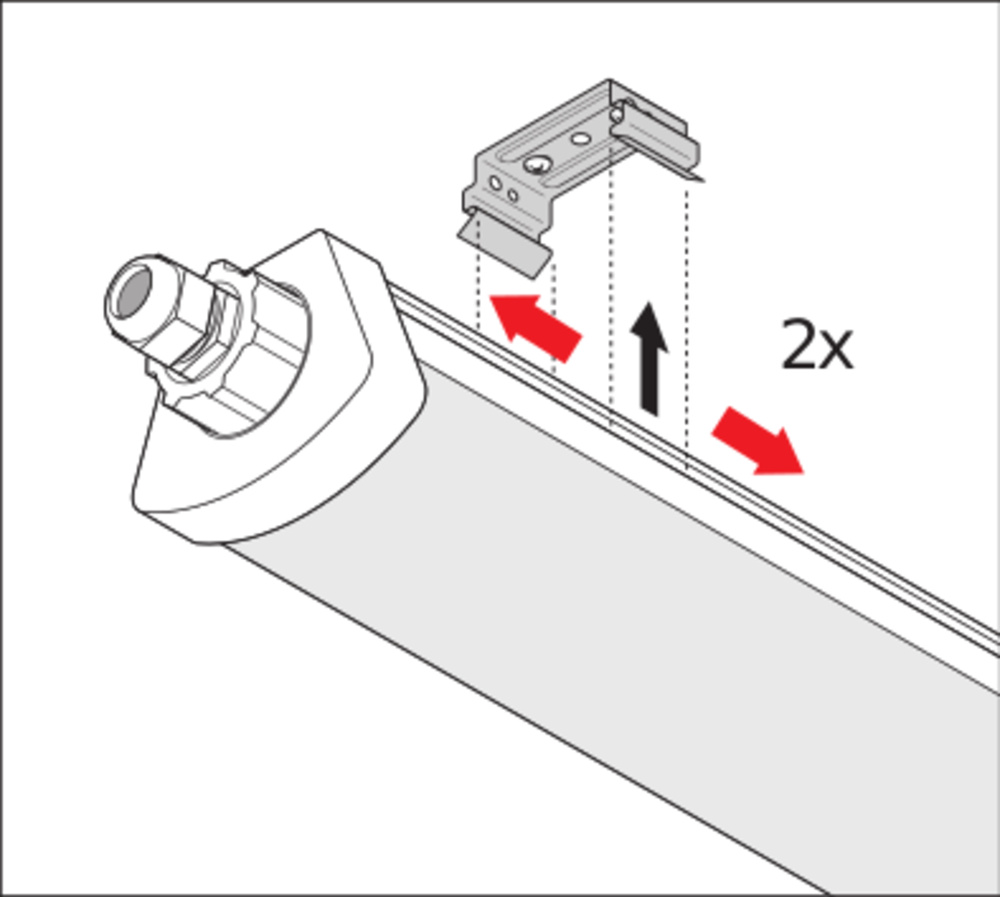

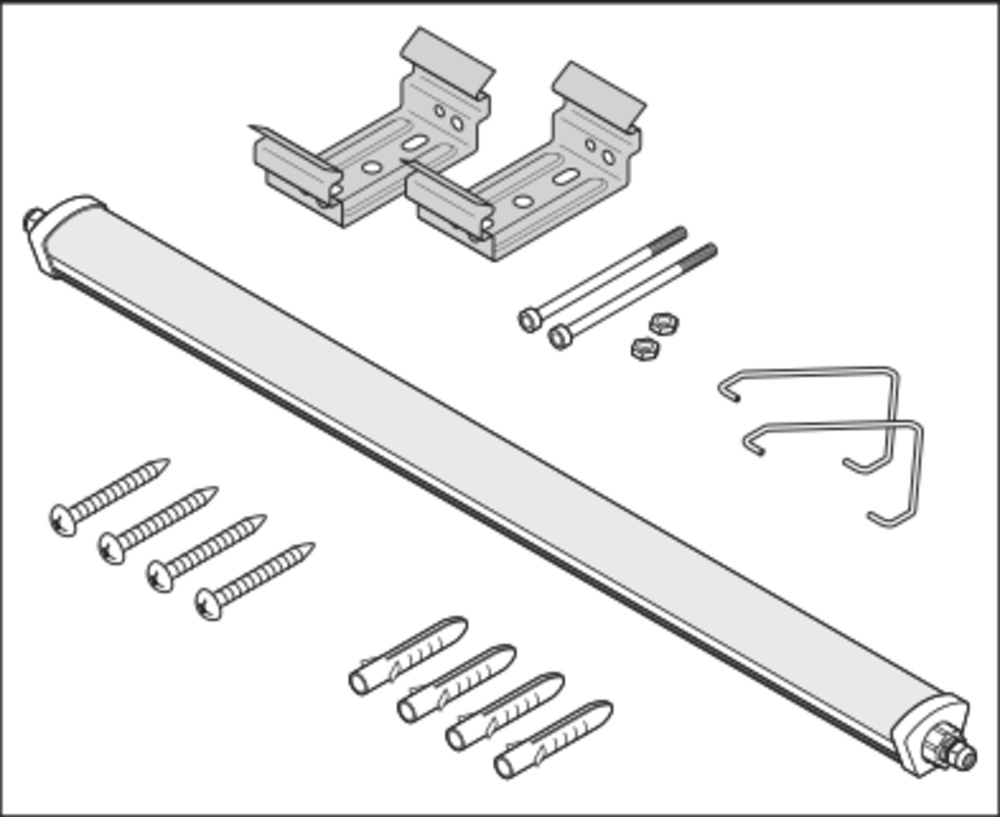

Feuchtraumleuchte, durchverdrahtet (L, N, E). Produkteigenschaften: Hohe Lichtausbeute: bis zu 120 lm/W. Schutzart: IP66. Ausstrahlungswinkel: 120°. Durchverdrahtung 3x1,5mm² bereits installiert. Gehäuse aus Polycarbonat. Produktvorteile: Gleichmäßige Lichtverteilung. Bis zu 50 % Energieersparnis (verglichen mit Leuchten, die Leuchtstofflampen verwenden). Einfache Installation dank Montageklammern, die frei an der Leuchte positioniert werden können. Einfacher Zugang zum Anschlussterminal dank Endkappe mit Twist-and-Lock-Mechanismus. Werkzeugloser elektrischer Anschluss dank Push-Button-Anschlussklemme. 5 Jahre Garantie. Anwendungsgebiete: Industrie- und Lagerareale. Parkplätze und Unterführungen. Garagen. Werkstätten, Fertigungsstraßen. Technische Ausstattung: Klammern aus Edelstahl und Sicherheitsschrauben enthalten. Montagezubehör enthalten (Abhängungs-Kit, Diebstahlschutz-Kit).
Weight
1,38 kg
Minimum order quantity

6 pieces

Order step

6 pieces

Weight

1,38 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

No

Dimming DALI-2

No

Max. Number of lights Circuit breaker C16

42

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Housing color

gray

Max. System performance

55 W

Color temperature

6.500 K

Protection class (IP)

IP66

Without dimming function

Yes

Width

86 mm

Height/depth

68 mm

Length

1.590 mm

Suitable for number of light sources

55

Version

other

Surface protection housing

untreated

Material of the housing

Plastic

Design of the grid

high gloss

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

300 mA

Operating device

EVG

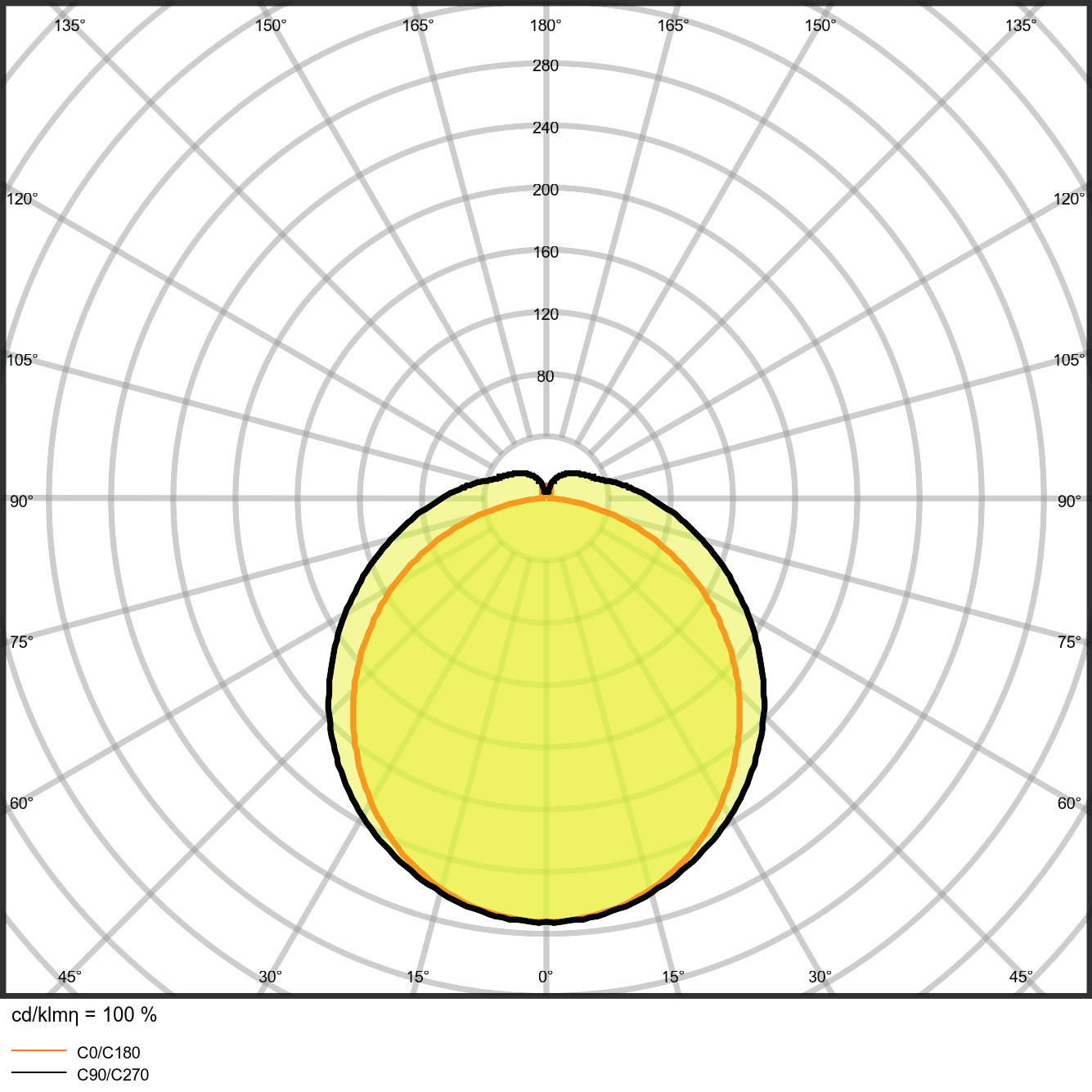

Light distributor

Diffuser lens/optics/panel

Color consistency (McAdam ellipse)

SDCM5

Light emission

direct

Rated service life L70/B50 at 25 °C

50.000 h

Rated service life L80/B10 at 25 °C

35.000 h

Rated service life L90/B10 at 25 °C

20.000 h

Impact resistance

IK08

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-35 – 50 °C

Luminaire luminous efficacy

120 lm/W

Rated luminous flux according to IEC 62722-2-1

6.700 lm

Light source

LED not replaceable

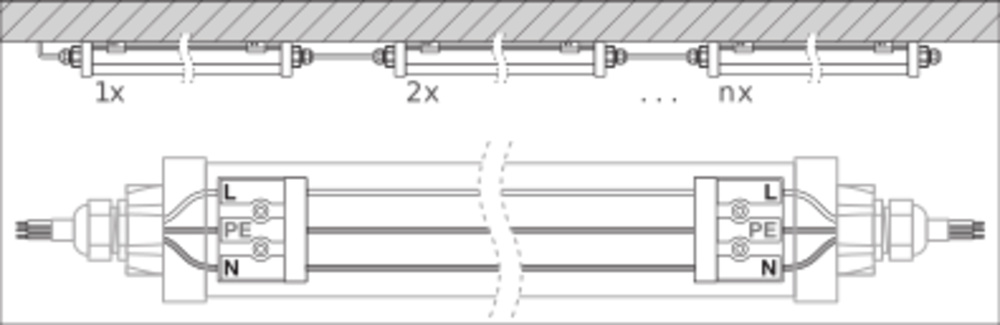

Type of wiring

with through-wiring

Number of poles

3

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for wall mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Chandeliers and other electric ceiling and wall lights, with LED light source, made of plastic or ceramic materials (94051140)

REACH Indicator

No

Datenblatt
4058075210127_DP_COMPACT_1500_55_W_6500K_IP66__GR_de.pdf4058075210127_tds_de.pdfasset-8626551-4.jpgasset-8626555-4.jpgasset-8626557-4.jpgasset-8626559-4.jpgasset-8626561-4.jpgasset-8441972.pdfasset-6645116.jpgasset-6644562.jpgasset-13070710-4.pdfasset-5650414.jpgasset-5650394.jpg
Suitable for pendant suspension

No

Suitable for recessed mounting

No

Geeignet für Anbaumontage

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Suitable for number of light sources

55

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimmung GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Dimming depending on the control gear

No

Bemessungsumgebungstemperatur nach IEC62722-2-1

-35 – 50 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

Mit Luftschlitzen

No

Operation via Bluetooth

No

Cover material

Plastic opal

Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015

nicht erforderlich

Color rendering index CRI

80-89

Power factor

0,9

Distortion factor (THD)

20

Erfüllt min. EIA Lebensdauerkriterium L90 (bei 50.000 h bei tq = 25 °C)

No
