LED STRIP PERFORMANCE-1000 PROTECTED -1000/865/5/IP66

14. November 2024

LED STRIP PERFORMANCE-1000 PROTECTED -1000/827/5/IP66

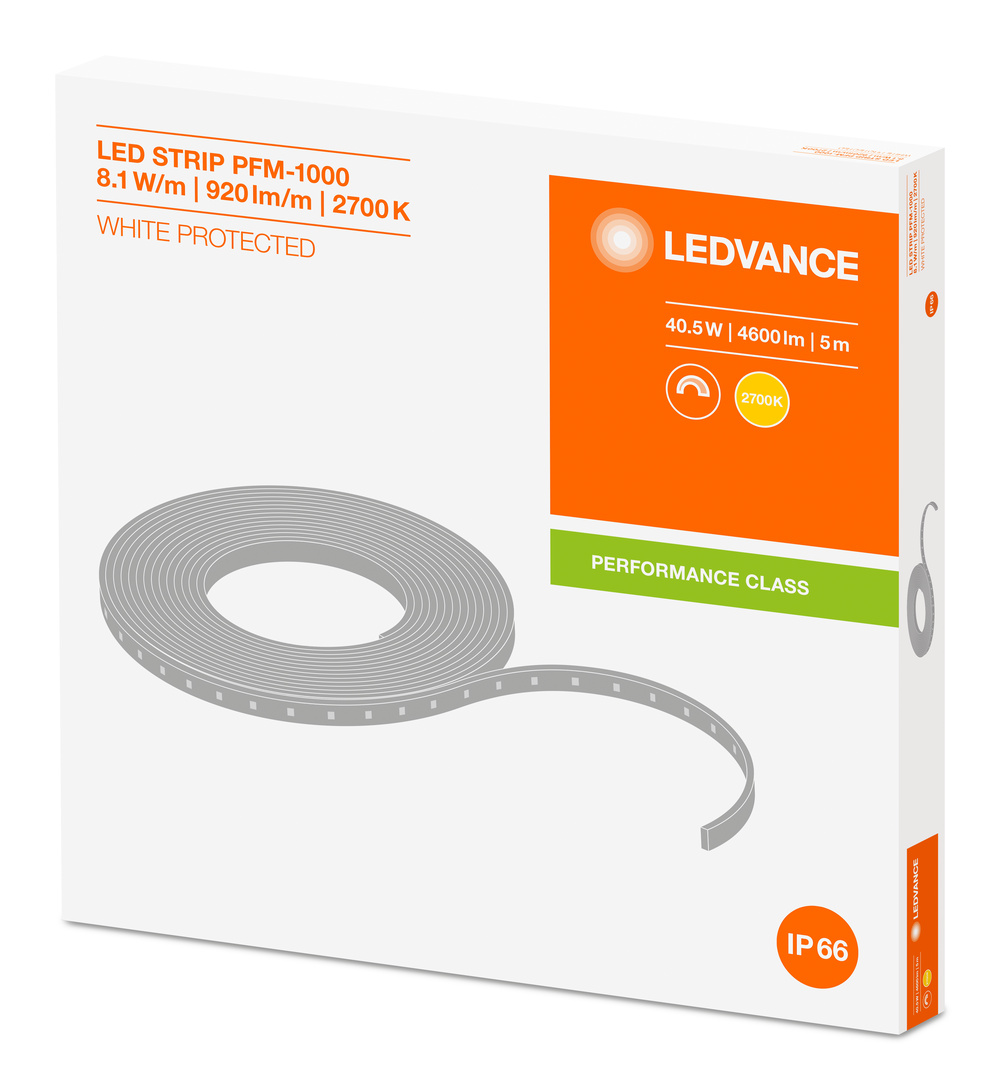

LED STRIP PERFORMANCE-1000 PROTECTED -1000/827/5/IP66

SKU: 02-4058075236042

Datasheet: Download PDF

For further information, please refer to the data sheet!

Powerful IP66 protected LED strips with 1000 lm/m for demanding applications. Product features: Flexible and divisible LED strip. Smallest divisible unit: 100 mm. Service life (L70/B50): up to 35,000 h at Tc max.: 75°C. Luminous flux: 1000 lm/m. Colour rendering index Ra: > 80. Initial colour consistency: ≤ 4 SDCM (threshold value unit). Wide range of colour temperatures: from warm white to cool daylight. Degree of protection: IP66. Dimmable with suitable drivers, see also <a href="http://www.ledvance.de/dim">www.ledvance.de/dim</a>). UV resistance (according to IEC 60068-2-5). Salt spray resistance (according to IEC 60068-2-52). Product advantages: Great design freedom thanks to long, flexible LED light strips. Easy installation, tool-free connection. Easy to mount on many smooth surfaces thanks to self-adhesive tape. Suitable for use in humid environments thanks to its high degree of protection. Maximum flexibility thanks to a large selection of accessories. Easy connection thanks to cables integrated on both sides. Areas of application: General indoor lighting. General outdoor lighting. Industry. Offices, sales and conference rooms. Architectural lighting. Technical equipment: joints, profiles and covers available for various mounting options. End caps must be ordered separately.

Minimum order quantity

10 pieces

Order step

10 pieces

Weight

0,285 kg

Product group

Light tube/tape (EC002706)

Adjustable luminous flux

stepless

Execution

Ribbon

Mounting type

Structure

Light source

LED not replaceable

Number of light sources per meter

Number of light sources per foot

21,00

Lamp wattage per meter

8,10 W

Luminous flux per meter

920 lm

Voltage type

Lamp voltage

24,00 V

Beam angle

105 °

Energy efficiency class of the permanently installed light source

A++, A+, A (LED)

Rated service life L70/B50 at 25 °C

35.000 h

Protection class (IP)

IP66

Protection class (NEMA)

Max. System performance

40,50 W

Color temperature

2.700,00 K

Width

10,00 mm

Height/depth

4,50 mm

Length

5.000 mm

Smallest bending radius

25,00 mm

Length of the individual sections

100,00 mm

With end piece

Yes

With connection set

With protective cover

Yes

Self-adhesive

Yes

Type of wiring

with through-wiring

Number of poles

Conductor cross-section

0,50 mm²

Connection type

Plug-in terminal

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode modules (LED modules) (85395100)

REACH Indicator
