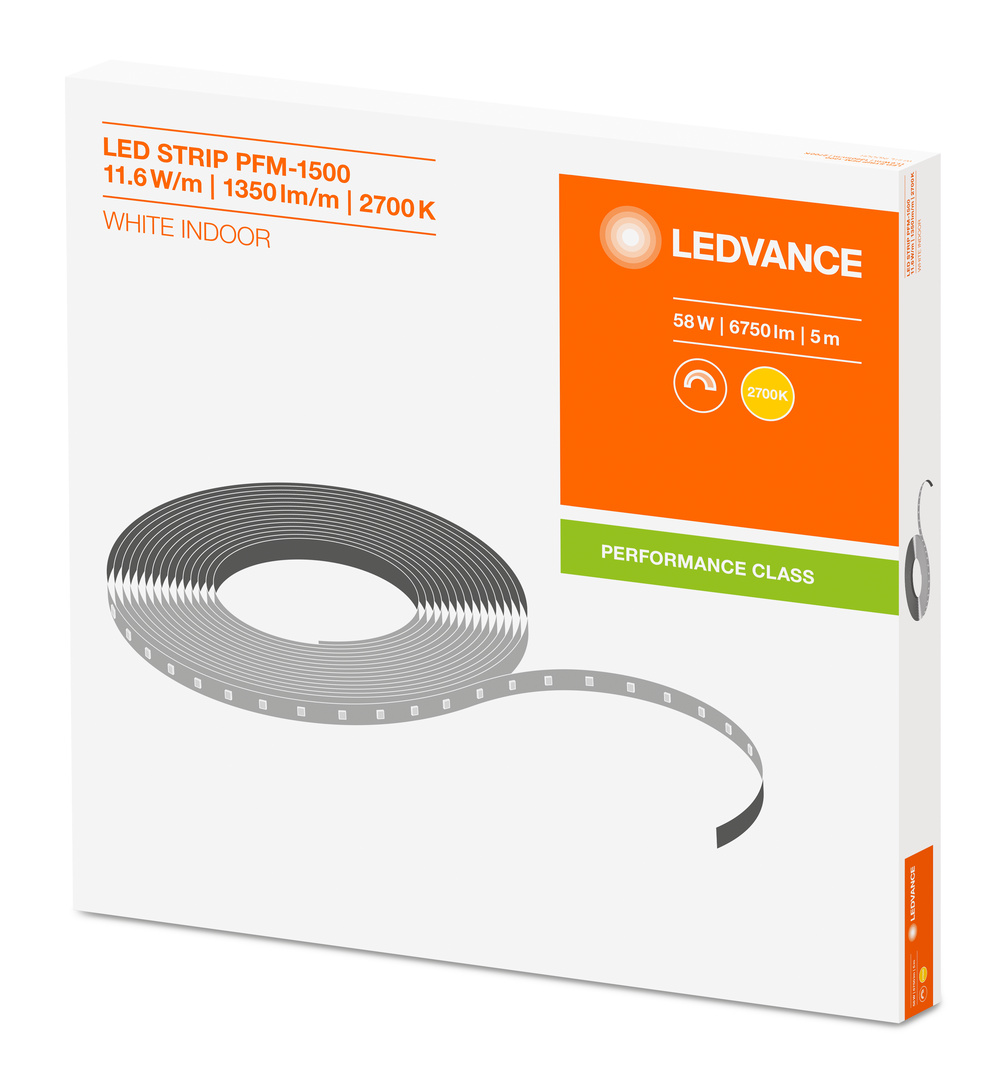

LED STRIP PERFORMANCE00 -1500/827/5

SKU: 02-4058075236141

Datasheet: Download PDF

For further information, please refer to the data sheet!

High-performance LED strips with 1500 lm/m for demanding applications. Product features: Flexible and divisible LED strip. Smallest divisible unit: 100 mm. Service life (L70/B50): up to 35,000 h at Tc max.: 75°C. Luminous flux: 1500 lm/m. Colour rendering index Ra: > 80. Initial colour consistency: ≤ 4 SDCM (threshold value unit). Wide range of colour temperatures: from warm white to cool daylight. Dimmable with suitable drivers, see also <a href="http://www.ledvance.de/dim">www.ledvance.de/dim</a>). Product advantages: Great design freedom thanks to long, flexible LED light strips. Easy installation, tool-free connection. Easy to mount on many smooth surfaces thanks to self-adhesive tape. Maximum flexibility thanks to a large selection of accessories. Easy connection thanks to cables integrated on both sides. Areas of application: General indoor lighting. Industry. Offices, sales and conference rooms. Architectural lighting. Technical equipment: joints, profiles and covers available for various mounting options.

Minimum order quantity

10 pieces

Order step

10 pieces

Weight

0,08 kg

Product group

Light tube/tape (EC002706)

Adjustable luminous flux

stepless

Execution

Ribbon

Mounting type

Structure

Light source

LED not replaceable

Number of light sources per meter

Number of light sources per foot

21,00

Lamp wattage per meter

11,60 W

Luminous flux per meter

1.350 lm

Voltage type

Lamp voltage

24,00 V

Energy efficiency class of the permanently installed light source

A++, A+, A (LED)

Rated service life L70/B50 at 25 °C

35.000 h

Protection class (IP)

IP00

Protection class (NEMA)

Max. System performance

58,00 W

Color temperature

2.700,00 K

Width

8,00 mm

Height/depth

1,40 mm

Length

5.000 mm

Smallest bending radius

25,00 mm

Length of the individual sections

100,00 mm

With end piece

With connection set

With protective cover

Self-adhesive

Yes

Type of wiring

with through-wiring

Number of poles

Conductor cross-section

0,50 mm²

Connection type

Plug-in terminal

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode modules (LED modules) (85395100)

REACH Indicator
