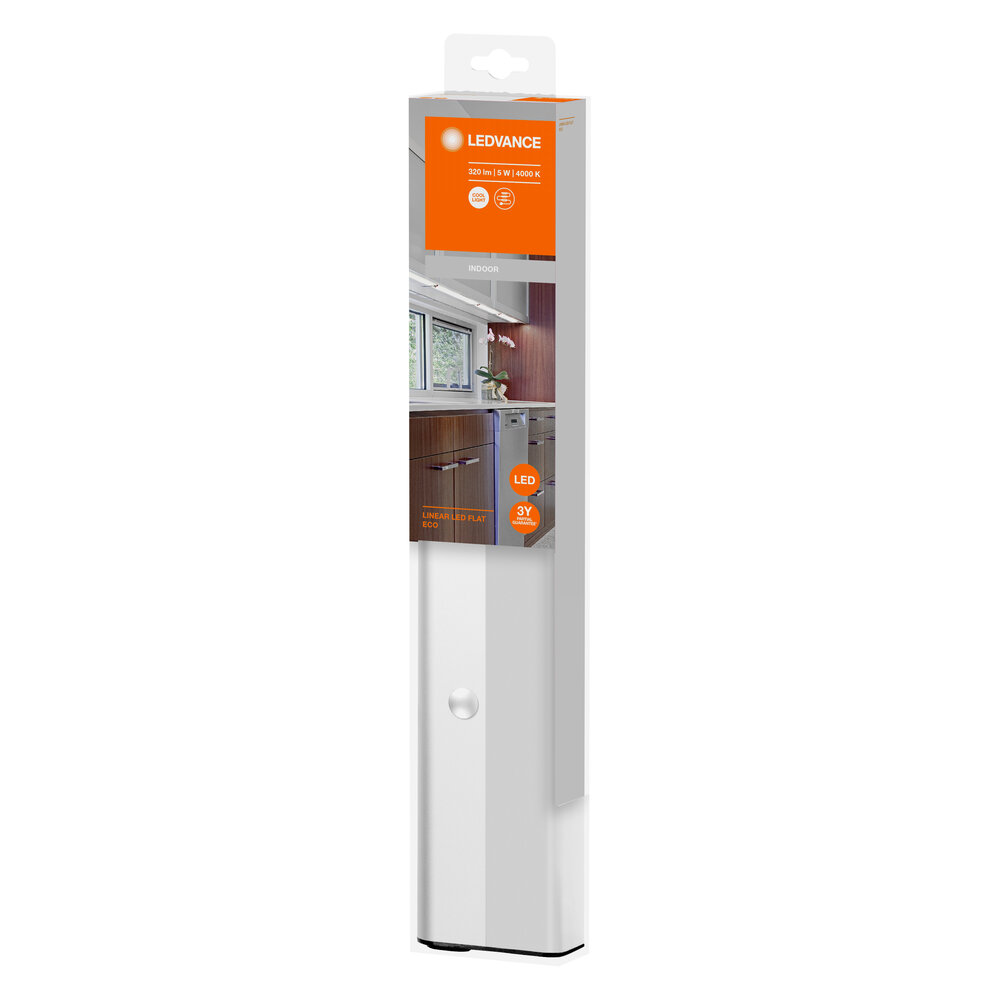

LinearLED Flat® Eco 6W 4000K

SKU: 02-4058075264328
For further information, please refer to the data sheet!
Flache Unterbauleuchte für Anbaumontage. Produktvorteile: Verkettung von bis zu 43 Leuchten (ECO Version) oder 18 Leuchten (Sensor Version). Diverses Zubehör enthalten: Kabeln und EU-Stecker. Anwendungsgebiete: Regalunterbaubeleuchtung.
Minimum order quantity

8 pieces

Order step

8 pieces

Weight

0,325 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

No

Dimming DALI-2

No

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Housing color

silver

Max. System performance

6,00 W

Color temperature

4.000,00 K

Protection class (IP)

IP20

Without dimming function

Yes

Width

67,00 mm

Height/depth

22,00 mm

Length

370 mm

Material of the housing

Aluminum

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

40 mA

Operating device

EVG

Light emission

direct

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Luminaire luminous efficacy

64 lm/W

Rated luminous flux according to IEC 62722-2-1

320 lm

Type of wiring

Conclusion

Number of poles

2

Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus anderen Stoffen als aus Kunststoffen (94054239)

REACH Indicator

No
