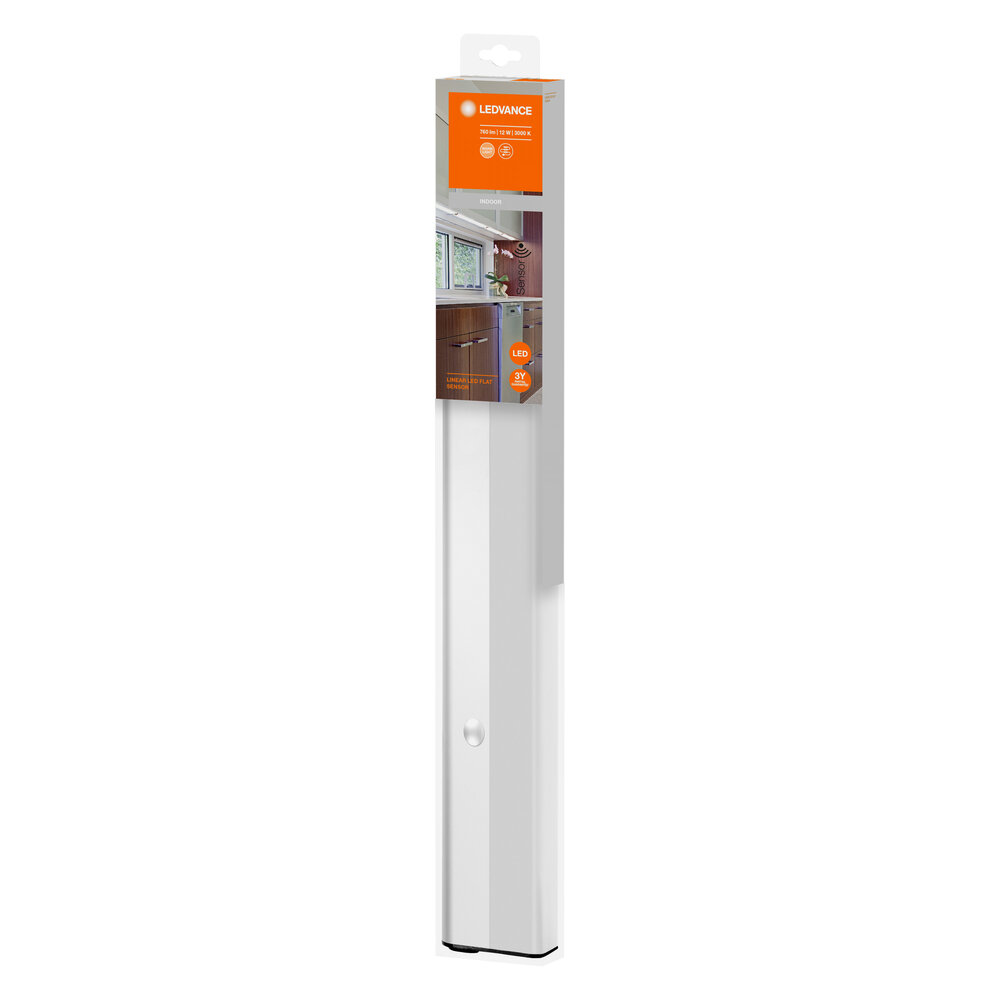

Flache Unterbauleuchte für Anbaumontage
31. October 2024Flache Unterbauleuchte für Anbaumontage
31. October 2024
Flache Unterbauleuchte für Anbaumontage
For further information, please refer to the data sheet!Weight
0,425 kg
Minimum order quantity
8 pieces
Order step
8 pieces
Weight
0,425 kg
Product group
Ceiling/wall light (EC002892)
Dimming DALI-2
No
Constant luminous flux control
No
Adjustable beam angle
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
Yes
Housing color
silver
Max. System performance
12 W
Color temperature
3.000 K
Protection class (IP)
IP20
Without dimming function
Yes
Width
67 mm
Height/depth
19 mm
Length
527 mm
Material of the housing
Aluminum
Voltage type
AC
Nominal voltage
220 – 240 V
Rated current
100 mA
Operating device
EVG
Light emission
direct
Protection class
II
Rated ambient temperature according to IEC 62722-2-1
-20 – 40 °C
Luminaire luminous efficacy
63 lm/W
Rated luminous flux according to IEC 62722-2-1
760 lm
Type of wiring
Conclusion
Number of poles
2
Suitable for wall mounting
Yes
Suitable for surface mounting
Yes
With illuminant
Yes
With control gear
Yes
With motion detector
Yes
Country of origin
China (CN)
Statistische Warennummer
andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus anderen Stoffen als aus Kunststoffen (94054239)
REACH Indicator
No
Datenblatt
Suitable for pendant suspension
No
Suitable for ceiling mounting
No
Suitable for recessed mounting
No
Geeignet für Anbaumontage
Yes
Suitable for strip light configuration
No
Suitable for VDU workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
DALI dimming
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimmung GPRS
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depending on the control gear
No
Bemessungsumgebungstemperatur nach IEC62722-2-1
-20 – 40 °C
Suitable for emergency lighting
No
Integrated emergency power supply
No
With light sensor
No
Covering the luminaire with thermal insulation material possible
No
Mit Luftschlitzen
No
Operation via Bluetooth
No
Cover material
Plastic opal
Color consistency (McAdam ellipse)
SDCM6
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
nicht erforderlich
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Light color
white
Color rendering index CRI
80-89
Power factor
0,5
Photobiological safety according to EN 62471
RG0
Kompatibel mit Casambi
No
Erfüllt min. EIA Lebensdauerkriterium L90 (bei 50.000 h bei tq = 25 °C)
No
