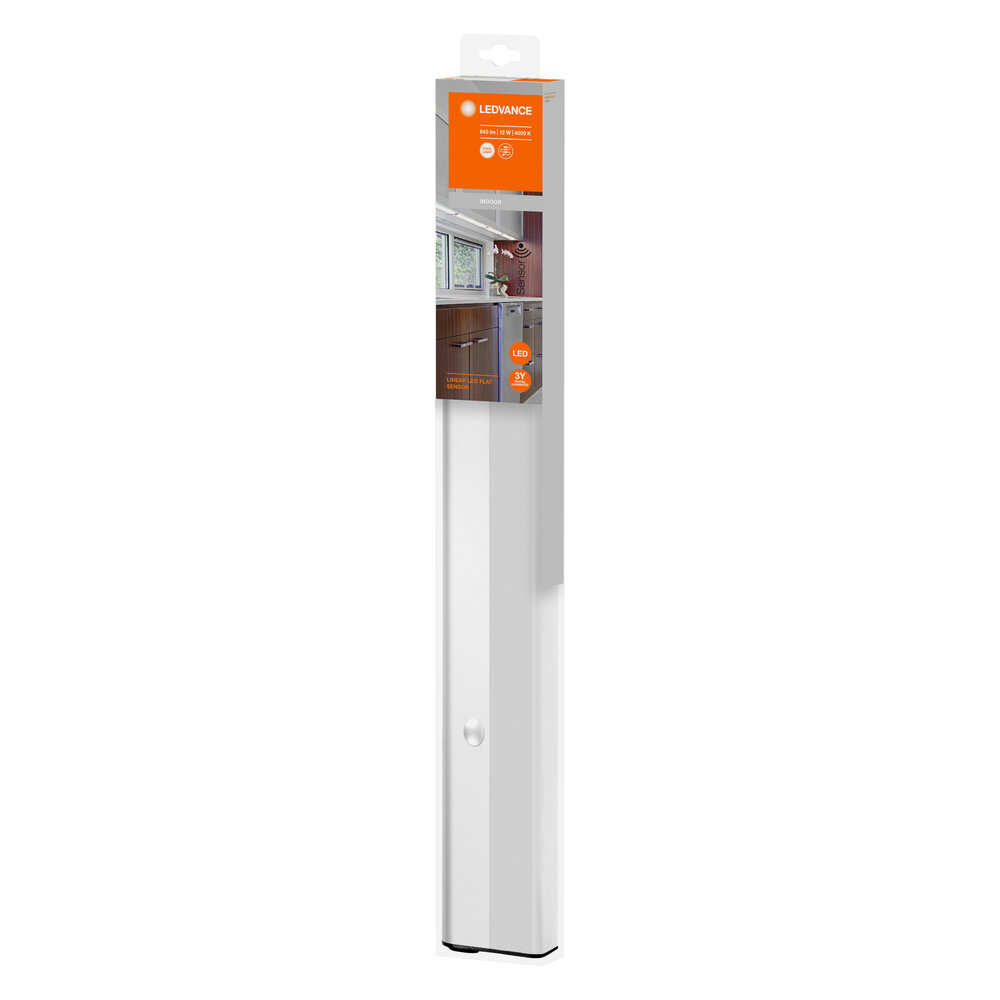

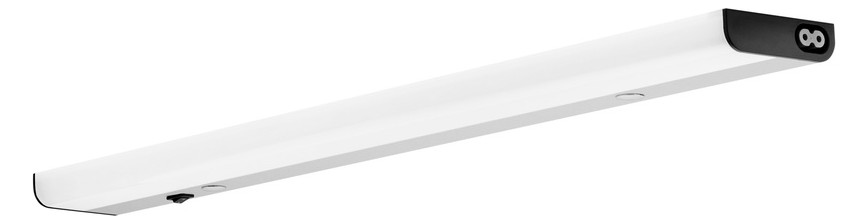

Flache Unterbauleuchte für Anbaumontage

SKU: 02-4058075264618
Datasheet: Download PDF
For further information, please refer to the data sheet!
Flache Unterbauleuchte für Anbaumontage. Produktvorteile: Verkettung von bis zu 43 Leuchten (ECO Version) oder 18 Leuchten (Sensor Version). Diverses Zubehör enthalten: Kabeln und EU-Stecker. Anwendungsgebiete: Regalunterbaubeleuchtung.
Weight
0,425 kg
Minimum order quantity

8 pieces

Order step

8 pieces

Weight

0,425 kg

Product group

Pendant light (EC001743)

Replaceable operating device

No

Dimming DALI-2

No

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Material of the housing

Aluminum

Housing color

silver

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

100 mA

LED rated current with constant current

100 mA

Without dimming function

Yes

Reflector

Without

Light emission

direct

Direct/indirect components separately adjustable

No

Protection class (IP)

IP20

Protection class

II

Max. System performance

12 W

Rated luminous flux according to IEC 62722-2-1

840 lm

Luminaire luminous efficacy

70 lm/W

Color temperature

4.000 K

Width

67 mm

Height/depth

19 mm

Length

527 mm

With suspension

No

Type of wiring

Conclusion

Number of poles

2

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus anderen Stoffen als aus Kunststoffen (94054239)

REACH Indicator

No

Datenblatt
4058075264618_Linear_LED_Flat_Sensor_12W_4000K_de.pdf4058075264618_tds_de.pdfasset-13048078.pdfasset-13082607.pdfasset-6253840.jpg
Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Programmable dimming

No

Dimming DSI

No

RF dimming

No

Dimming potentiometer (device-integrated)

No

Dimmung GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Suitable for emergency lighting

No

Integrated emergency power supply

No

Cover material

Plastic opal

Color consistency (McAdam ellipse)

SDCM6

Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015

nicht erforderlich

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Light color

white

Color rendering index CRI

80-89

Power factor

0,5

Operation via Bluetooth

No
