For further information, please refer to the data sheet!Minimum order quantity
4 pieces
Order step
4 pieces
Weight
1,66 kg
Product group
Gear tray for continuous-row lighting system (EC000986)
Adjustable beam angle
No
Light source
LED not replaceable
Suitable for number of light sources
0
Version
Without
Housing color
white
Voltage type
AC
Nominal voltage
220 – 240 V
Rated current
190 mA
LED rated current with constant current
190 mA
Operating device
Electronic transformer
Without dimming function
Yes
Light distributor
Focus lens
Reflector
Without

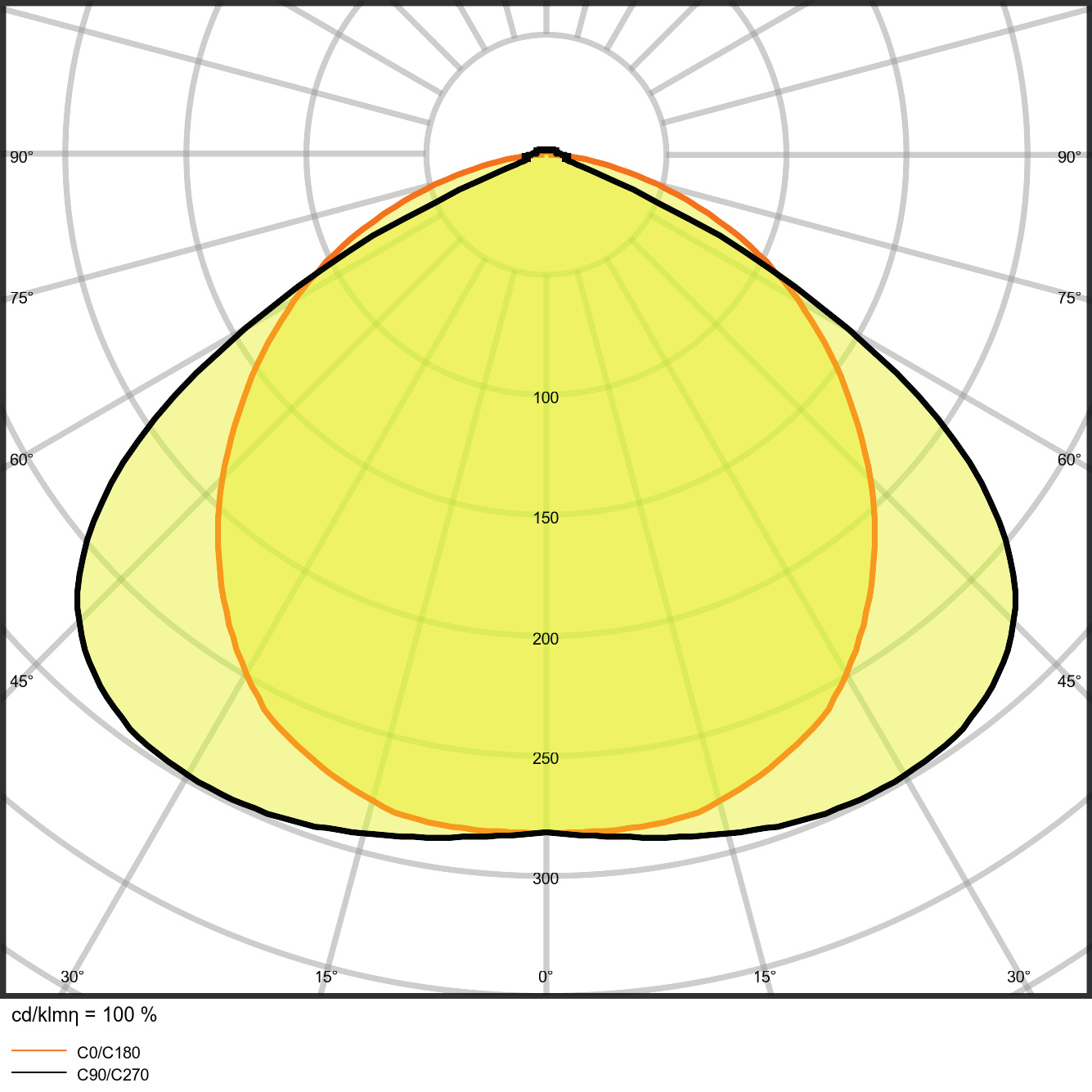

Light distribution
symmetrical
Light emission
direct
Color consistency (McAdam ellipse)
SDCM3
Rated service life L70/B50 at 25 °C
65.000 h
Rated service life L80/B10 at 25 °C
60.000 h
Protection class (IP)
IP20
Protection class
I
Max. System performance
35,00 W
Rated luminous flux according to IEC 62722-2-1
5.600 lm
Luminaire luminous efficacy
160 lm/W
Color temperature
4.000,00 K
Color rendering index CRI
80-89
Width
66,80 mm
Height/depth
39,40 mm
Length
1.500 mm
Type of wiring
Suitable for through-wiring
Number of poles
2
Connection type
other
With illuminant
Yes
With control gear
Yes
Country of origin
China (CN)
Statistische Warennummer
Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)
REACH Indicator
No
