02-4058075293496
31. October 2024
02-4058075300705
31. October 2024
02-4058075296091
For further information, please refer to the data sheet!Minimum order quantity
10 pieces
Order step
10 pieces
Weight
0,064 kg

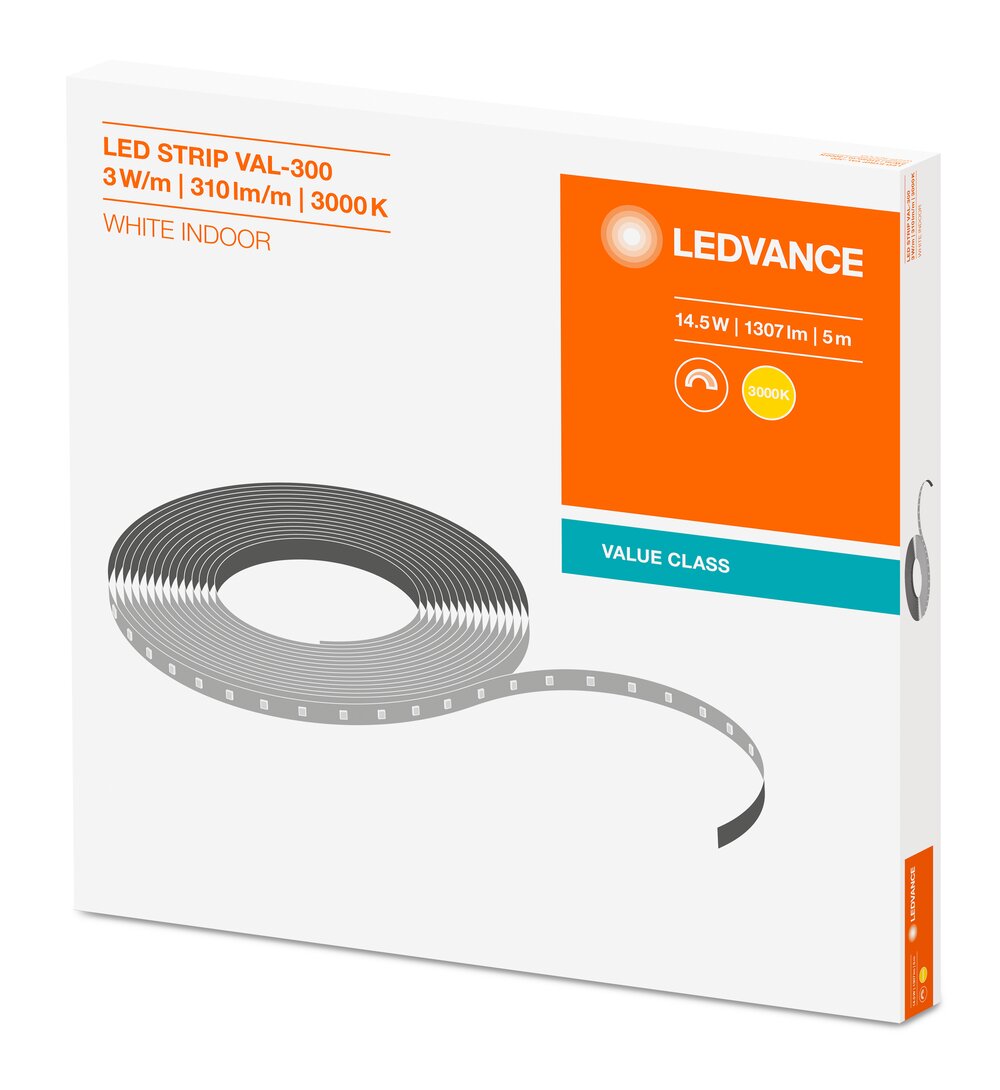

Product group
Light tube/tape (EC002706)
Execution
Ribbon
Mounting type
Structure
Light source
LED not replaceable
Number of light sources per meter
60
Number of light sources per foot
18,00
Lamp wattage per meter
3,00 W
Luminous flux per meter
310 lm
Voltage type
DC
Lamp voltage
24,00 V

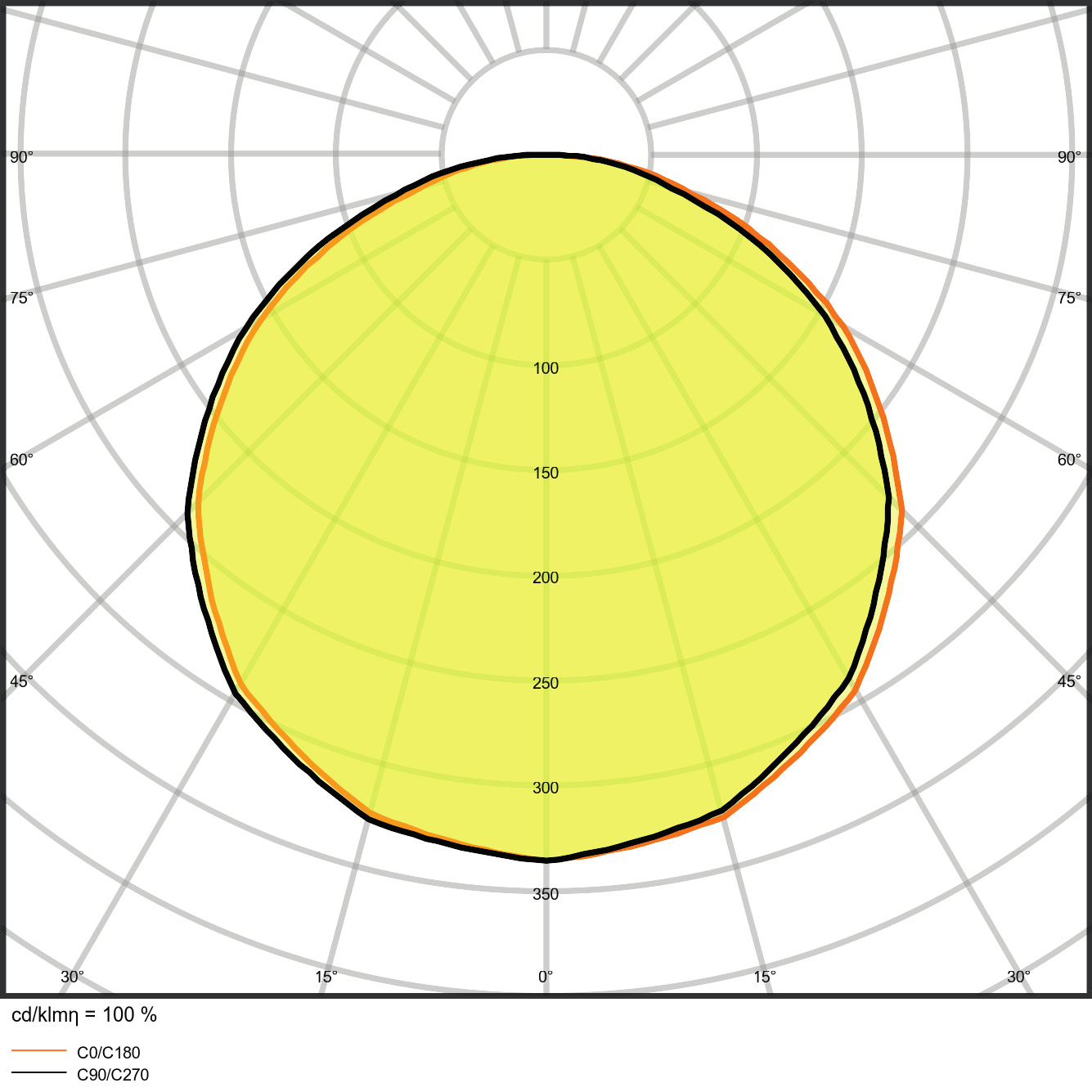

Beam angle
115 °
Energy efficiency class of the permanently installed light source
A++, A+, A (LED)
Rated service life L70/B50 at 25 °C
20.000 h
Protection class (IP)
IP00
Protection class (NEMA)
1
Max. System performance
14,50 W
Color temperature
3.000,00 K
Power factor
1,00
Width
8,00 mm
Height/depth
1,30 mm
Length
5.000 mm
Smallest bending radius
30,00 mm
Length of the individual sections
100,00 mm
With end piece
No
With connection set
No
With protective cover
No
Self-adhesive
Yes
Type of wiring
with through-wiring
Number of poles
2
Conductor cross-section
0,50 mm²
Connection type
Plug-in terminal
Country of origin
China (CN)
Commodity code
Light-emitting diode modules (LED modules) (85395100)
REACH Indicator
No
