02-4058075335783
31. October 2024
02-4058075353299
31. October 2024
02-4058075335820
For further information, please refer to the data sheet!Minimum order quantity
4 pieces
Order step
4 pieces
Weight
1,025 kg
Product group
Downlight/spotlight/floodlight (EC001744)
Suitable for wall mounting
Yes
Dimming DALI-2
No
Max. Number of lights Circuit breaker C16
48
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
Light source
LED not replaceable
Suitable for number of light sources
0
Version
Without
Material of the housing
Aluminum
Surface protection
powder-coated
Housing color
black
Brushed surface
No
Voltage type
AC
Nominal voltage
100 – 240 V
LED rated current with constant current
120 mA
Operating device
LED control gear, current-controlled
Without dimming function
No
Reflector
high gloss

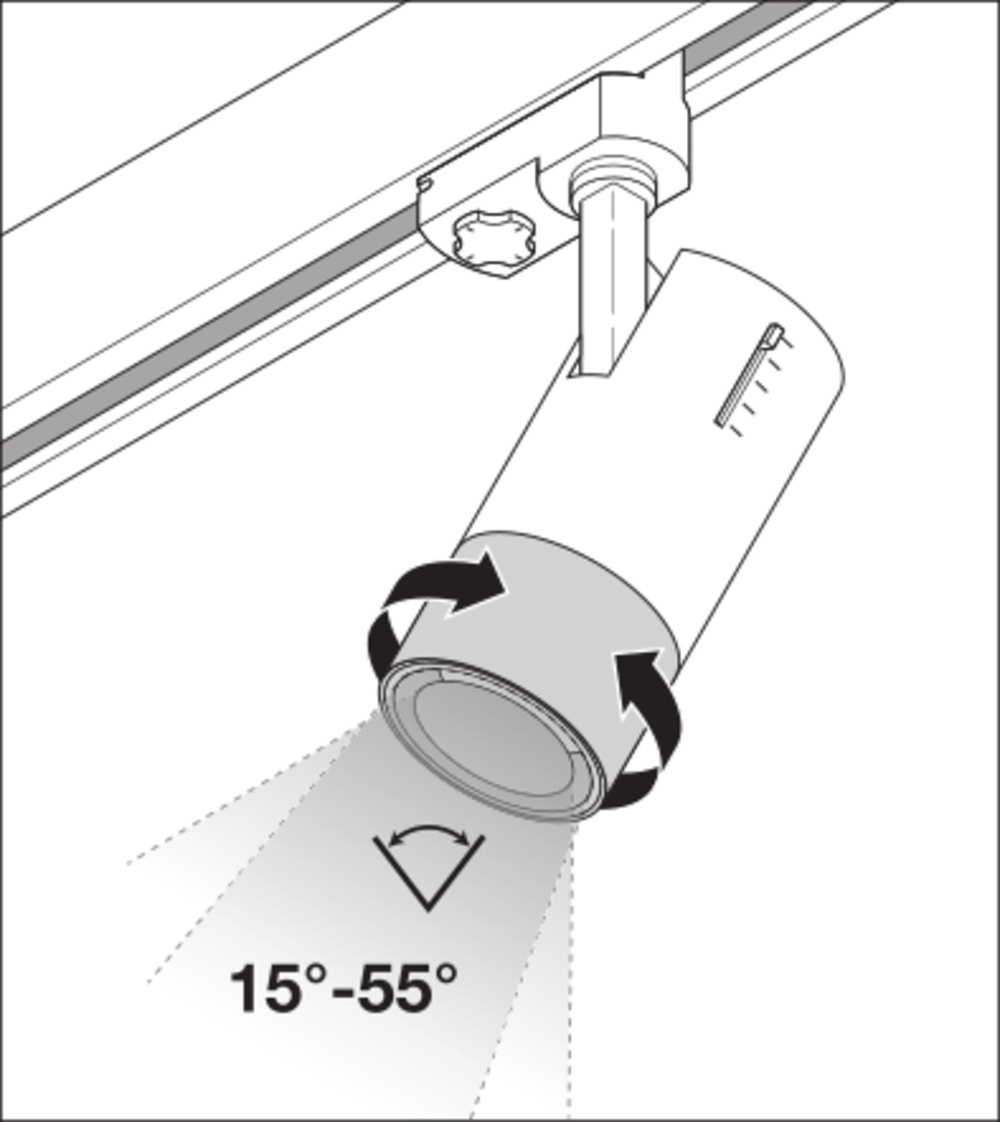

Light distributor
Focus lens
Light emission
direct
Rated service life L70/B50 at 25 °C
50.000 h
Rated service life L80/B10 at 25 °C
35.000 h
Protection class (IP)
IP20
Impact resistance
IK03
Protection class
I
Rated ambient temperature according to IEC 62722-2-1
-20 – 40 °C
Max. System performance
25,00 W
Color temperature
4.000,00 K
Color rendering index CRI
90-100
Luminous flux
1.500,00 lm
Rated luminous flux according to IEC 62722-2-1
1.500 lm
Height/depth
265,00 mm
Length
93 mm
Outer diameter
85 mm
Number of poles
2

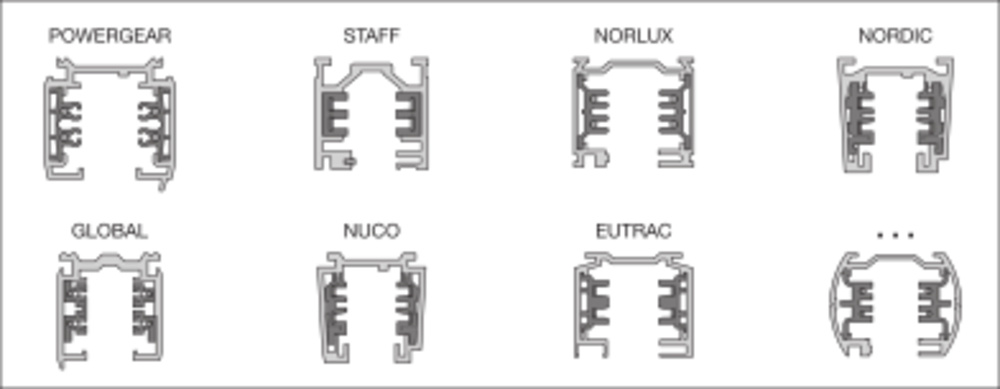

Connection type
Busbar adapter
Luminaire luminous efficacy
60 lm/W
Photobiological safety according to EN 62471
RG1
Color consistency (McAdam ellipse)
SDCM4
Suitable for surface mounting
Yes
Suitable for pendant suspension
Yes
With illuminant
Yes
With control gear
Yes

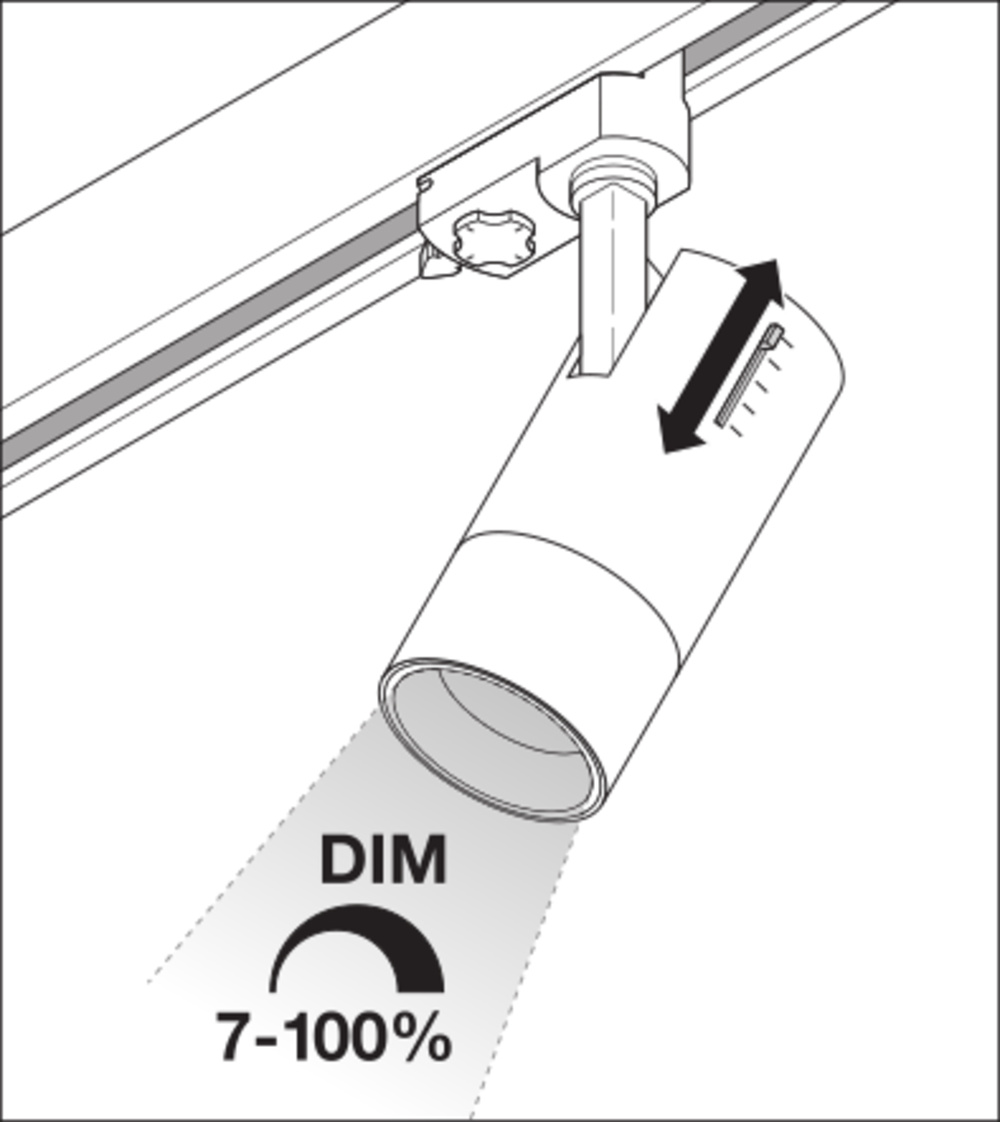

Dimming potentiometer (device-integrated)
Yes
Country of origin
China (CN)
Statistische Warennummer
Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)
REACH Indicator
No
