02-4058075353695
31. October 2024
02-4058075353725
31. October 2024
02-4058075353718
For further information, please refer to the data sheet!Weight
6,3 kg
Product group
Downlight/spotlight/floodlight (EC001744)
Suitable for wall mounting
Yes
Dimming DALI-2
No
Constant luminous flux control
No
Adjustable beam angle
No
Max. Number of lights Circuit breaker C16
3
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for truss mounting
No
Suitable for platform/floor mounting
Yes
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
Light source
LED not replaceable
Suitable for number of light sources
0
Version
Without
Material of the housing
Aluminum
Surface protection
powder-coated
Housing color
black
Brushed surface
No
Voltage type
AC
Nominal voltage
220 – 240 V
LED rated current with constant current
980 mA
Operating device
EVG
Without dimming function
Yes
Reflector
Without
Light distributor
Focus lens

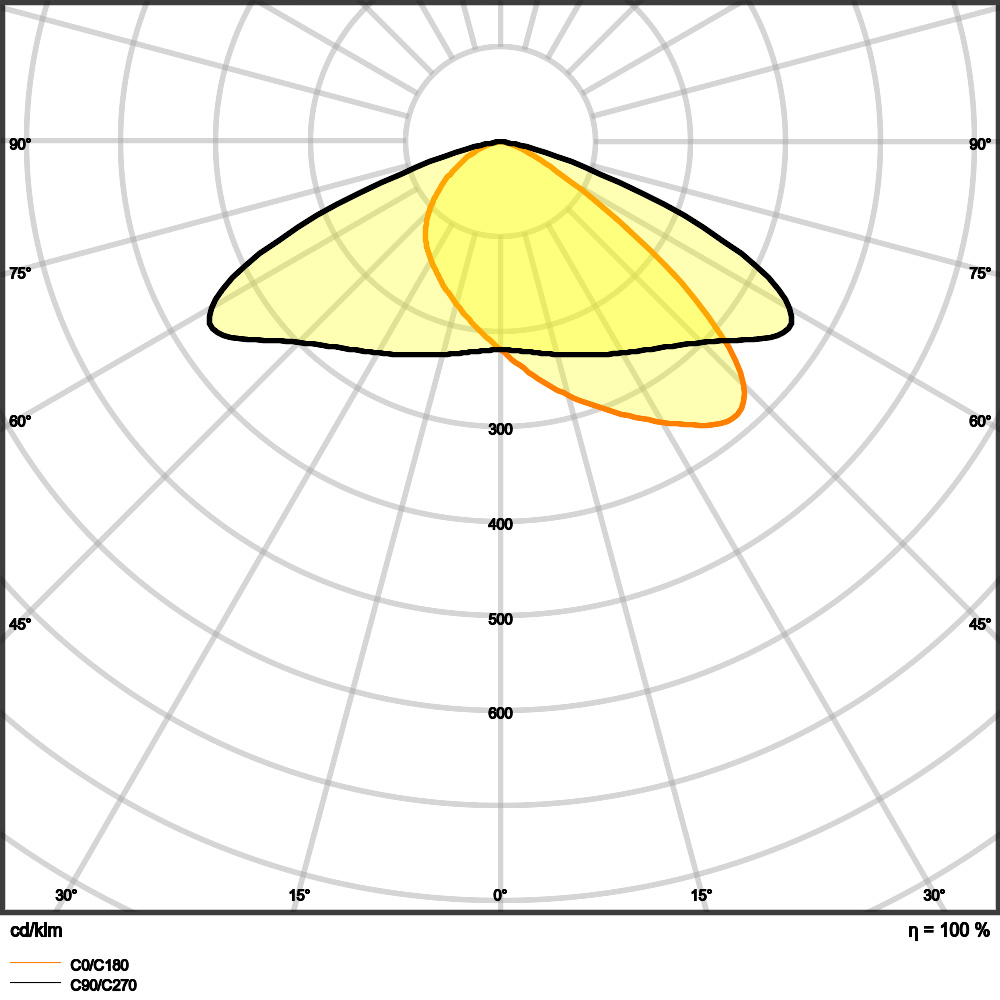

Light distribution
asymmetrical
Light emission
direct
Rated service life L70/B50 at 25 °C
100.000 h
Rated service life L80/B10 at 25 °C
70.000 h
Protection class (IP)
IP66
Impact resistance
IK08
Protection class
I
Rated ambient temperature according to IEC 62722-2-1
-30 – 50 °C
Max. System performance
200,00 W
Color temperature
3.000,00 K
Luminous flux
24.200,00 lm
Rated luminous flux according to IEC 62722-2-1
24.200 lm
Width
395,00 mm
Height/depth
87,00 mm
Length
2.000 mm
Type of wiring
Conclusion
Number of poles
2
Connection type
Plug-in terminal
Luminaire luminous efficacy
130 lm/W
Photobiological safety according to EN 62471
RG1
Color consistency (McAdam ellipse)
SDCM5
Suitable for surface mounting
Yes
With illuminant
Yes
With control gear
Yes
Country of origin
China (CN)
Statistische Warennummer
andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus anderen Stoffen als aus Kunststoffen (94054239)
REACH Indicator
Yes
