02-4058075543928
31. October 2024
02-4058075543959
31. October 2024
02-4058075543942
For further information, please refer to the data sheet!Weight
3,768 kg
Product group
High bay reflector light (EC001716)
Adjustable beam angle
No
Max. Number of lights Circuit breaker C16
4
Light source
LED not replaceable
Suitable for number of light sources
0
Suitable for secondary lamps
No
Version
Without
Material of the housing
Aluminum
Housing color
black
Voltage type
AC
Nominal voltage
100 – 277 V
Rated current
860 mA
LED rated current with constant current
860 mA
Operating device
EVG
Without dimming function
No
Light distributor
Without

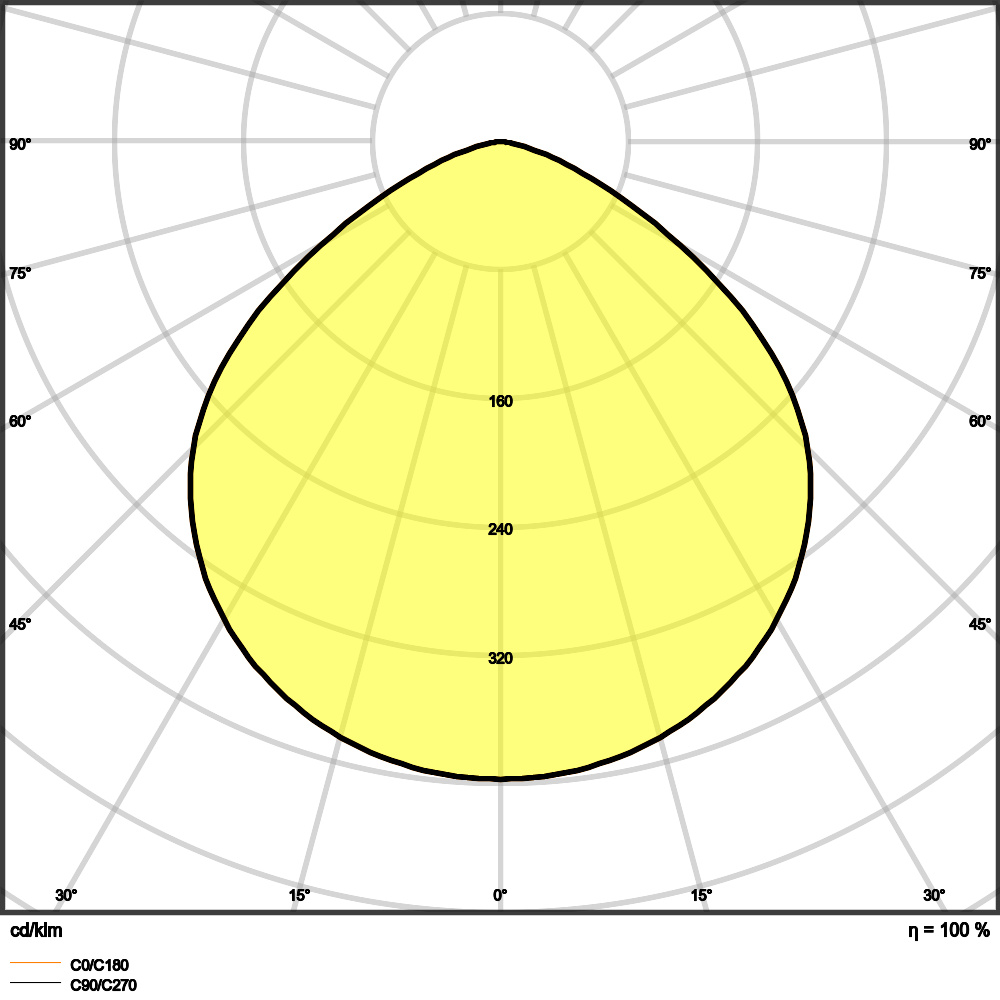

Light distribution
symmetrical
Reflector
Without
Reflector material
without reflector
Rated service life L70/B50 at 25 °C
80.000 h
Rated service life L90/B10 at 25 °C
30.000 h
Protection class (IP)
IP65
Impact resistance
IK08
Ball-proof
No
Protection class
I
Rated ambient temperature according to IEC 62722-2-1
-30 – 50 °C
Max. System performance
190,00 W
Rated luminous flux according to IEC 62722-2-1
27.000 lm
Luminaire luminous efficacy
140 lm/W
Color temperature
4.000,00 K
Color rendering index CRI
80-89
Power factor
0,95
Height/depth
168,00 mm
Length
321 mm
Outer diameter
321 mm
Type of wiring
Conclusion
Number of poles
5
With protective cover
Yes
With illuminant
Yes
With control gear
Yes
DALI dimming
Yes
Country of origin
China (CN)
Statistische Warennummer
Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)
REACH Indicator
Yes
