02-4058075552265
31. October 202402-4058075552296
31. October 2024
02-4058075552272
For further information, please refer to the data sheet!Weight
4,5 kg
Product group
Street and square light (EC000062)
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Mounting type
Essay
Light source
LED not replaceable
Suitable for number of light sources
0
Version
Without
Material of the housing
Aluminum
Surface protection
powder-coated
Voltage type
AC
Nominal voltage
220 – 240 V
Rated current
115 mA
LED rated current with constant current
115 mA
Operating device
EVG
Without dimming function
Yes

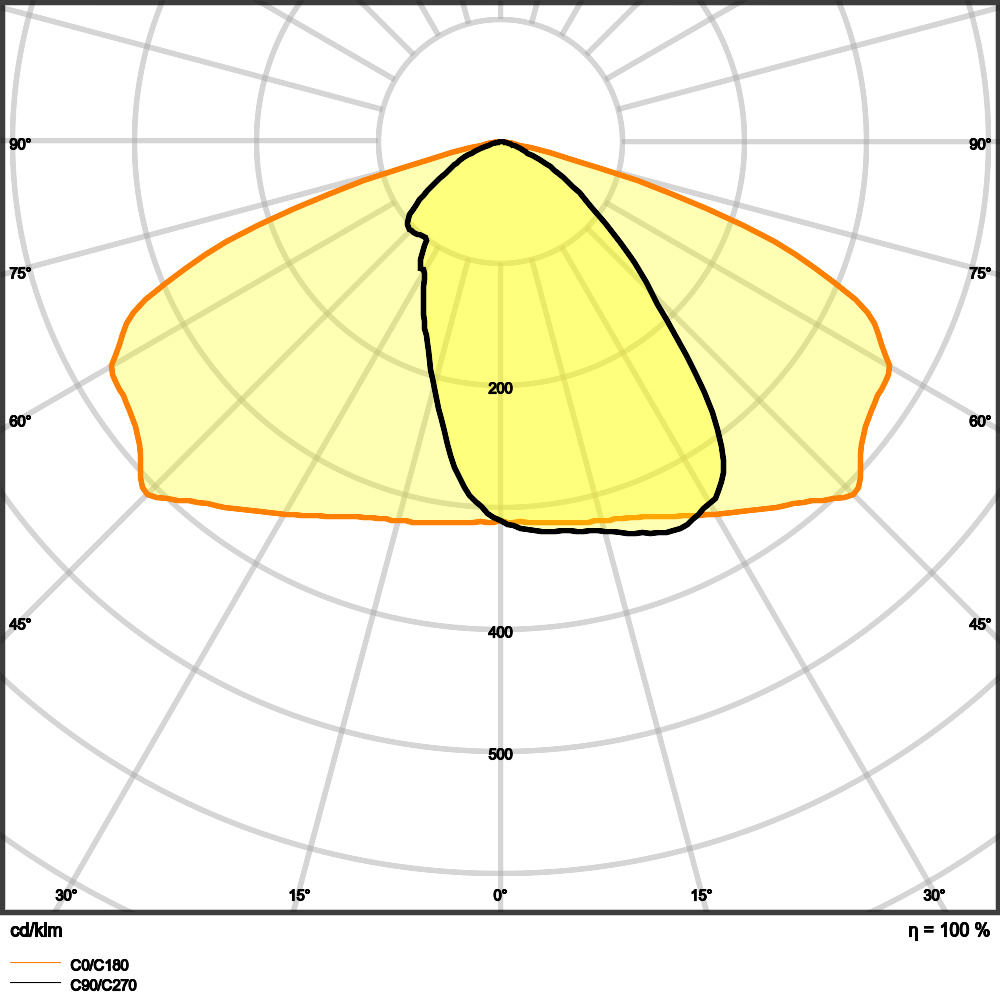

Light distributor
Focus lens
Rated service life L70/B50 at 25 °C
100.000 h
Rated service life L80/B10 at 25 °C
100.000 h
Rated service life L90/B10 at 25 °C
100.000 h
Protection class (IP)
IP66

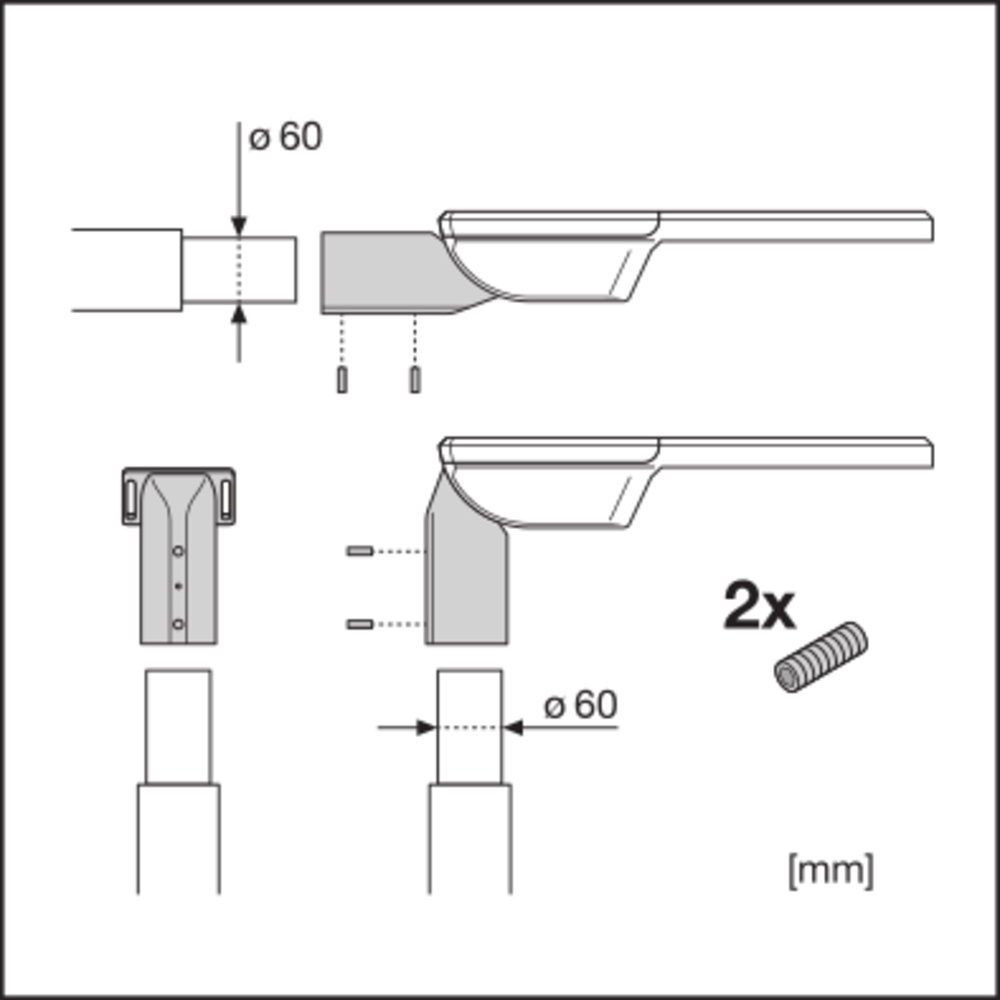

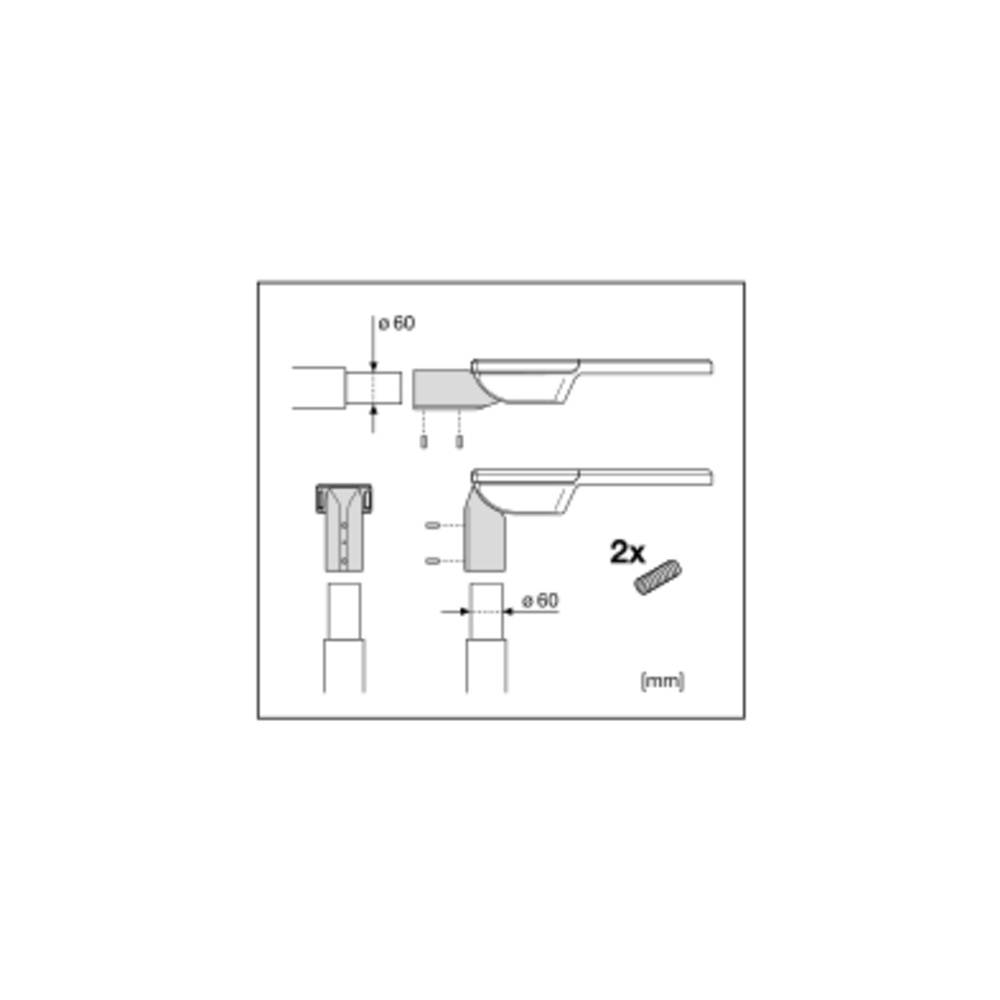

Suitable for plait size
60 mm
Impact resistance
IK08
Protection class
II
Rated ambient temperature according to IEC 62722-2-1
-40 – 50 °C
Remote control
Without
With radio control
No
Constant luminous flux control
No
With program-controlled lighting control
No
Max. System performance
25,00 W
Rated luminous flux according to IEC 62722-2-1
3.370 lm
Luminaire luminous efficacy
135 lm/W
Color temperature
3.000,00 K
Color rendering index CRI
70-79
Width
250,00 mm
Height/depth
90,00 mm
Length
445 mm

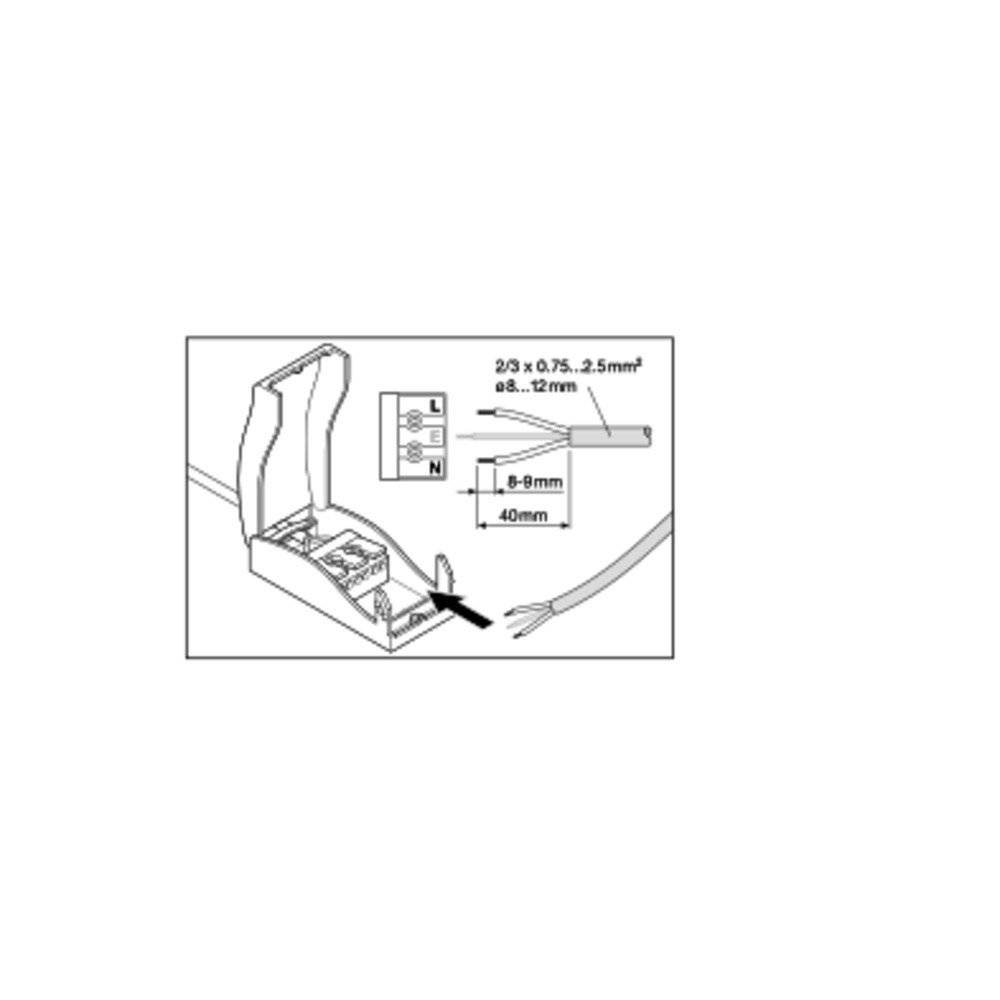

Type of wiring
Conclusion
Number of poles
2
With illuminant
Yes
With control gear
Yes
Country of origin
China (CN)
Statistische Warennummer
andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus anderen Stoffen als aus Kunststoffen (94054239)
REACH Indicator
No
