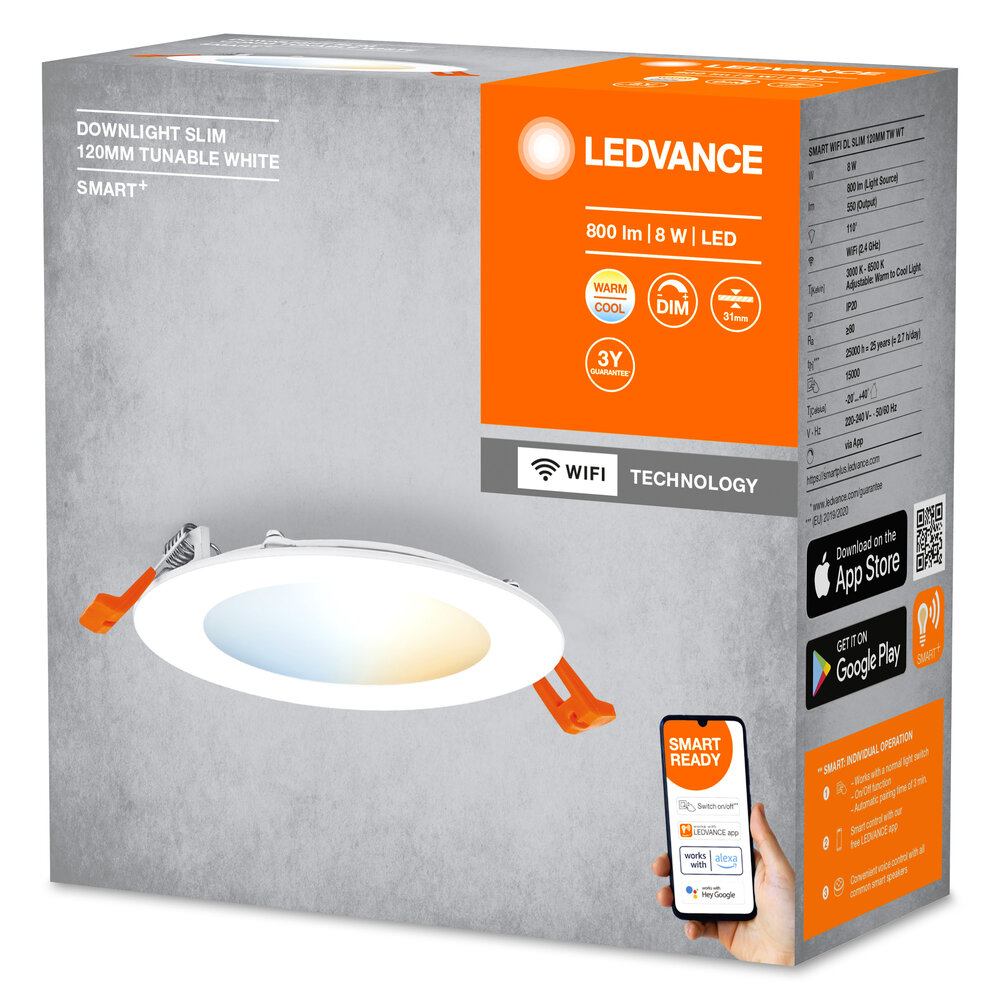

Smartes flaches Einbau-Downlight mit integriertem Treiber TW und dimmbar
31. October 2024
Smartes flaches Einbau-Downlight mit integriertem Treiber TW und dimmbar
31. October 2024
Smartes flaches Einbau-Downlight mit integriertem Treiber TW und dimmbar
For further information, please refer to the data sheet!Weight
0,107 kg
Minimum order quantity
6 pieces
Order step
6 pieces
Weight
0,107 kg
Product group
Ceiling/wall light (EC002892)
Dimming DALI-2
No
Constant luminous flux control
No
Adjustable beam angle
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
Yes
Housing color
white
Max. System performance
8 W
Color temperature
3.000 – 6.500 K
Protection class (IP)
IP20
Without dimming function
No
Height/depth
24 mm
Length
120 mm
Outer diameter
120 mm
Installation height/depth
35 mm
Installation diameter
105 mm
Design of the grid
dull
Voltage type
AC
Nominal voltage
220 – 240 V
Rated current
80 mA
Rated service life L70/B50 at 25 °C
25.000 h
Rated service life L90/B10 at 25 °C
25.000 h
Color rendering index CRI
80-89
Impact resistance
IK03
Protection class
II
Rated ambient temperature according to IEC 62722-2-1
-20 – 40 °C
Luminaire luminous efficacy
70 lm/W
Rated luminous flux according to IEC 62722-2-1
550 lm
Type of wiring
Conclusion
Number of poles
2
Connection type
Screw terminal
Photobiological safety according to EN 62471
RG0
Suitable for recessed mounting
Yes
Suitable for surface mounting
Yes
With illuminant
Yes
With control gear
Yes
Country of origin
China (CN)
Commodity code
Chandeliers and other electric ceiling and wall lights, with LED light source, made of plastic or ceramic materials (94051140)
REACH Indicator
No
Datenblatt
Suitable for wall mounting
No
Suitable for pendant suspension
No
Suitable for ceiling mounting
No
Geeignet für Anbaumontage
Yes
Suitable for strip light configuration
No
Suitable for VDU workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
DALI dimming
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimmung GPRS
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depending on the control gear
No
Bemessungsumgebungstemperatur nach IEC62722-2-1
-20 – 40 °C
Suitable for emergency lighting
No
Integrated emergency power supply
No
With motion detector
No
With light sensor
No
Covering the luminaire with thermal insulation material possible
No
Mit Luftschlitzen
No
Operation via Bluetooth
No
Material of the housing
Plastic
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
nicht erforderlich
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Power factor
0,5
Installation length
105 mm
Installation width
105 mm
Erfüllt min. EIA Lebensdauerkriterium L90 (bei 50.000 h bei tq = 25 °C)
No
