02-4058075580602
31. October 2024
02-4058075580633
31. October 2024
02-4058075580619
For further information, please refer to the data sheet!Weight
15,8 kg
Product group
Downlight/spotlight/floodlight (EC001744)
Suitable for wall mounting
Yes
Dimming DALI-2
No
Constant luminous flux control
No
Adjustable beam angle
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for truss mounting
Yes
Suitable for platform/floor mounting
Yes
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
Light source
LED not replaceable
Suitable for number of light sources
0
Version
Without
Material of the housing
Aluminum
Surface protection
powder-coated
Housing color
white
Brushed surface
No
Voltage type
DC
Nominal voltage
1 – 0 V
LED rated current with constant current
3.160 mA
Without dimming function
Yes
Reflector
dull
Light distributor
Reflector

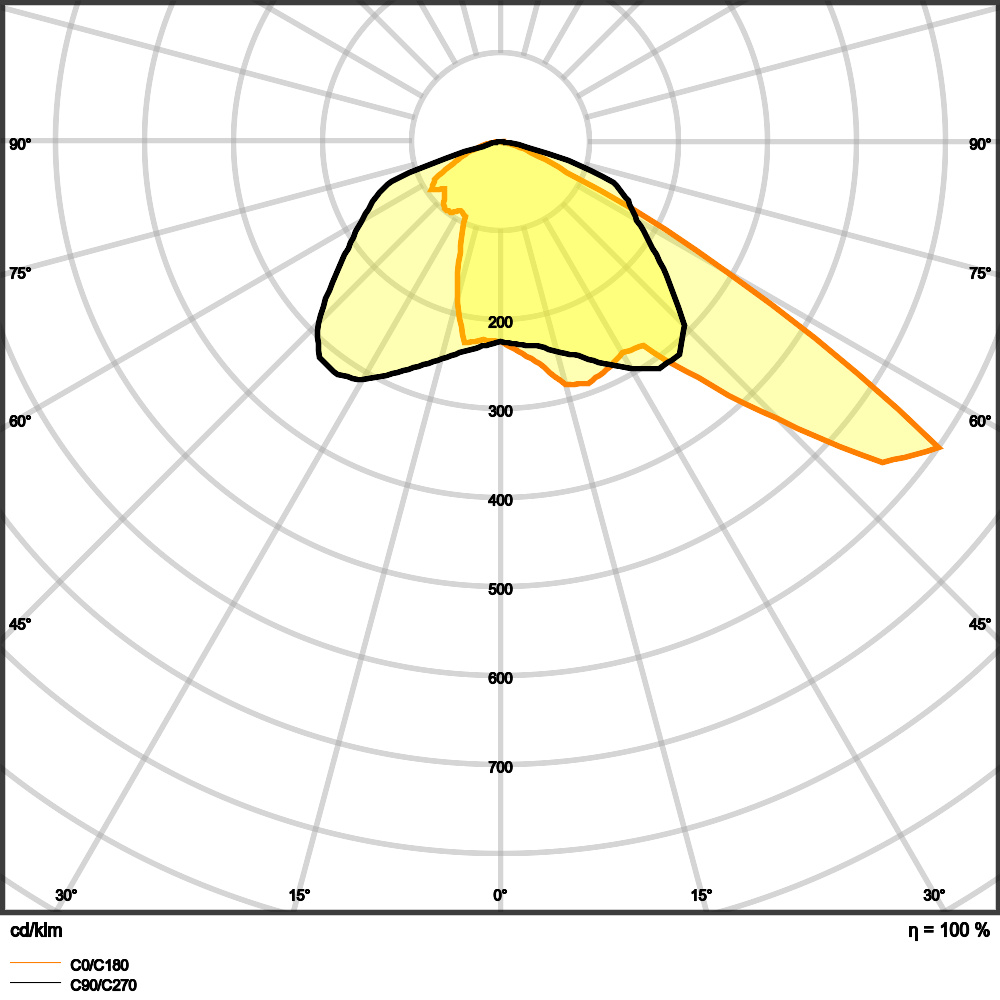

Light distribution
asymmetrical
Light emission
direct
Rated service life L70/B50 at 25 °C
100.000 h
Rated service life L80/B10 at 25 °C
75.000 h
Protection class (IP)
IP66
Impact resistance
IK08
Rated ambient temperature according to IEC 62722-2-1
-30 – 50 °C
Max. System performance
600,00 W
Color temperature
5.700,00 K
Color rendering index CRI
70-79
Luminous flux
82.000,00 lm
Rated luminous flux according to IEC 62722-2-1
82.000 lm
Width
591,00 mm
Height/depth
279,00 mm
Length
1.300 mm
Type of wiring
Conclusion
Number of poles
3
Luminaire luminous efficacy
137 lm/W
Photobiological safety according to EN 62471
RG2
Suitable for surface mounting
Yes
With illuminant
Yes
Country of origin
China (CN)
Statistische Warennummer
andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus anderen Stoffen als aus Kunststoffen (94054239)
REACH Indicator
No
