02-4058075603257
31. October 2024
02-4058075603271
31. October 2024
02-4058075603264
For further information, please refer to the data sheet!Weight
2,57 kg
Product group
High bay reflector light (EC001716)
Constant luminous flux control
No
Adjustable beam angle
No
Max. Number of lights Circuit breaker C16
6
Light source
LED not replaceable
Suitable for number of light sources
0
Suitable for secondary lamps
No
Version
Without
Material of the housing
Aluminum
Housing color
black
Voltage type
AC
Nominal voltage
220 – 240 V
Rated current
660 mA
LED rated current with constant current
660 mA
Without dimming function
Yes
Light distributor
Without

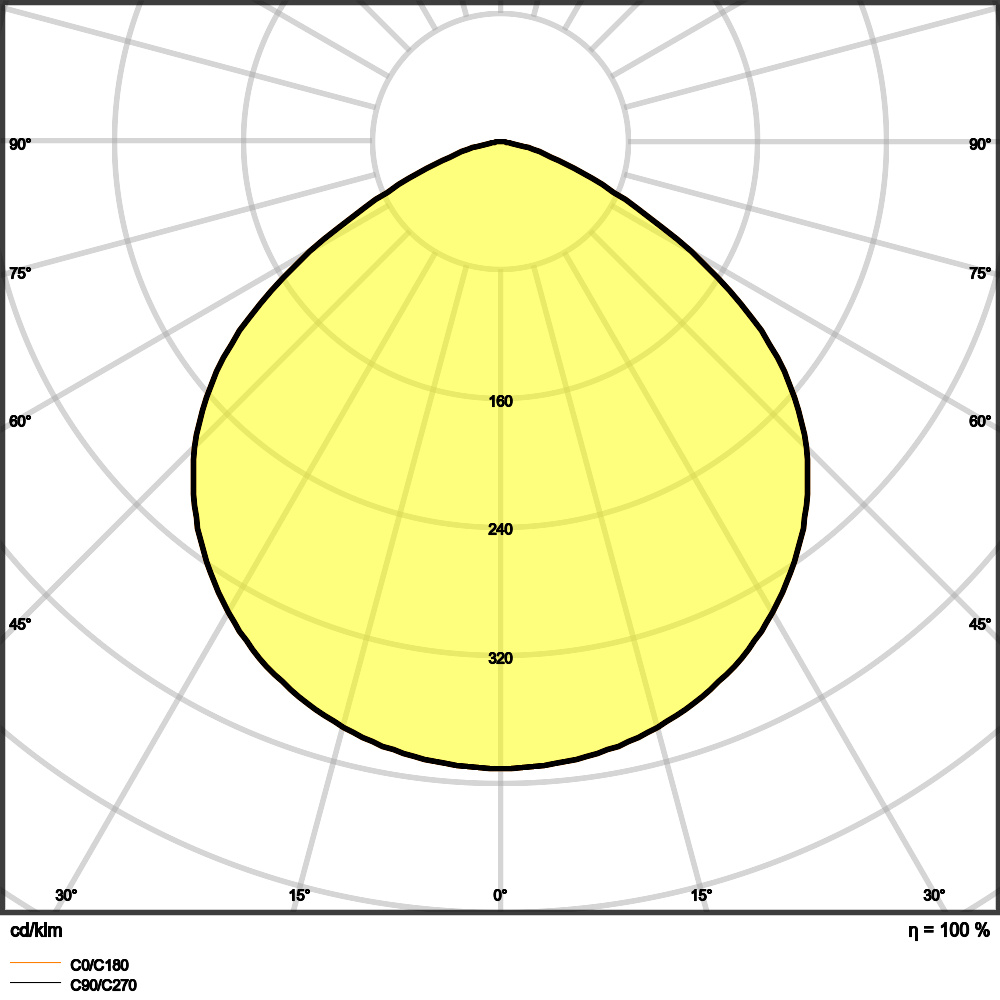

Light distribution
symmetrical
Reflector
Without
Reflector material
without reflector
Rated service life L70/B50 at 25 °C
80.000 h
Rated service life L90/B10 at 25 °C
35.000 h
Protection class (IP)
IP65
Impact resistance
IK08
Ball-proof
No
Protection class
I
Rated ambient temperature according to IEC 62722-2-1
-20 – 50 °C
Max. System performance
147,00 W
Rated luminous flux according to IEC 62722-2-1
22.000 lm
Luminaire luminous efficacy
150 lm/W
Color temperature
4.000,00 K
Color rendering index CRI
80-89
Height/depth
188,00 mm
Length
1.500 mm
Outer diameter
321 mm
Type of wiring
Conclusion
Number of poles
5
With protective cover
Yes
With illuminant
Yes
With control gear
Yes
Dimming 1-10 V
Yes
Country of origin
China (CN)
Statistische Warennummer
Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)
REACH Indicator
Yes
