02-4058075618084
31. October 2024
02-4058075625990
31. October 2024
02-4058075618121
For further information, please refer to the data sheet!Minimum order quantity
5 pieces
Order step
5 pieces
Weight
0,79 kg
Product group
Ceiling/wall light (EC002892)
Dimming DALI-2
No
Max. Number of lights Circuit breaker C16
56
Constant luminous flux control
No
Adjustable beam angle
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Housing color
white
Max. System performance
24,00 W
Color temperature
4.000,00 K

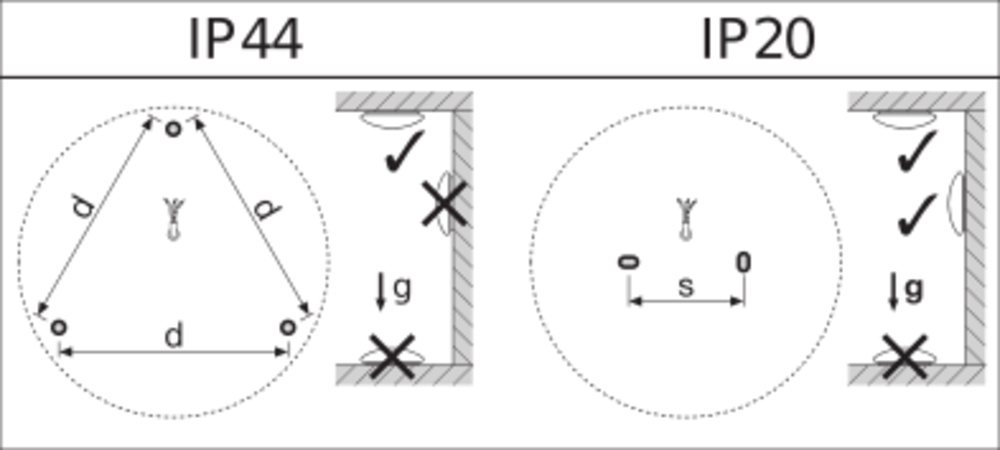

Protection class (IP)
IP44
Without dimming function
Yes
Height/depth
120,00 mm
Length
400 mm
Suitable for number of light sources
0
Outer diameter
400 mm
Version
other
Surface protection housing
powder-coated
Design of the grid
dull
Voltage type
AC
Nominal voltage
220 – 240 V
Rated current
185 mA
Operating device
EVG
Light distributor
other
Light emission
direct
Rated service life L70/B50 at 25 °C
30.000 h
Rated service life L80/B10 at 25 °C
22.000 h
Rated service life L90/B10 at 25 °C
15.000 h
Impact resistance
IK03
Protection class
I
Rated ambient temperature according to IEC 62722-2-1
-20 – 40 °C
Luminaire luminous efficacy
80 lm/W
Rated luminous flux according to IEC 62722-2-1
1.920 lm
Light source
LED not replaceable
Type of wiring
Conclusion
Number of poles
2
Connection type
Plug-in terminal
Photobiological safety according to EN 62471
RG0
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for surface mounting
Yes
With illuminant
Yes
With control gear
Yes

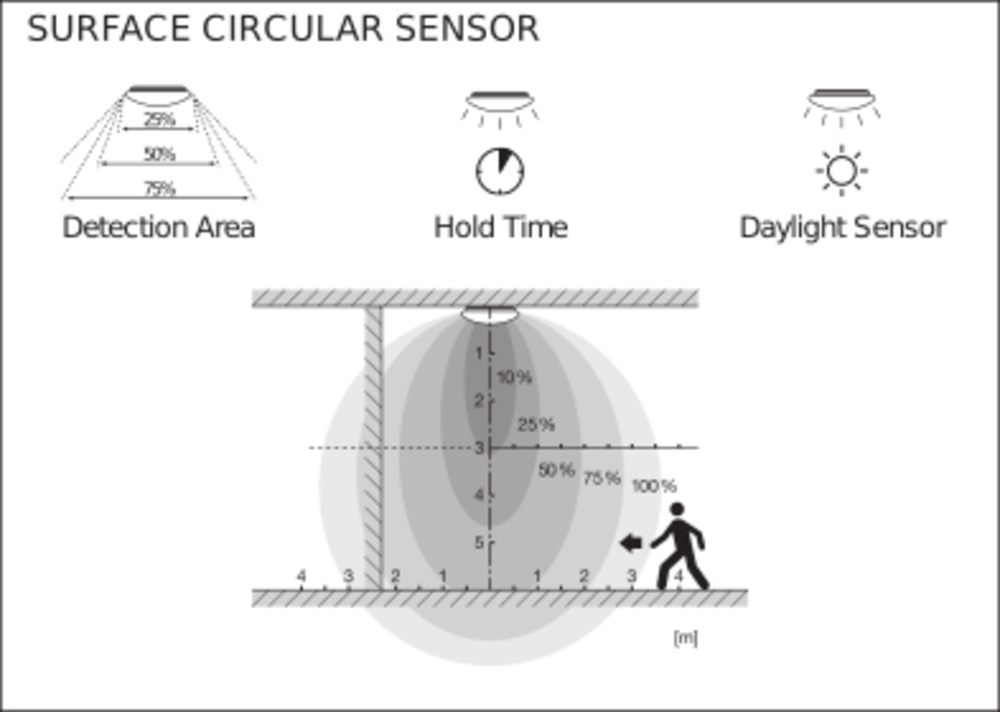

With motion detector
Yes
With light sensor
Yes
Country of origin
China (CN)
Statistische Warennummer
Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)
REACH Indicator
No
