02-4058075703124
31. October 2024
02-4058075705463
31. October 2024
02-4058075703223
For further information, please refer to the data sheet!Minimum order quantity
10 pieces
Order step
10 pieces
Weight
0,252 kg

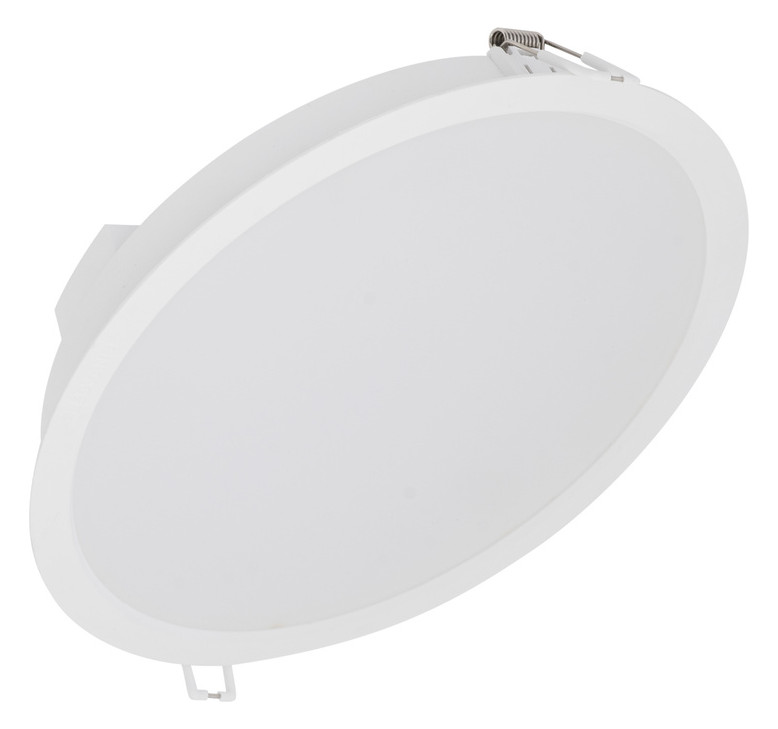

Product group
Downlight/spotlight/floodlight (EC001744)
Suitable for wall mounting
No
Dimming DALI-2
No
Constant luminous flux control
No
Adjustable beam angle
No

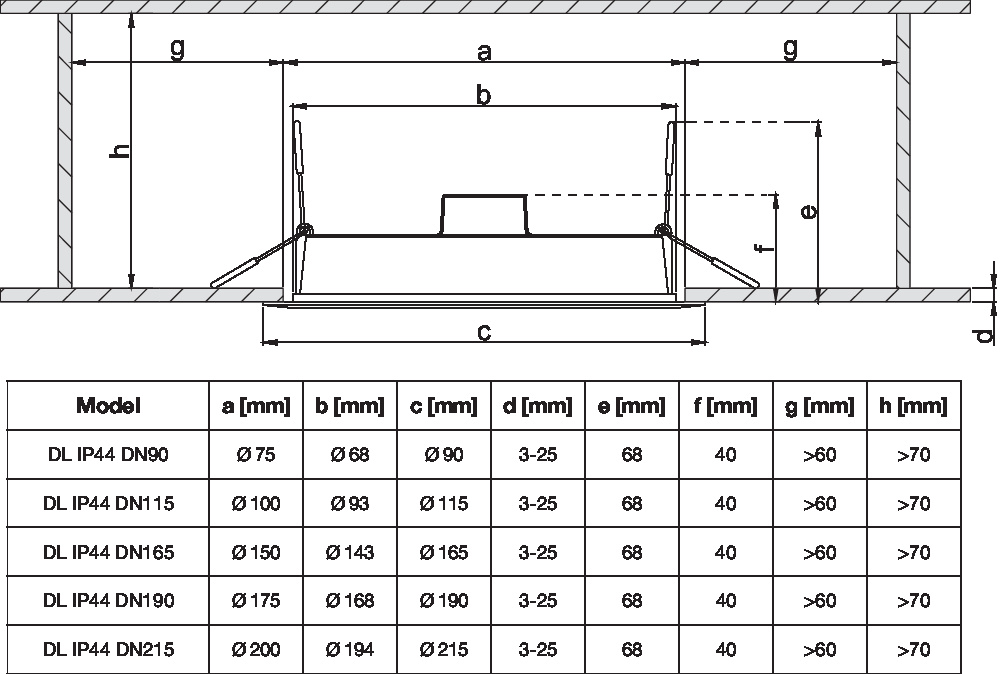

Installation diameter
200 mm
Max. Number of lights Circuit breaker C16
53
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
Light source
LED not replaceable
Suitable for number of light sources
0
Version
Without
Surface protection
untreated
Housing color
white
Brushed surface
No
Voltage type
AC
Nominal voltage
220 – 240 V
LED rated current with constant current
180 mA
Operating device
LED control gear, current-controlled
Without dimming function
Yes
Reflector
Without
Light distributor
Diffuser lens/optics/panel

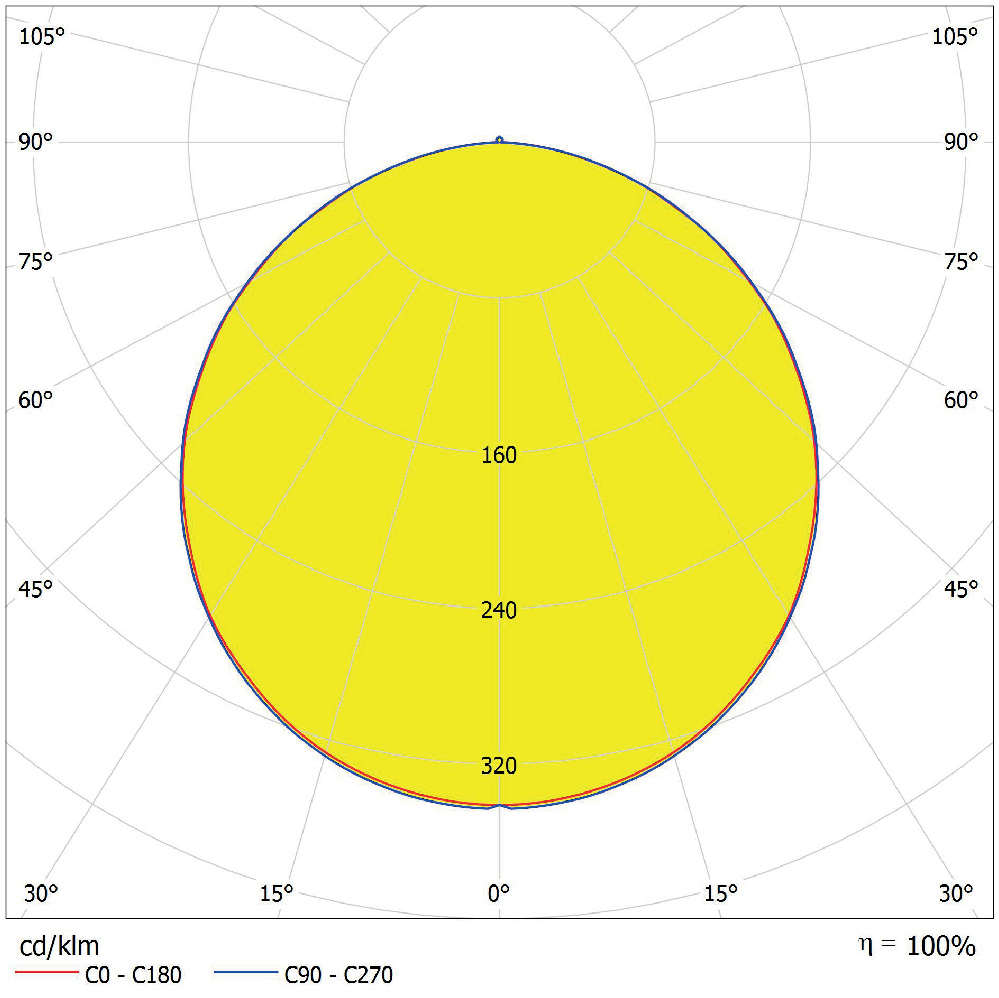

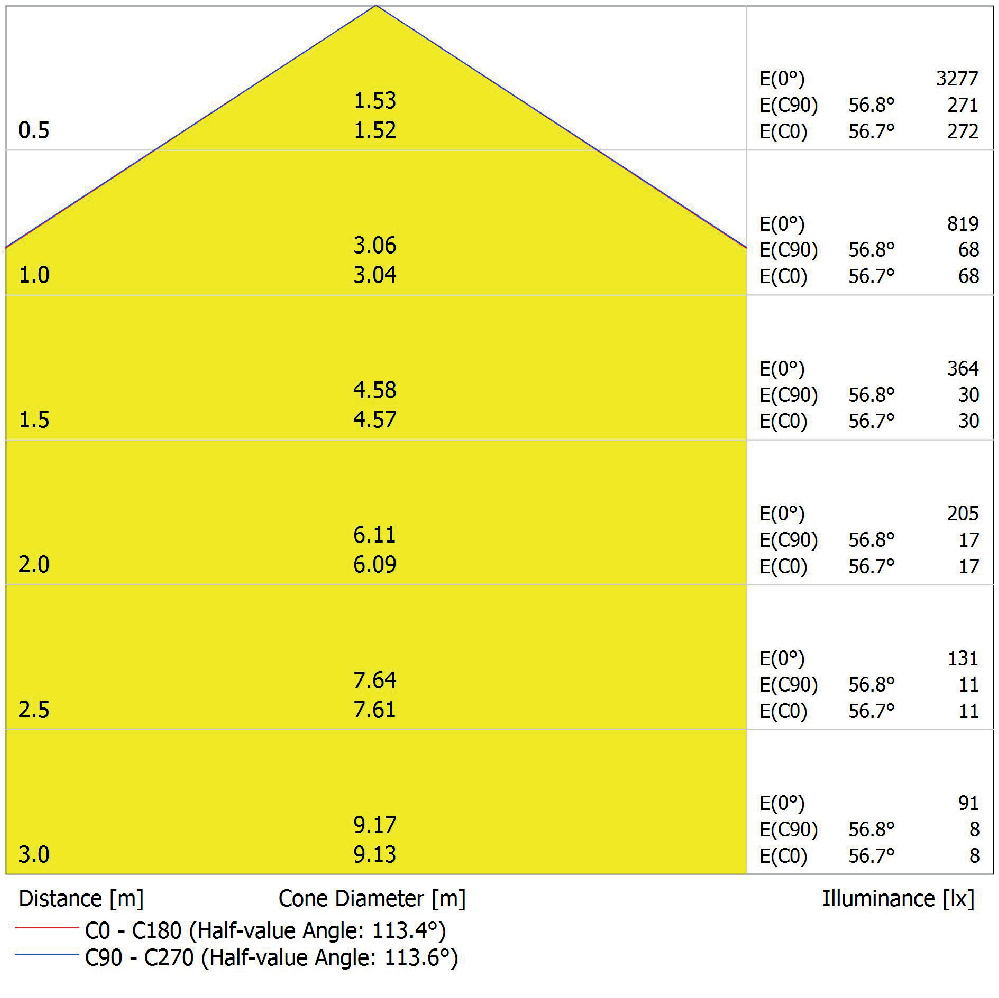

Light distribution
symmetrical
Light emission
direct
Rated service life L70/B50 at 25 °C
20.000 h
Rated service life L80/B10 at 25 °C
18.000 h
Protection class (IP)
IP44
Impact resistance
IK03
Protection class
II
Rated ambient temperature according to IEC 62722-2-1
-20 – 40 °C
Max. System performance
24,00 W
Color temperature
4.000,00 K
Luminous flux
2.400,00 lm
Rated luminous flux according to IEC 62722-2-1
2.400 lm
Power factor
0,50
Height/depth
40,00 mm
Outer diameter
215 mm
Installation height/depth
40 mm
Type of wiring
Conclusion
Number of poles
2
Luminaire luminous efficacy
100 lm/W
Photobiological safety according to EN 62471
RG0
Suitable for surface mounting
Yes
Suitable for recessed mounting
Yes
Suitable for ceiling mounting
Yes
With illuminant
Yes
With control gear
Yes
Country of origin
China (CN)
Commodity code
Chandeliers and other electric ceiling and wall lights, with LED light source, made of plastic or ceramic materials (94051140)
REACH Indicator
No
