02-4058075733114

SKU: 02-4058075733114
For further information, please refer to the data sheet!
Minimum order quantity

4 pieces

Order step

4 pieces

Weight

2,6 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

Yes

Dimming DALI-2

No

Max. Number of lights Circuit breaker C16

33

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Housing color

white

Max. System performance

32,00 W

Color temperature

4.000,00 K

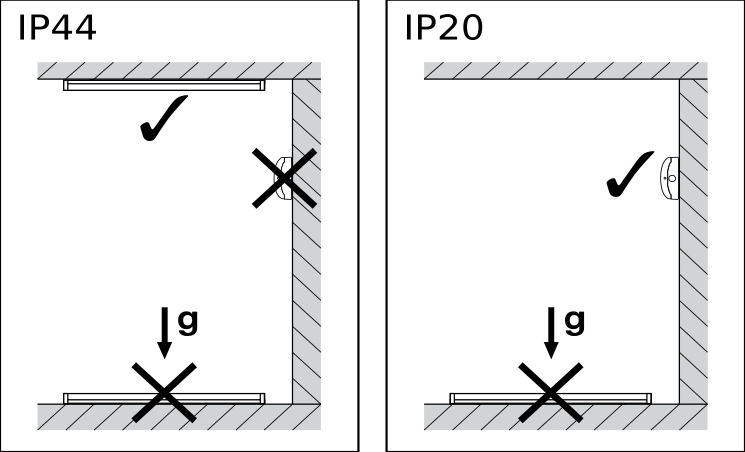

Protection class (IP)

IP44

Without dimming function

Yes

Width

166,00 mm

Height/depth

63,00 mm

Length

1.176 mm

Suitable for number of light sources

0

Version

other

Surface protection housing

powder-coated

Design of the grid

dull

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

150 mA

Operating device

EVG

Light distributor

Diffuser lens/optics/panel

Light emission

direct

Rated service life L70/B50 at 25 °C

70.000 h

Rated service life L80/B10 at 25 °C

70.000 h

Rated service life L90/B10 at 25 °C

41.000 h

Impact resistance

IK08

Protection class

I

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Luminaire luminous efficacy

137 lm/W

Rated luminous flux according to IEC 62722-2-1

4.384 lm

Light source

LED not replaceable

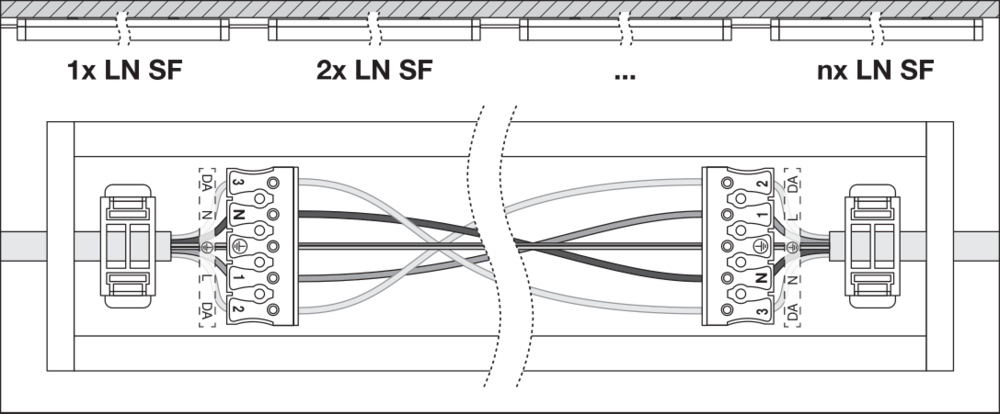

Type of wiring

with through-wiring

Number of poles

3

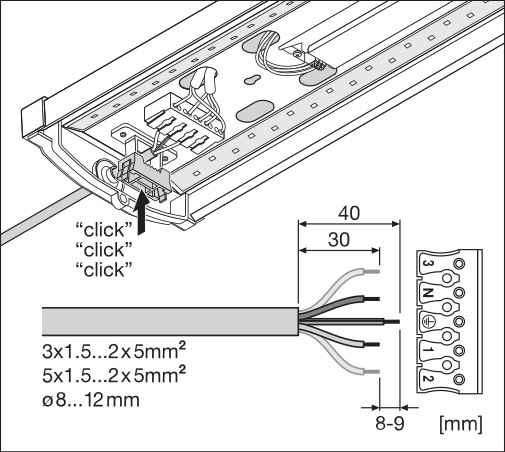

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for wall mounting

Yes

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Excluded

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes
