02-4058075799745
31. October 2024
02-4058075799806
31. October 2024
02-4058075799769
For further information, please refer to the data sheet!Minimum order quantity
20 pieces
Order step
20 pieces
Weight
0,24 kg
Product group
Downlight/spotlight/floodlight (EC001744)
Suitable for wall mounting
No
Dimming DALI-2
No
Constant luminous flux control
No
Adjustable beam angle
No
Installation diameter
68 mm
Max. Number of lights Circuit breaker C16
336
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
Light source
LED not replaceable
Suitable for number of light sources
0
Version
Without
Material of the housing
Aluminum
Surface protection
powder-coated
Housing color
white
Brushed surface
No
Voltage type
AC
Nominal voltage
220 – 240 V
LED rated current with constant current
38 mA
Operating device
LED control gear, current-controlled
Without dimming function
No
Reflector
Without
Light distributor
Focus lens

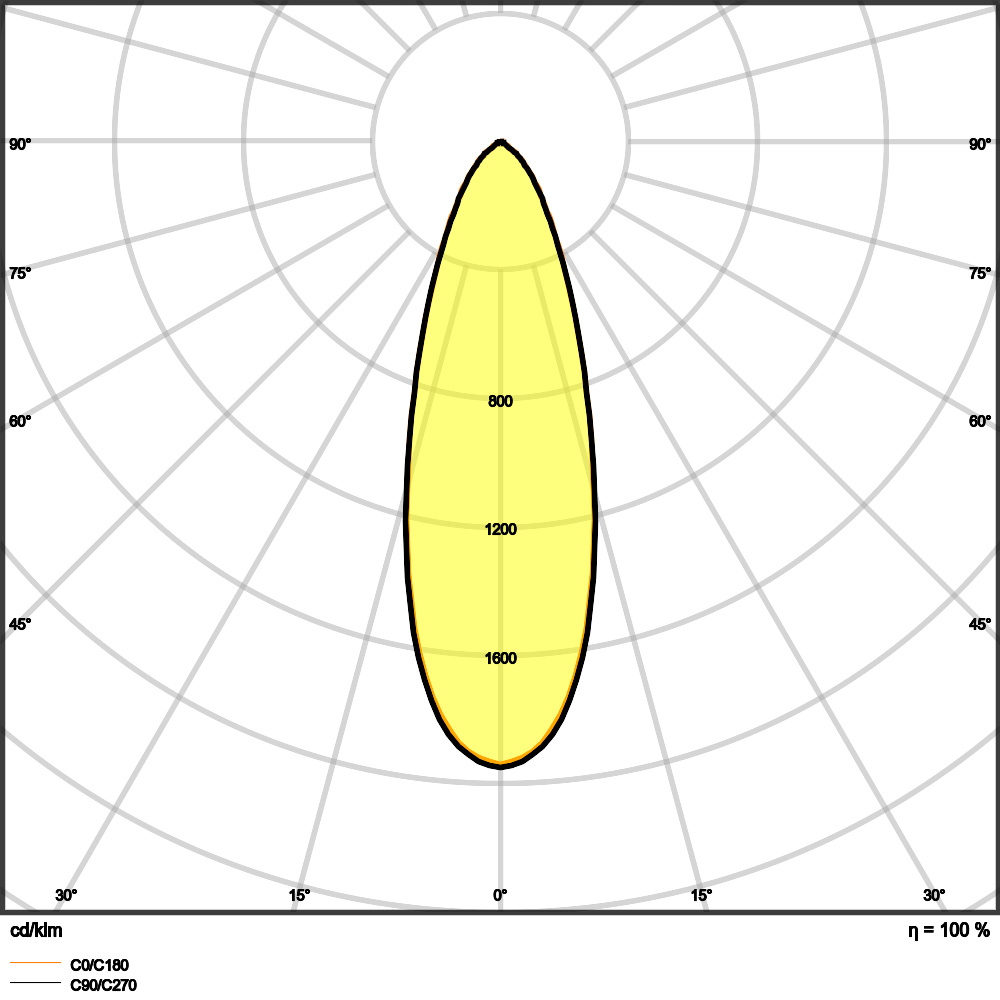

Light distribution
symmetrical
Light emission
direct
Rated service life L70/B50 at 25 °C
50.000 h
Rated service life L80/B10 at 25 °C
41.000 h
Protection class (IP)
IP65
Impact resistance
IK05
Protection class
II
Rated ambient temperature according to IEC 62722-2-1
-20 – 40 °C
Max. System performance
8,00 W
Color temperature
4.000,00 K
Color rendering index CRI
90-100
Luminous flux
720,00 lm
Rated luminous flux according to IEC 62722-2-1
720 lm
Power factor
0,90

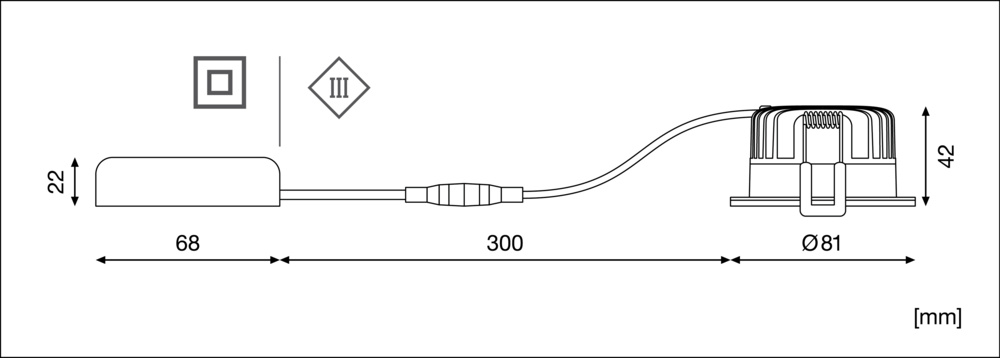

Height/depth
50,00 mm
Outer diameter
81 mm
Installation height/depth
50 mm
Type of wiring
Suitable for through-wiring
Number of poles
2
Luminaire luminous efficacy
90 lm/W
Photobiological safety according to EN 62471
RG1
Color consistency (McAdam ellipse)
SDCM3
Suitable for surface mounting
Yes
Suitable for recessed mounting
Yes
Suitable for ceiling mounting
Yes
With illuminant
Yes
With control gear
Yes
Dimming depending on the control gear
Yes
Dimming phase cut-off
Yes
Phase control dimming
Yes
Country of origin
China (CN)
Statistische Warennummer
andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus anderen Stoffen als aus Kunststoffen (94054239)
REACH Indicator
No
