02-4099854013478
31. October 2024
02-4099854014239
31. October 2024
02-4099854014215
For further information, please refer to the data sheet!Minimum order quantity
4 pieces
Order step
4 pieces
Weight
1,55 kg
Product group
Ceiling/wall light (EC002892)
Dimming DALI-2
No
Max. Number of lights Circuit breaker C16
24
Constant luminous flux control
No
Adjustable beam angle
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Housing color
white

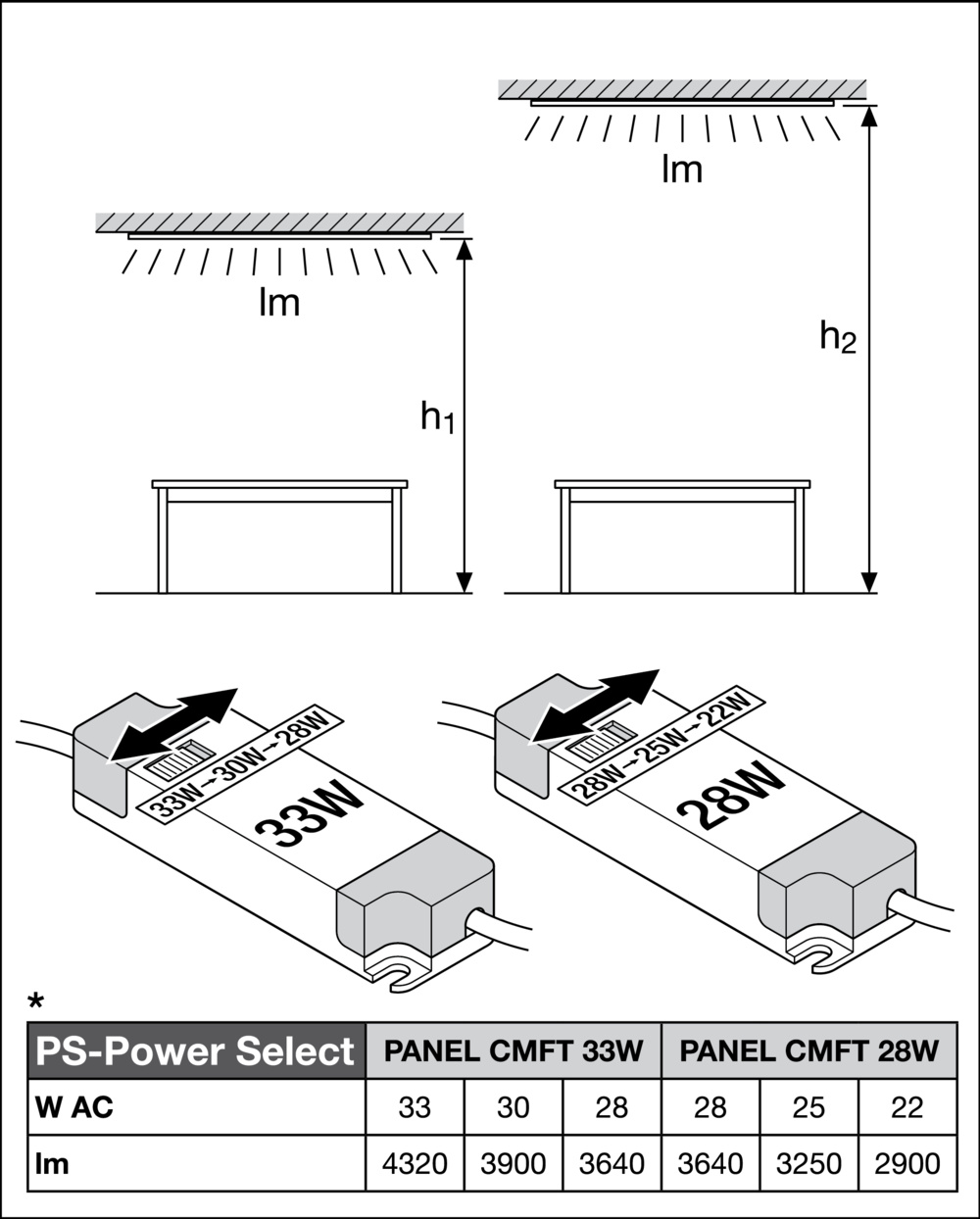

Max. System performance
28,00 W
Color temperature
4.000,00 K
Protection class (IP)
IP40
Without dimming function
Yes
Width
595,00 mm
Height/depth
50,00 mm
Length
595 mm
Installation length
575 mm
Installation width
575 mm
Surface protection housing
powder-coated
Installation height/depth
50 mm
Design of the grid
dull
Voltage type
AC
Nominal voltage
220 – 240 V
Rated current
125 mA
Light distributor
Diffuser lens/optics/panel
Color consistency (McAdam ellipse)
SDCM3

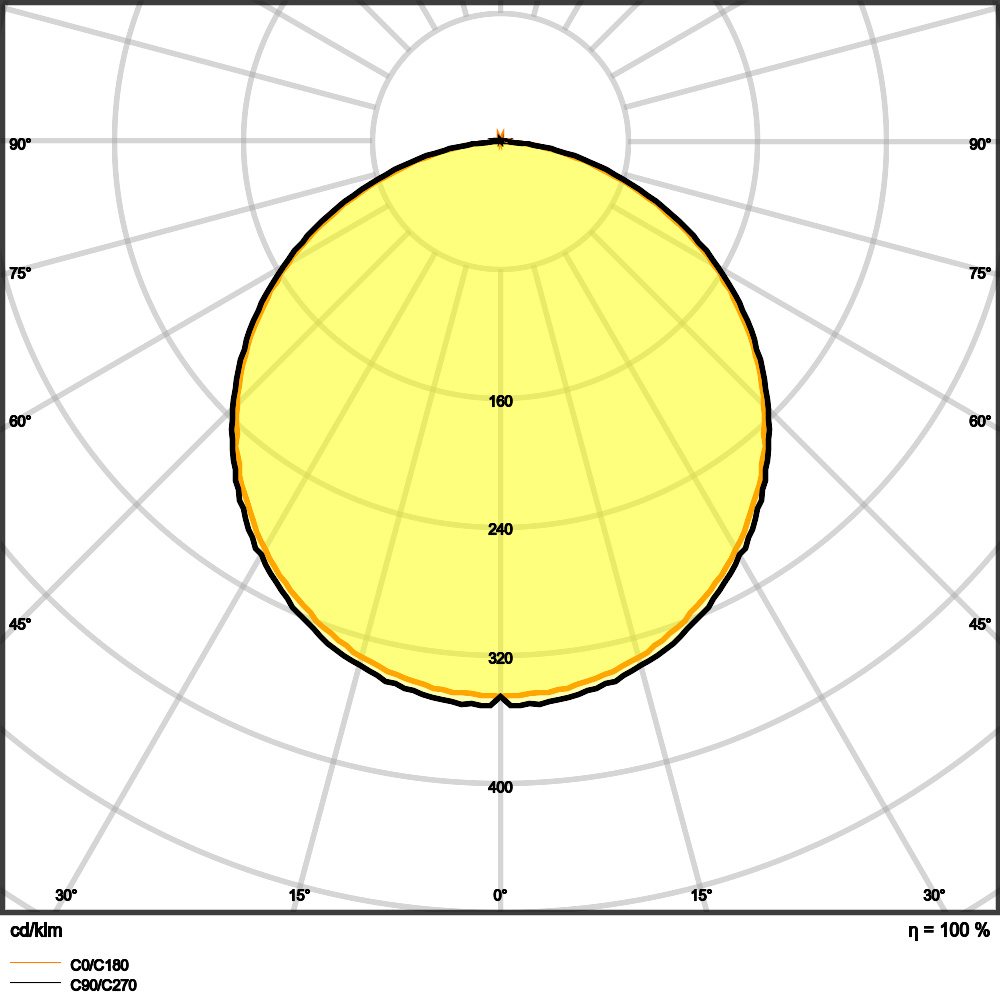

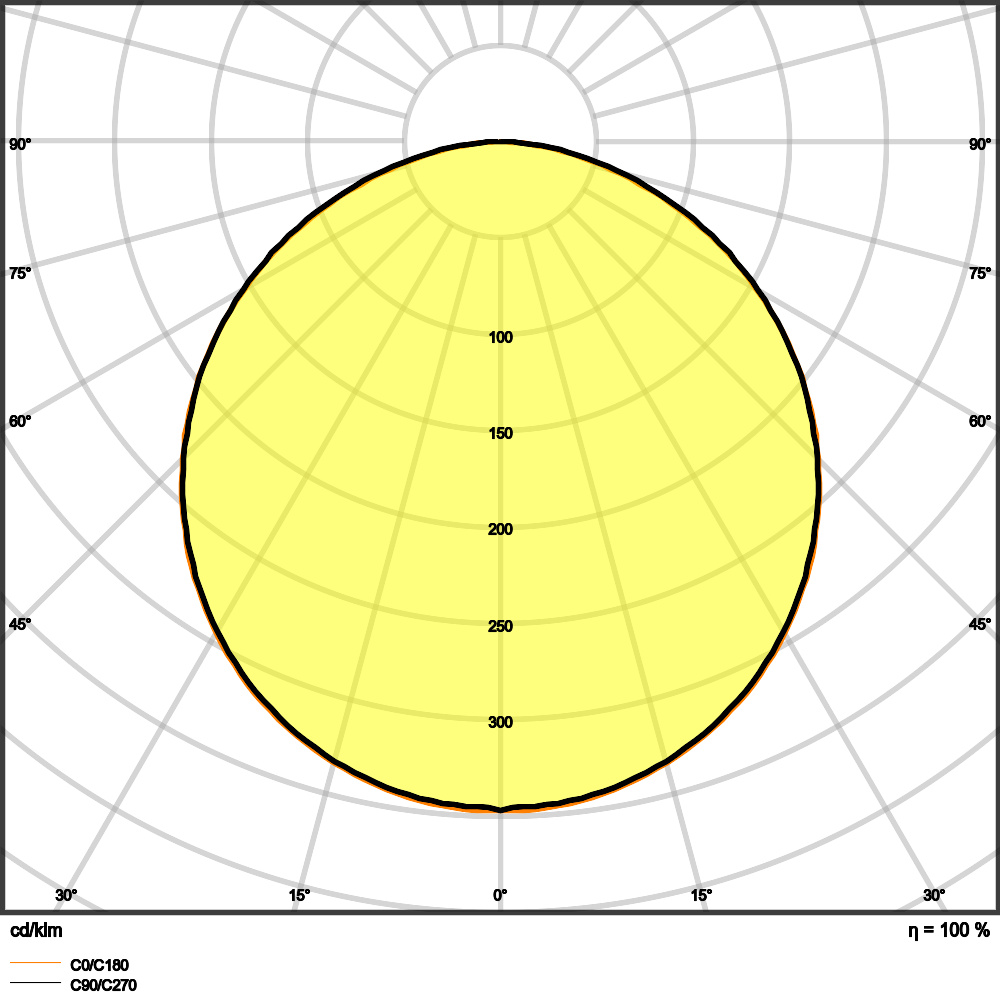

Light emission
direct
Rated service life L70/B50 at 25 °C
100.000 h
Rated service life L80/B10 at 25 °C
70.000 h
Rated service life L90/B10 at 25 °C
48.000 h
Impact resistance
IK02
Protection class
II
Rated ambient temperature according to IEC 62722-2-1
-10 – 50 °C
Luminaire luminous efficacy
130 lm/W
Rated luminous flux according to IEC 62722-2-1
3.640 lm

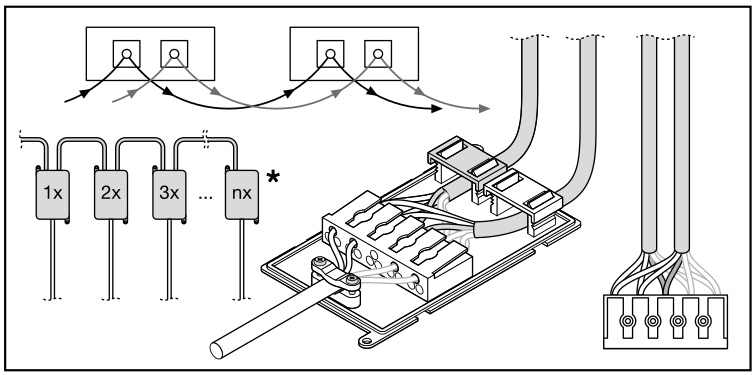

Type of wiring
Suitable for through-wiring
Number of poles
2
Connection type
Plug-in terminal
Photobiological safety according to EN 62471
RG0
Suitable for pendant suspension
Yes
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
Yes
Suitable for surface mounting
Yes
With illuminant
Yes
With control gear
Yes
Country of origin
China (CN)
Statistische Warennummer
Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)
REACH Indicator
No
