SURFACE SQUARE 330 3CCT SENSOR 24W 3CCT IP44

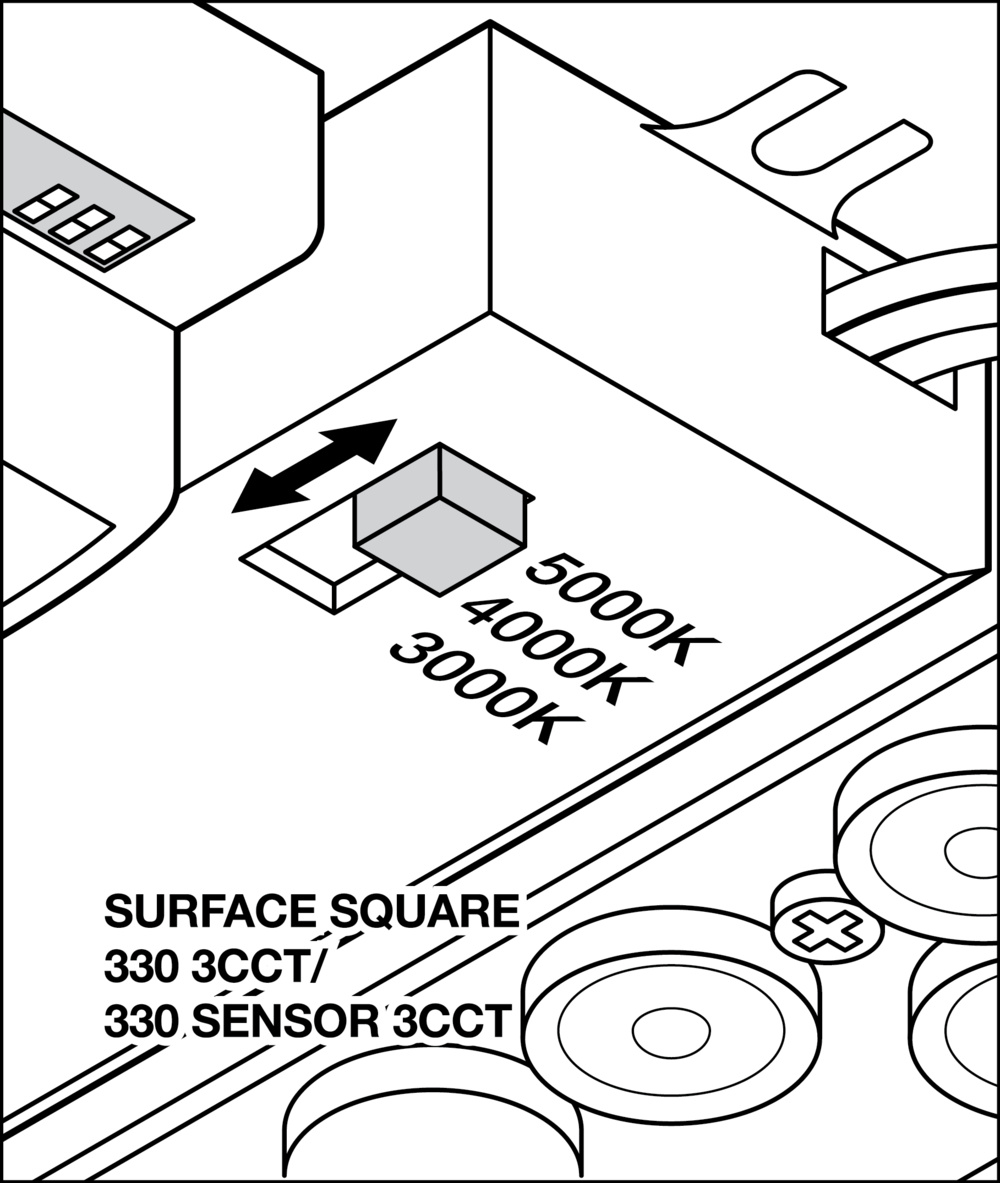

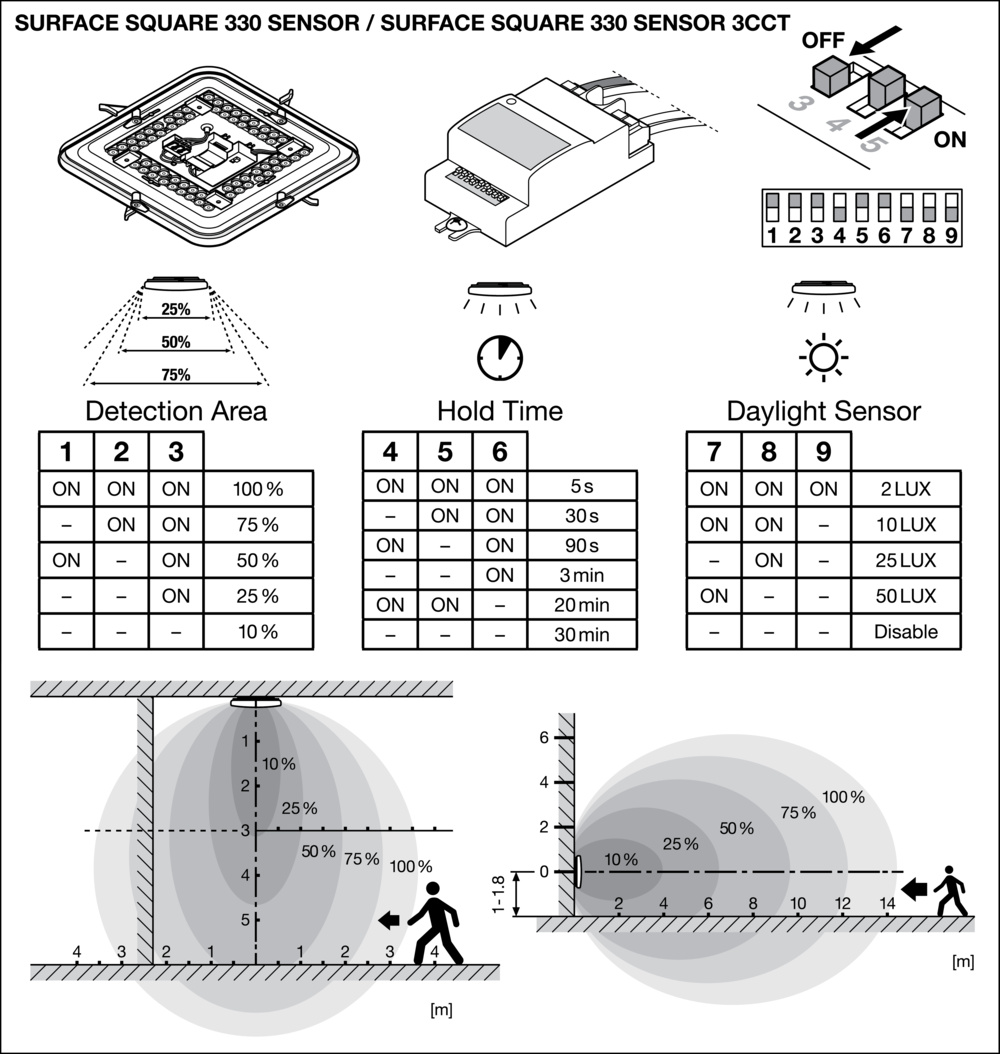

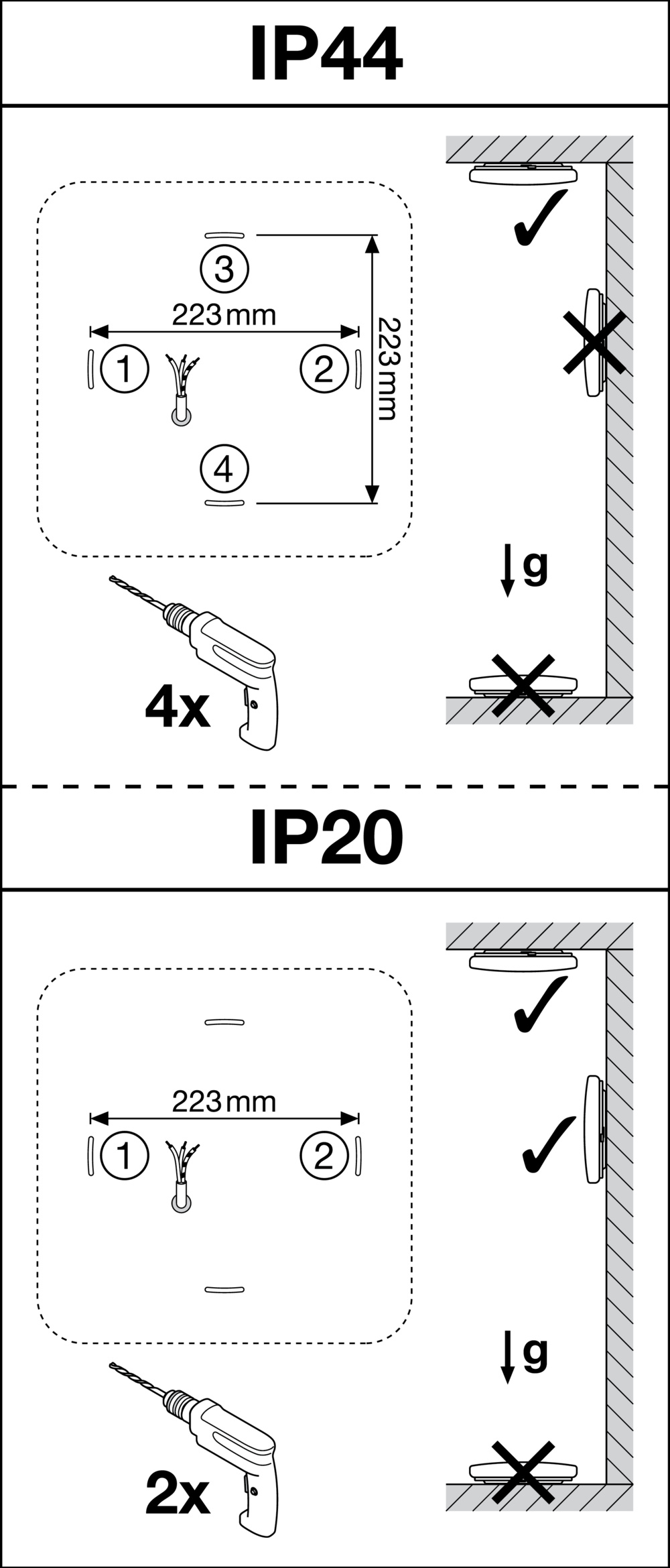

Wall and ceiling light with IP44, high-frequency sensor and selectable colour temperature. Product features: High-frequency sensor for daylight and motion detection. Degree of protection: IP44 (ceiling mounting), IP 20 (wall mounting). Impact resistance: IK03. Metal housing, PMMA cover. Operating ambient temperature range: -20 - +40 °C. Indoor use only, not suitable for outdoor use. Product advantages: Easy adjustment of sensor range, daylight detection and burn time. Interior luminaire with high luminous efficiency. Very versatile thanks to a selectable light colour (CCT Select) in 3000K, 4000K and 5000K. Up to 55% energy savings compared to luminaires using compact fluorescent lamps. Easy and quick installation. Very homogeneous light. 5-year warranty. Areas of application: corridors. Staircases. Bathroom. Gains. Technical equipment: Replacement cover available as an option.

Minimum order quantity

5 pieces

Order step

5 pieces

Weight

0,755 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

Yes

Dimming DALI-2

Max. Number of lights Circuit breaker C16

106

Constant luminous flux control

Adjustable color temperature

Steps

Adjustable luminous flux

Adjustable beam angle

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Housing color

white

Max. System performance

24,00 W

Color temperature

3.000,00 K

Protection class (IP)

IP44

Without dimming function

Yes

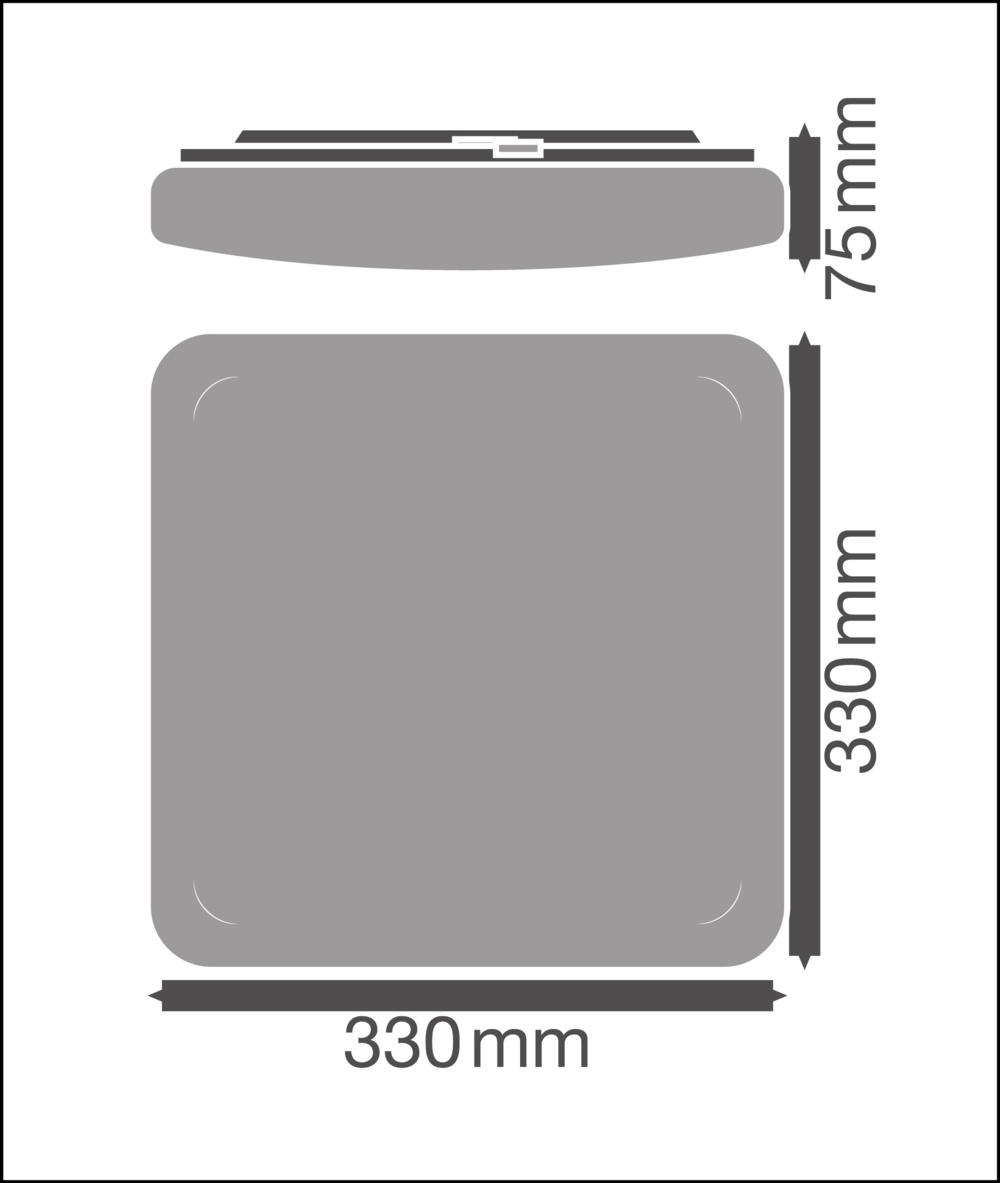

Width

330,00 mm

Height/depth

75,00 mm

Length

330 mm

Suitable for number of light sources

Version

other

Surface protection housing

powder-coated

Design of the grid

dull

Voltage type

Nominal voltage

220 – 240 V

Rated current

115 mA

Operating device

EVG

Light emission

direct

Rated service life L70/B50 at 25 °C

50.000 h

Rated service life L80/B10 at 25 °C

33.000 h

Impact resistance

IK03

Protection class

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Luminaire luminous efficacy

83 lm/W

Rated luminous flux according to IEC 62722-2-1

2.000 lm

Light source

LED not replaceable

Type of wiring

Conclusion

Number of poles

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for wall mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

With motion detector

Yes

With light sensor

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes

Datenblatt

4099854042058_SF_SQUARE_330_SEN_V_24W_3CCT_IP44_de.pdf asset-13147128.pdf asset-13140110.pdf
