HQL LED FIL V 00LM 60W 840 E40

SKU: 02-4099854071959
Datasheet: Download PDF
For further information, please refer to the data sheet!

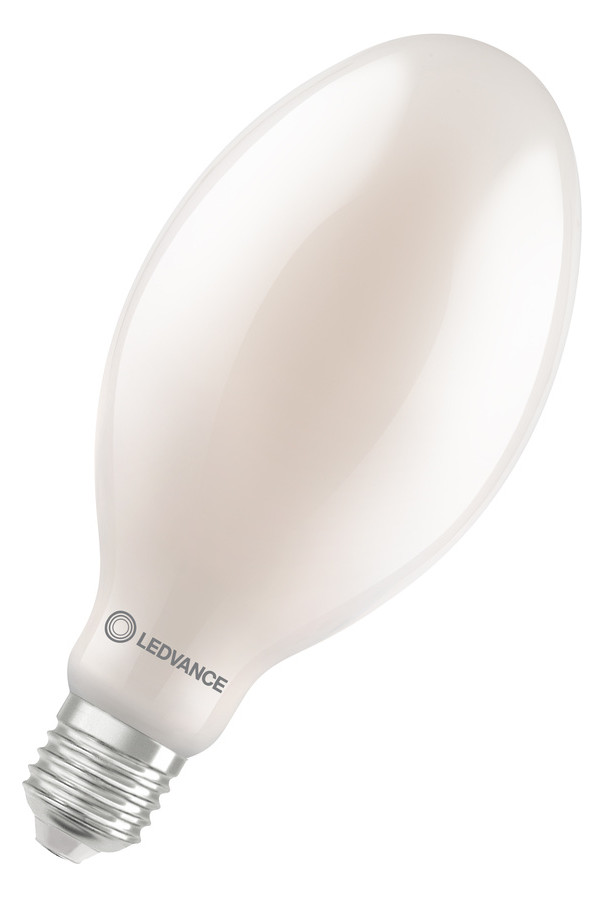

LED replacement of HQL lamps for design-oriented applications in outdoor lighting. Product features: Replacement of HQL: Suitable for operation with conventional ballasts (KVG, VVG) for HQL or 230 V mains voltage. Replacement of other HID: Suitable for mains power operation without ballast. Power factor: 0.9. Degree of protection: IP65. Surge protection: up to 2 kV (L-N). Product advantages: Same design as traditional HQL lamps with ellipsoidal, matt all-glass bulb. Complete use of the reflector of the existing luminaire thanks to the 360-degree beam angle. Saves up to 78% energy when used as a replacement for mercury vapor (HQL) lamps. Instant 100% light, no warm-up time. Areas of application: Roads. Area lighting. Pedestrian zones. Parks. Outdoor applications only in suitable luminaires.
Minimum order quantity

6 pieces

Order step

6 pieces

Weight

0,3 kg

Product group

LED lamp/multi-LED (EC001959)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Nominal voltage

220 V

Rated current

265 mA

Lamp wattage

60 W

Voltage type

AC

Luminous flux

9.000,00 lm

Rated luminous flux according to IEC 62612

9.000 lm

Lamp luminous efficacy

150 lm/W

Color rendering index CRI

80-89

Lamp shape

other

Filament lamp

Yes

Glass/cover version

frosted

Light color according to EN 12464-1

neutral white 3300 to 5300 K

Base

E40

Color temperature

4.000,00 K

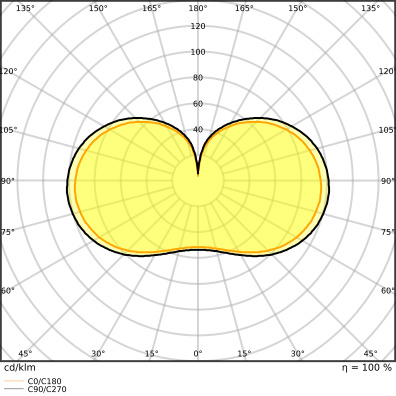

Beam angle

360 °

Color consistency (McAdam ellipse)

SDCM6

Diameter

120 mm

Length

260 mm

Protection class (IP)

IP65

Energy efficiency class

D

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

60 kWh

Average rated service life

25.000 h

Remote control possible

No

Photobiological safety according to EN 62471

RG1

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode lamps (LED lamps) (85395200)

REACH Indicator

No
