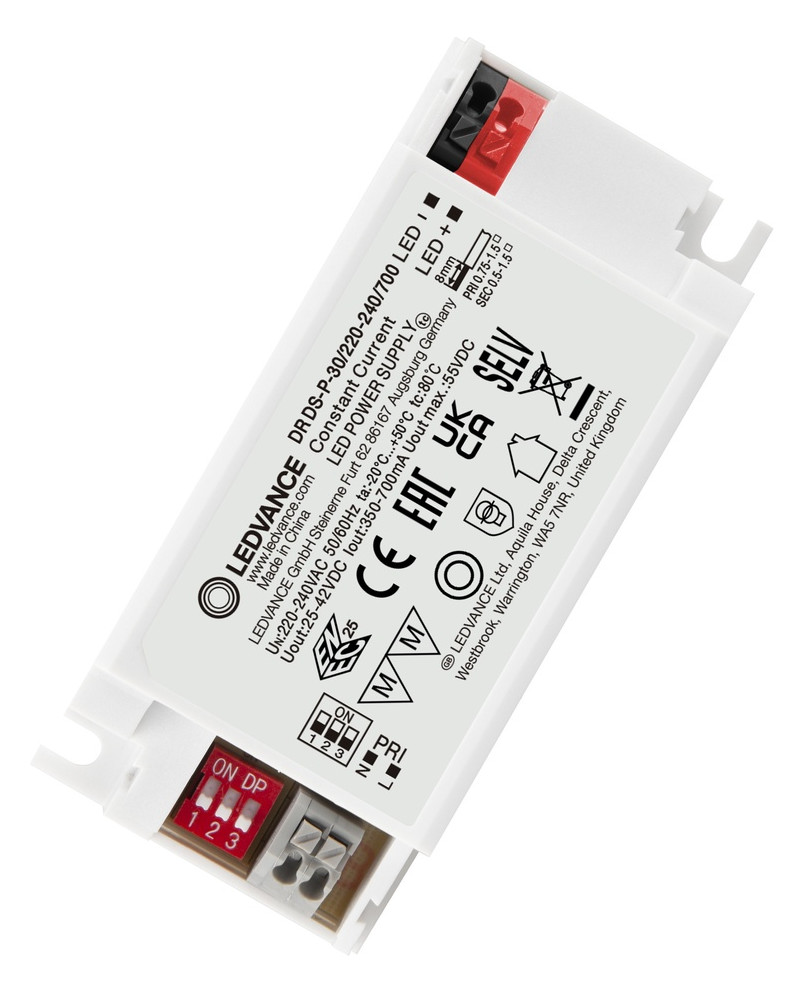

LED DRIVER DIP SWITCH -30/220-240/700

SKU: 02-4099854077081

Datasheet: Download PDF

For further information, please refer to the data sheet!

Constant current LED driver with dip switch current adjustment. Product features: Available in 20 W, 30 W, 40 W. Independent installation with optional cable clamp kit. Service life: up to 50,000 h (at max. tc temperature). Degree of protection: IP20. Low ripple current < 5%. Supply voltage: 220... 240 V. Operating frequency: 50/60 Hz. Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384. Immunity, immunity to interference according to EN 61547. Product advantages: High flexibility due to adjustable output currents via dip switches. Low flickering enables high light quality as well as good visual comfort. 5-year warranty. Slim housing for narrow installations. High efficiency and reliability. Areas of application: Suitable for LED lights and LED modules. Suitable for luminaires of protection class I and II. For indoor SELV installations. Offices, shopping malls, hospitals, restaurants, hotels. Suitable for many types of luminaires (due to large, flexible current adjustment). Technical equipment: Cable clamp kit for optimized strain relief.

Minimum order quantity

10 pieces

Order step

10 pieces

Weight

0,07 kg

Product group

LED control gear (EC002710)

Constant luminous flux control

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

Static

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

Suitable for DC voltage (primary side)

Yes

Protection class (IP)

IP20

Protection class

Length

97,8 mm

Width

44,00 mm

Height

25,50 mm

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes
