LED TUBE T5 AC MAINS P 849 mm 16W 865

SKU: 02-4099854081187

Datasheet: Download PDF

For further information, please refer to the data sheet!

LED tubes for mains connection. Product features: LED replacement for fluorescent lamps with G5 base on mains voltage. Glass lamp tube with shatter protection for applications e.g. in the food industry. High color consistency: ≤ 5 SDCM (threshold value unit). Service life: up to 50,000 h. Low flicker according to EU 2019/2020 (SVM ≤0.4 / PstLM ≤ 1). Degree of protection: IP20. Product advantages: No sagging thanks to glass technology. Splinter protection thanks to special PET coating. High luminous flux for demanding lighting tasks. Areas of application: General lighting in ambient temperatures of -20...+45 °C. Offices, public facilities. Supermarkets and department stores. Industry.

Minimum order quantity

10 pieces

Order step

10 pieces

Weight

0,116 kg

Product group

LED lamp/multi-LED (EC001959)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Nominal voltage

220 V

Rated current

75 mA

Power factor

0,90

Lamp wattage

16 W

Voltage type

Luminous flux

2.400,00 lm

Rated luminous flux according to IEC 62612

2.400 lm

Lamp luminous efficacy

150 lm/W

Color rendering index CRI

80-89

Lamp shape

Tube, double-ended

Filament lamp

Glass/cover version

frosted

Light color according to EN 12464-1

Daylight white >5300 K

Base

Color

white

Color temperature

6.500,00 K

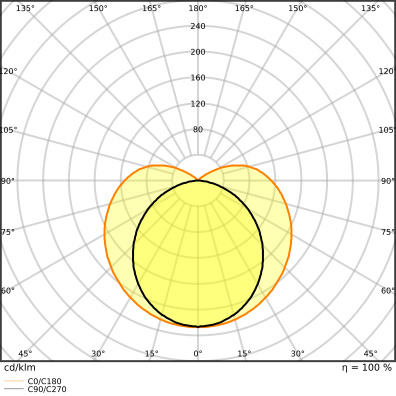

Beam angle

190 °

Color consistency (McAdam ellipse)

SDCM5

Diameter

19 mm

Length

849 mm

Protection class (IP)

IP20

Lamp designation

other

Energy efficiency class

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

16 kWh

Average rated service life

50.000 h

Remote control possible

Photobiological safety according to EN 62471

RG0

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode lamps (LED lamps) (85395200)

REACH Indicator

Yes

Datenblatt

4099854081187_LED_TUBE_T5_AC_HO39_P_849_mm_16W_865_de.pdf asset-13138972.pdf asset-13097884.pdf
