PANEL PROTECT 600 PS 36W 840 PS

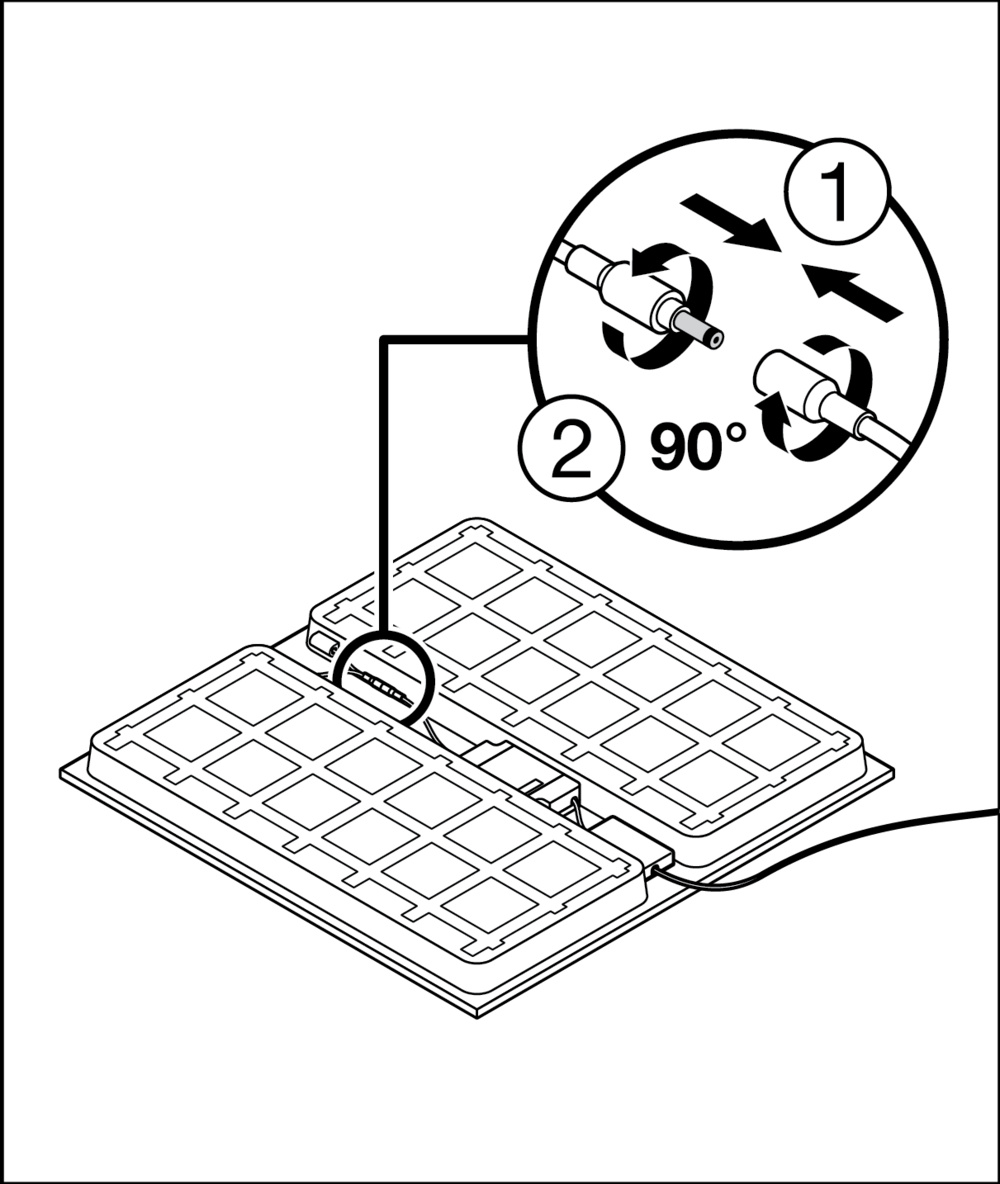

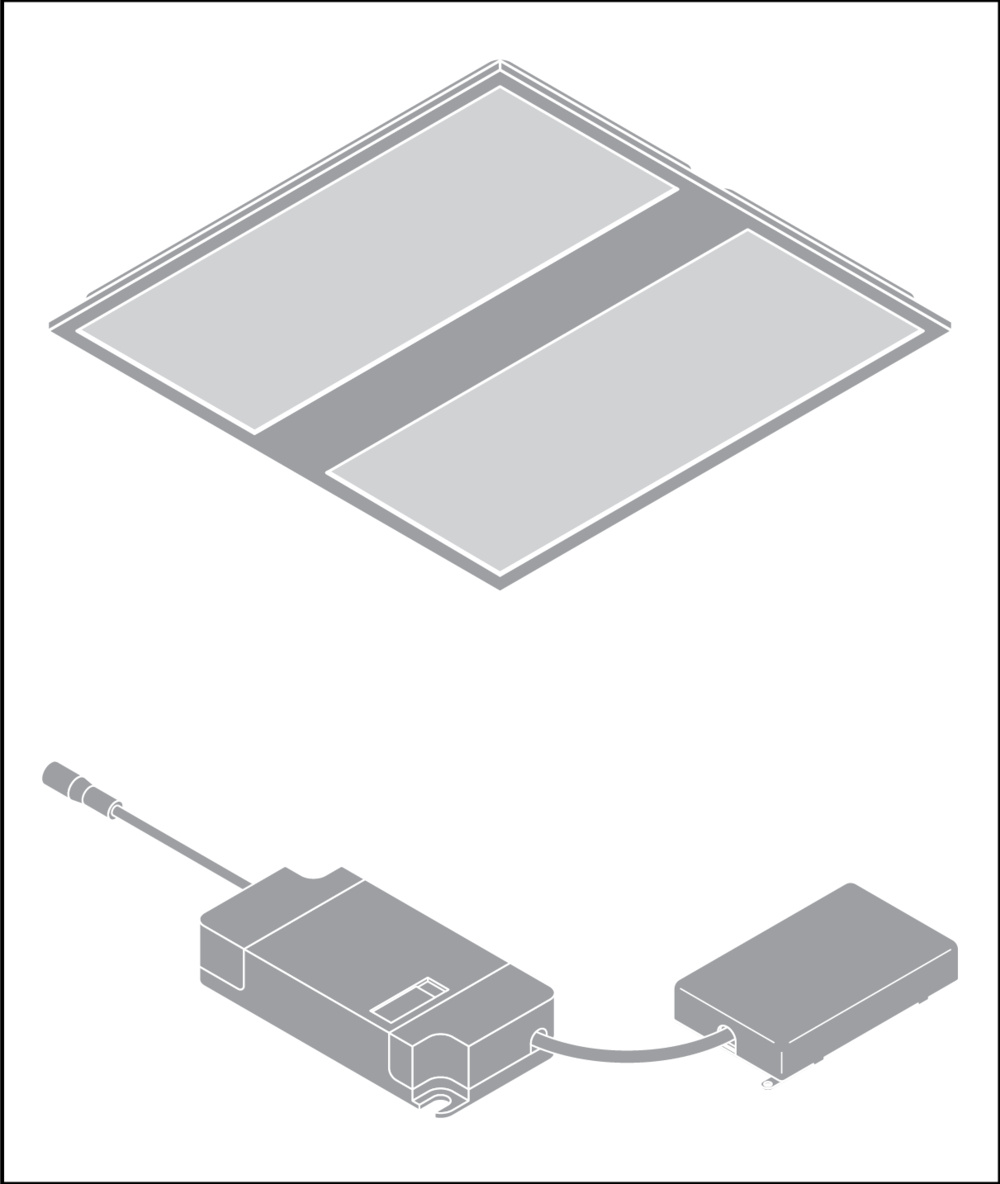

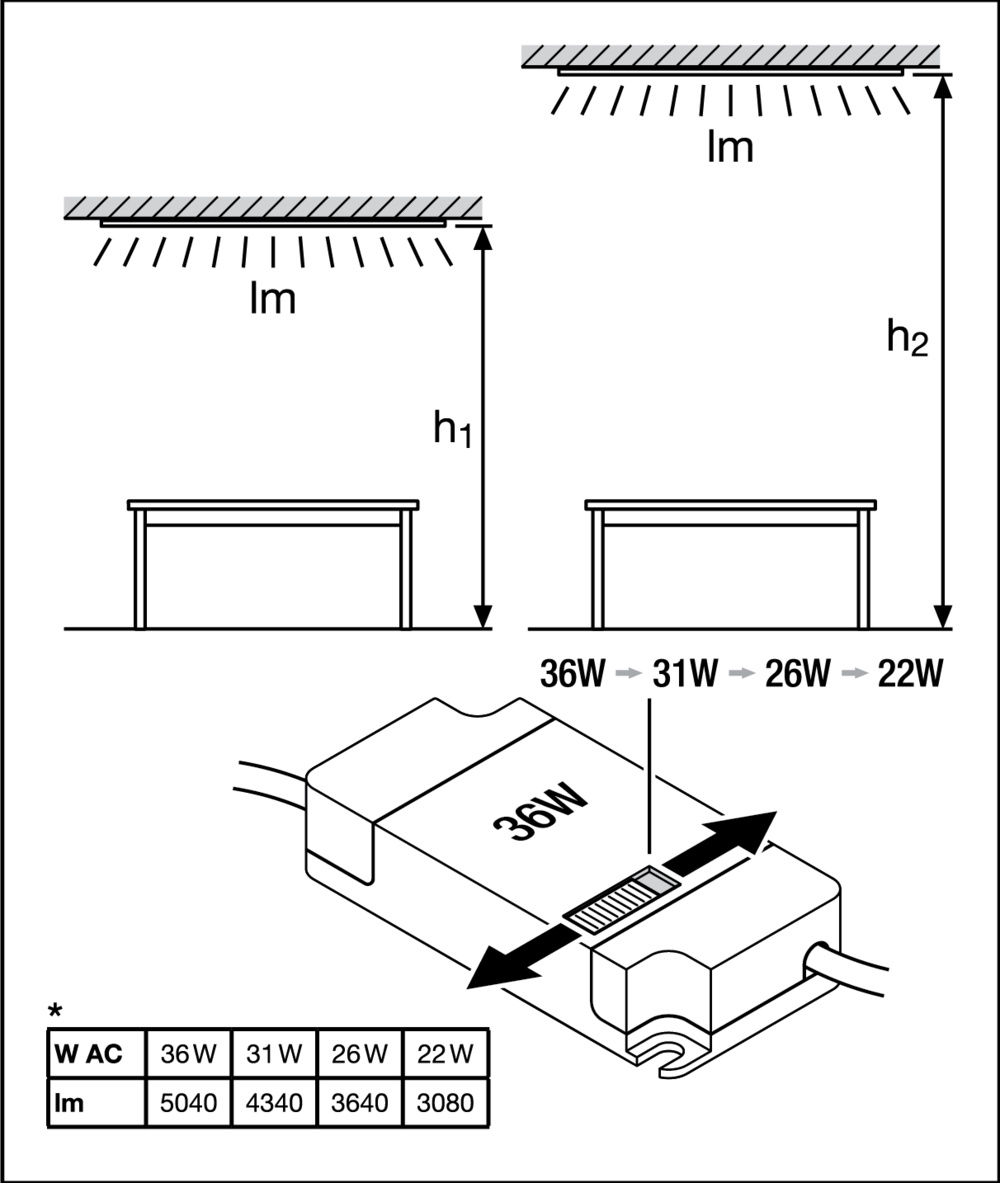

Square recessed luminaires with IP54 protection and selectable wattage adjustment (Power Select - PS), 600 x 600 mm. Product features: Degree of protection: IP54 (front), IP20 (rear). Sheet steel housing with rear recess for the driver to allow a total height of 34 mm. PMMA diffuser. 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm?. Luminaire versions with IoT-enabled DALI-2 driver available. Service life (L90/B10): 50,000 h (at 25° C). Panel can be equipped with optical sensors on individual request. Product advantages: Suitable for applications where a higher degree of protection is required. Very versatile thanks to a wattage setting (Power Select - PS) that can be selected on the driver and up to 5040 lm. Tool-free electrical connection thanks to push-button connection terminal. Through-wiring possible with included connection box. Energy savings thanks to high system luminous efficiency: up to 140 lm/W. High color consistency with SDCM 3. Advanced services such as power consumption monitoring and remote maintenance possible with DALI versions. External driver for extended flexibility and easy installation. Easy cleaning of the front thanks to the smooth PMMA diffuser. Suitable for use in emergency lighting applications in accordance with EN 60598-2-22. 5-year warranty. Areas of application: Direct replacement for luminaires with fluorescent lamps. Suitable for recessed ceiling systems with a grid dimension of 600 x 600 mm. Hospitals. Laboratories. Kitchens, canteens, work areas. Technical equipment: Accessories available for various installation options. Connection box with 5-pin connection terminal pre-installed. Safety rope for lights included. Safety clamps pre-assembled. External ballast included. Suitable for operation with Emergency Conversion Box. Special mounting frame with a total height of only 50 mm available separately.

Minimum order quantity

5 pieces

Order step

5 pieces

Weight

2,02 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

Yes

Dimming DALI-2

Max. Number of lights Circuit breaker C16

Constant luminous flux control

Adjustable color temperature

Adjustable luminous flux

Steps

Adjustable beam angle

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Housing color

white

Max. System performance

36,00 W

Color temperature

4.000,00 K

Protection class (IP)

IP54

Without dimming function

Yes

Width

595,00 mm

Height/depth

50,00 mm

Length

595 mm

Installation length

575 mm

Installation width

575 mm

Surface protection housing

powder-coated

Installation height/depth

50 mm

Design of the grid

dull

Voltage type

Nominal voltage

220 – 240 V

Rated current

165 mA

Operating device

EVG

Light distributor

Diffuser lens/optics/panel

Color consistency (McAdam ellipse)

SDCM3

Light emission

direct

Rated service life L70/B50 at 25 °C

100.000 h

Rated service life L80/B10 at 25 °C

70.000 h

Impact resistance

IK02

Protection class

Rated ambient temperature according to IEC 62722-2-1

-10 – 50 °C

Luminaire luminous efficacy

140 lm/W

Rated luminous flux according to IEC 62722-2-1

5.040 lm

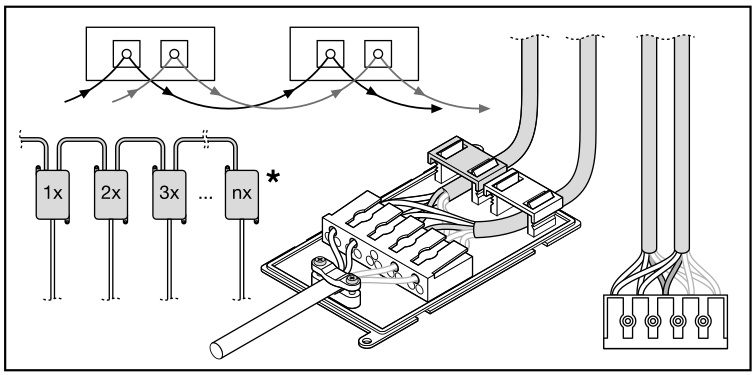

Type of wiring

Suitable for through-wiring

Number of poles

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for recessed mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes

Datenblatt

4099854082887_PL_PROT_600_P_36W_840_PS_de.pdf asset-13153265.pdf asset-13150841.pdf
