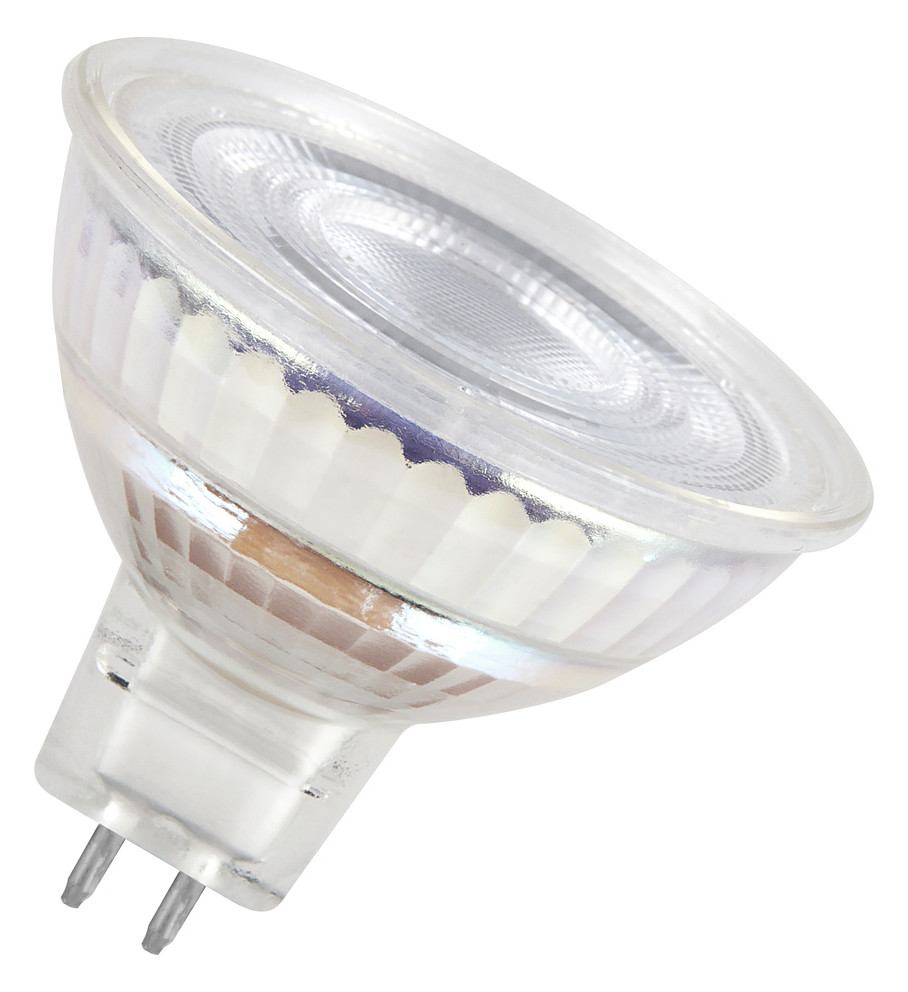

LED MR16 P 6.5W/827 GU5.3

SKU: 02-4099854103582
Datasheet: Download PDF
For further information, please refer to the data sheet!
Low-voltage LED reflector lamps MR16 with retrofit socket. Product features: LED alternative to low-voltage halogen lamps. High color consistency: ≤ 6 SDCM (threshold value unit). Not dimmable. Socket: GU5.3. Lamp made of glass. Good light quality; Colour rendering index Ra: ≥ 80. Service life: up to 15,000 h. Product advantages: Simple, fast and safe lamp replacement without rewiring. Design, dimensions, luminous flux comparable to an incandescent or halogen lamp. Low maintenance due to long service life. No UV- and IR-related components in the light beam. Instant 100% light, no warm-up time. Areas of application: Sales and showrooms. Household applications. Application in industry. Accent. Outdoor use only in suitable outdoor luminaires. Technical equipment: Equipped with high-power LED.
Minimum order quantity

10 pieces

Order step

10 pieces

Weight

0,038 kg

Product group

LED lamp/multi-LED (EC001959)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Nominal voltage

12 V

Rated current

770 mA

Lamp wattage

6,5 W

Voltage type

AC/DC

Luminous flux

630,00 lm

Rated luminous flux according to IEC 62612

630 lm

Lamp luminous efficacy

96 lm/W

Luminous intensity

210 cd

Color rendering index CRI

80-89

Lamp shape

Reflector

Filament lamp

No

Light color according to EN 12464-1

warm white <3300 K

Base

GU5,3

Color temperature

2.700,00 K

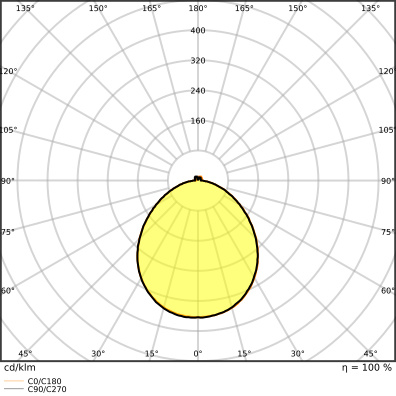

Beam angle

120 °

Color consistency (McAdam ellipse)

SDCM6

Diameter

50 mm

Length

44 mm

Protection class (IP)

IP20

Lamp designation

MR16

Energy efficiency class

F

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

7 kWh

Average rated service life

15.000 h

Remote control possible

No

Photobiological safety according to EN 62471

RG1

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode lamps (LED lamps) (85395200)

REACH Indicator

Yes

Datenblatt
4099854103582_LED_MR16_50_120°_P_6.5W_827_GU5.3_de.pdfasset-13146662.pdf
