PANEL COMPACT 1200 X 600 53W 840

Rectangular recessed luminaires, for 1200 x 600 mm ceiling systems. Product features: Extruded aluminium frame. Polystyrene diffuser. Service life (L80/B10): up to 50,000 h (at 25 °C). Product advantages: Low-flicker light thanks to special electronic ballast. Energy savings thanks to system luminous efficacy of up to 110 lm/W. External driver for extended flexibility and easy installation. Versions with DALI-ECG available. 5-year warranty. Areas of application: Direct replacement for luminaires with fluorescent lamps. Office space, conference rooms. Reception areas, entrance areas, corridors, elevators. Suitable for recessed ceiling systems with a grid dimension of 1200 x 600 mm. Technical equipment: Accessories available for various installation options. Safety rope for lights included. Safety clamps pre-assembled. External ballast included. Suitable for operation with Emergency Conversion Box. Connection box with 5-pin terminal for through-wiring for cable cross-sections up to 2.5 mm? sold separately.

Minimum order quantity

2 pieces

Order step

2 pieces

Weight

3,5 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

Yes

Dimming DALI-2

Max. Number of lights Circuit breaker C16

Constant luminous flux control

Adjustable color temperature

Adjustable luminous flux

Adjustable beam angle

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Housing color

white

Max. System performance

53,00 W

Color temperature

4.000,00 K

Protection class (IP)

IP40

Without dimming function

Yes

Width

595,00 mm

Height/depth

50,00 mm

Length

1.195 mm

Installation length

1.175 mm

Installation width

575 mm

Installation height/depth

50 mm

Design of the grid

high gloss

Voltage type

Nominal voltage

220 – 240 V

Rated current

230 mA

Operating device

EVG

Light distributor

Diffuser lens/optics/panel

Color consistency (McAdam ellipse)

SDCM5

Light emission

direct

Rated service life L70/B50 at 25 °C

70.000 h

Rated service life L80/B10 at 25 °C

50.000 h

Impact resistance

IK02

Protection class

Rated ambient temperature according to IEC 62722-2-1

-10 – 50 °C

Luminaire luminous efficacy

110 lm/W

Rated luminous flux according to IEC 62722-2-1

5.830 lm

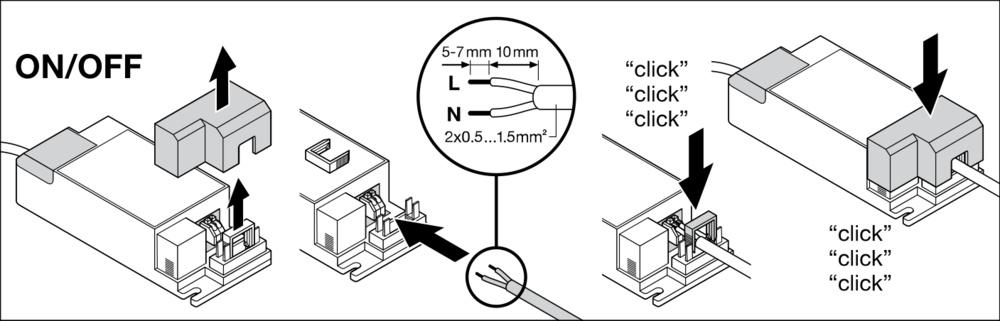

Type of wiring

Suitable for through-wiring

Number of poles

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for recessed mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

Datenblatt

4099854113680_PL_COMP_1200X600_V_53W_840_de.pdf asset-13097363.pdf asset-13136817.pdf
