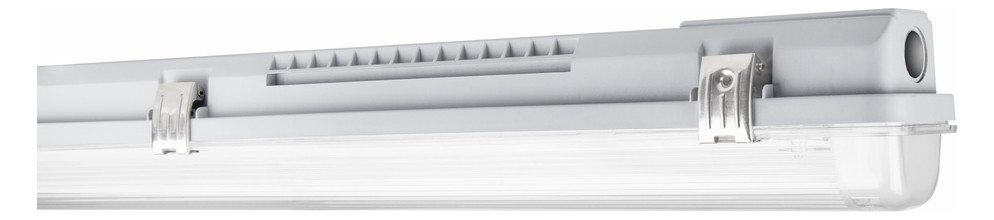

DAMP PROOF HOUSING GEN 3 600P 1XLAMP IP65

SKU: 02-4099854118050
Datasheet: Download PDF
For further information, please refer to the data sheet!

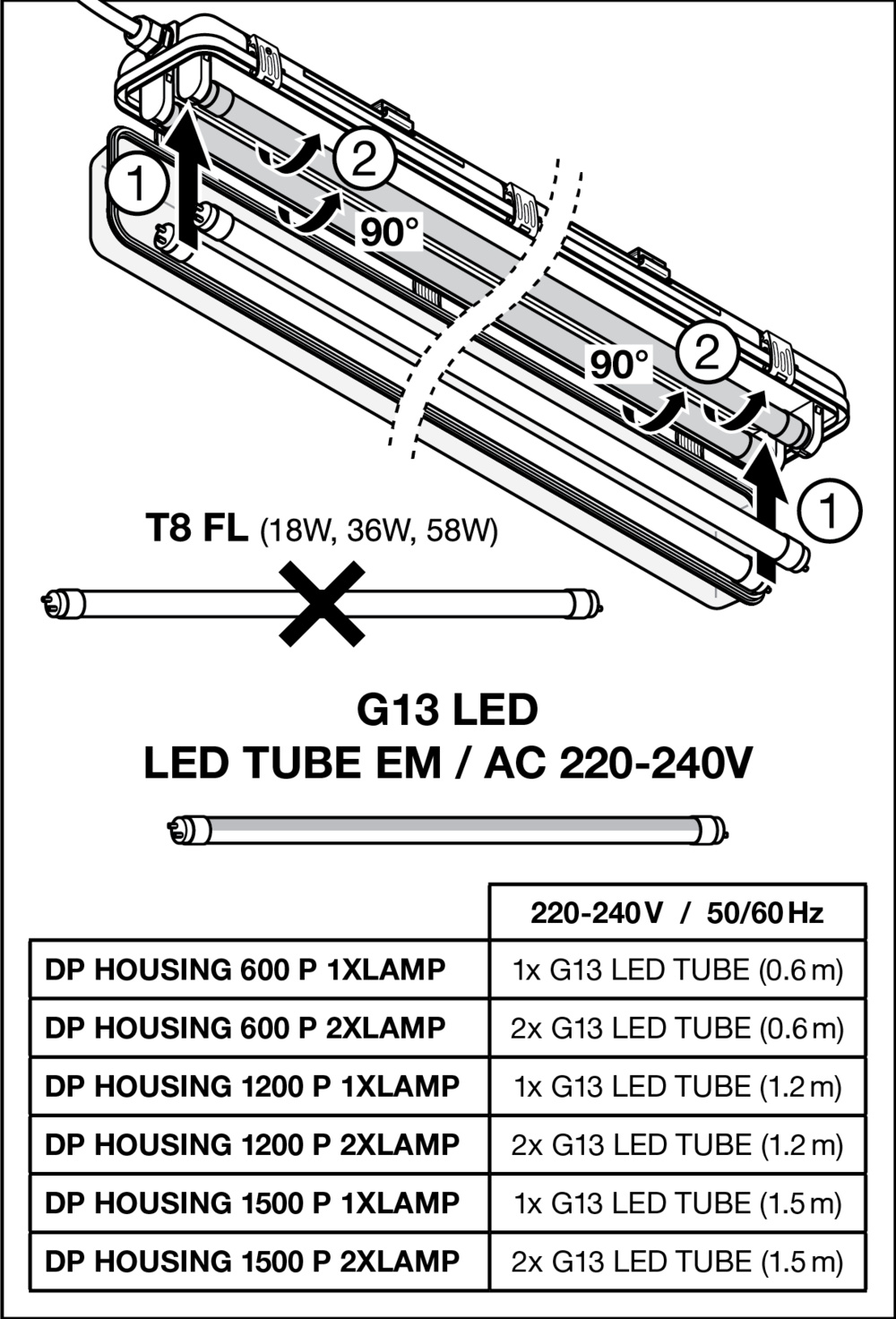

Moisture-proof luminaires for T8 LED lamps with tool-free luminaire clamp. Product features: Luminaire housing, available for 1 or 2 T8 LED tubes. Suitable for LED TUBE T8 EM and LED TUBE T8 CONNECTED. Degree of protection: IP65. Integrated electrical fuse. Product advantages: Easy and quick installation. Pre-wired for easy installation of tubular AC LED lamps. Tool-free installation. Robust housing. Sustainable solution thanks to interchangeable light sources. 5-year warranty. Areas of application: Parking garages, storage areas, production areas. Parking lots and underpasses. Garages. Technical equipment: Required accessories included. Through-wiring set available.
Weight
0,42 kg
Minimum order quantity

10 pieces

Order step

10 pieces

Weight

0,42 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

No

Dimming DALI-2

No

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Housing color

gray

Protection class (IP)

IP65

Without dimming function

Yes

Width

65 mm

Height/depth

70 mm

Length

675 mm

Version

G13

Material of the housing

Plastic

Design of the grid

other

Voltage type

AC

Nominal voltage

220 – 240 V

Light distributor

other

Light emission

direct

Impact resistance

IK08

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-30 – 40 °C

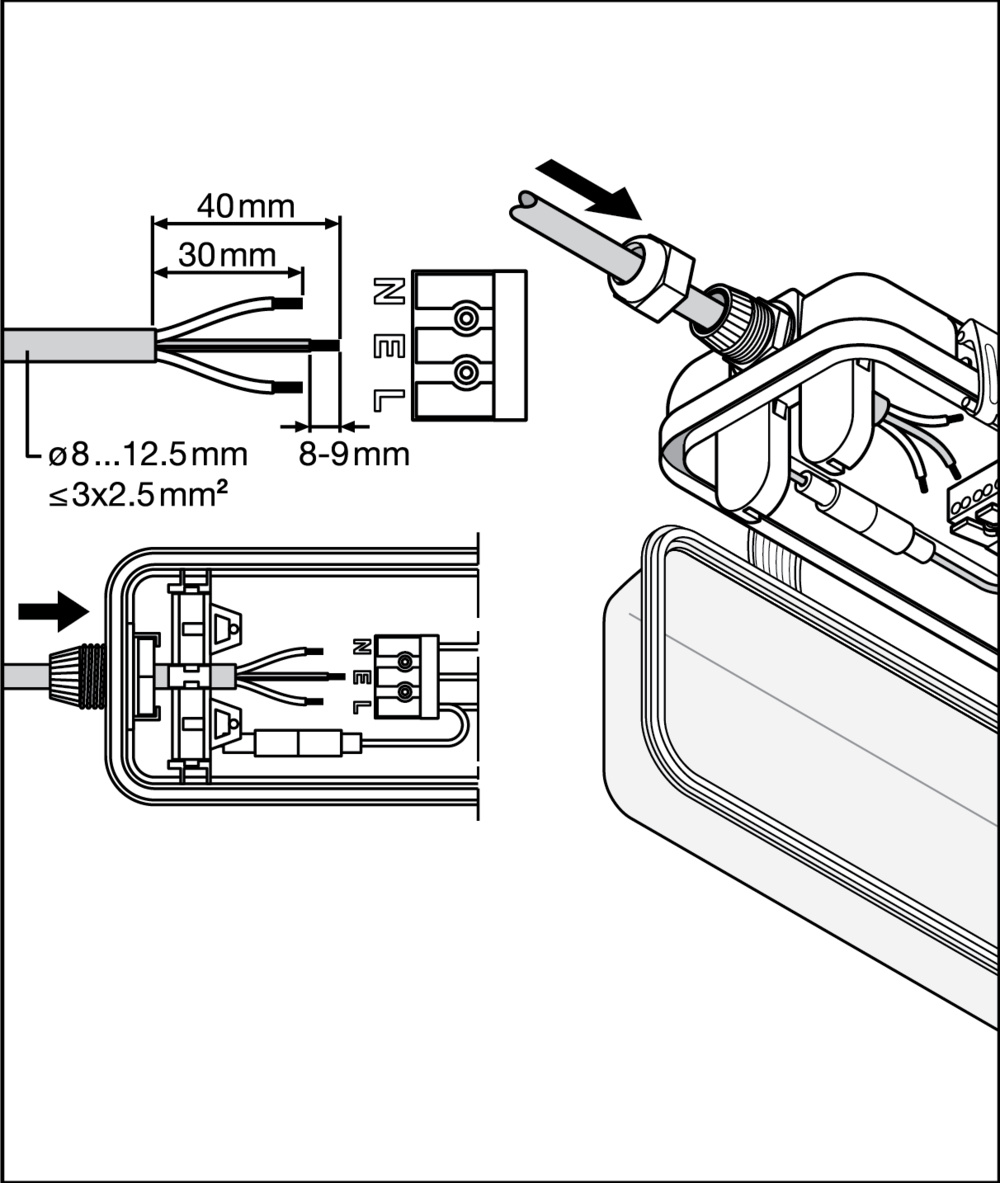

Type of wiring

Suitable for through-wiring

Number of poles

3

Connection type

Plug-in terminal

Suitable for wall mounting

Yes

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, andere als ausschließl. mit LED, aus Kunststoffen und keramischen Stoffen (94051940)

Datenblatt
4099854118050_DP_HOUSING_600_P_1XLAMP_IP65_de.pdf4099854118050_tds_de.pdfasset-13148253-5.jpgasset-13148254-5.jpgasset-13148255-5.jpgasset-13148674-5.pdfasset-13145323-5.pdfasset-13146283.jpg
Suitable for recessed mounting

No

Geeignet für Anbaumontage

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

With illuminant

No

With control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimmung GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Dimming depending on the control gear

No

Bemessungsumgebungstemperatur nach IEC62722-2-1

-30 – 40 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

Mit Luftschlitzen

No

Operation via Bluetooth

No

Cover material

Plastic opal

Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015

nicht erforderlich

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Kompatibel mit Casambi

No

Erfüllt min. EIA Lebensdauerkriterium L90 (bei 50.000 h bei tq = 25 °C)

No
