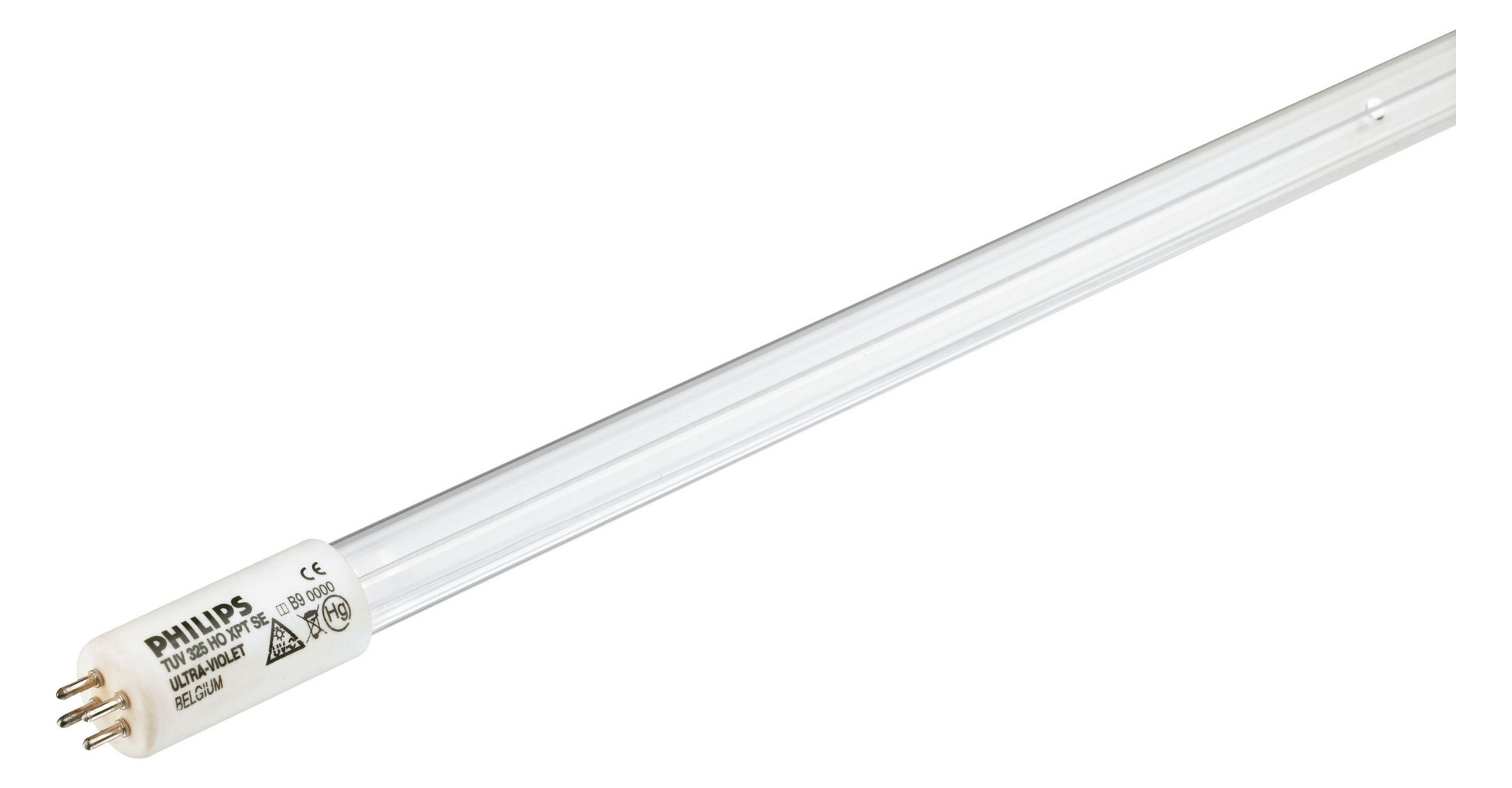

TÜV Amalgam XPT systems - UV lamp - Energy consumption: 130 W

SKU: 03-20943605

Datasheet: Download PDF

For further information, please refer to the data sheet!

TÜV Amalgam XPT lamps are (germicidal) UVC lamps with a long arc that are used in professional water disinfection devices. They combine high efficiency with relatively high power density. Thanks to their constant UVC output over their lifetime, these lamps can be dimmed to achieve the same UVC output as similar lamps on the market, while saving almost 10% of energy. The special amalgam used allows flexibility in system design and application temperature

Product group

UV lamp (EC002962)

Type of UV radiation

UV-C

Black light lamp

Suitable for air disinfection

Yes

Suitable for water disinfection

Yes

Suitable for personal well-being

Suitable for insect control

Suitable for medical applications

Suitable for reprography

Suitable for body tanning

Total length

840 mm

Diameter

19 mm

Lamp shape

Tube, single-ended

Light source

High-pressure mercury vapor lamp

Base

G10,2q

External ballast required

Yes

External ignition device required

Integrated starter

Yes

Lamp wattage

130 W

Lamp voltage

63,00 – 71,00 V

Firing position

p15

Weighted energy consumption in 1,000 hours

154 kWh

Average rated service life

12.000 h

Mercury content

14,00 mg

Dimmable

Yes

Country of origin

China (CN)

Alternative article number

871150020943605

Expected expiry date

31.12.2099
