TL-X XL - Fluorescent lamp - System power: 40.0 W - Energy efficiency class: G - Most similar colour temperature (Nom): 4000 K

SKU: 03-26137340

Datasheet: Download PDF

For further information, please refer to the data sheet!

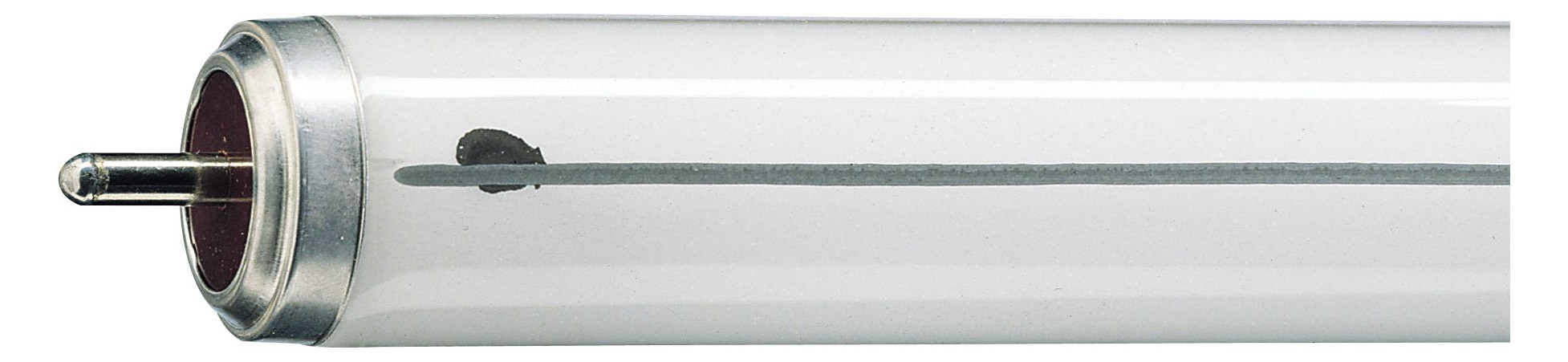

TL-X XL with 38 mm tube diameter has an extended useful life and is equipped with an internal ignition strip for electromagnetic starterless applications or radio frequency applications without a warm start. Combined with a special lamp socket, any sparks can be excluded during ignition.

Product group

Fluorescent lamp (EC000108)

Lamp wattage

40 W

Luminous flux

2.300 lm

Base

Fa6

Color rendering index CRI

60-69

Color temperature

4.000 K

Lamp shape

Staff

Lamp luminous efficacy

58 lm/W

Light color

640

Light color according to EN 12464-1

neutral white 3300 to 5300 K

Pipe diameter

40,5 mm

Length

1.220,5 mm

Internal reflector

Color

white

Application

Explosion-proof environment

Splinter protection

Ignition strip

Quick start

Yes

Starterless operation

Full spectrum lamp

Suitable for Ex luminaires

Yes

Double-walled

For use at low temperatures

Weighted energy consumption in 1,000 hours

40 kWh

Average rated service life

26.000 h

Lamp designation

T12

Country of origin

China (CN)

Alternative article number

871150026137340

Expected expiry date

01.01.2099
