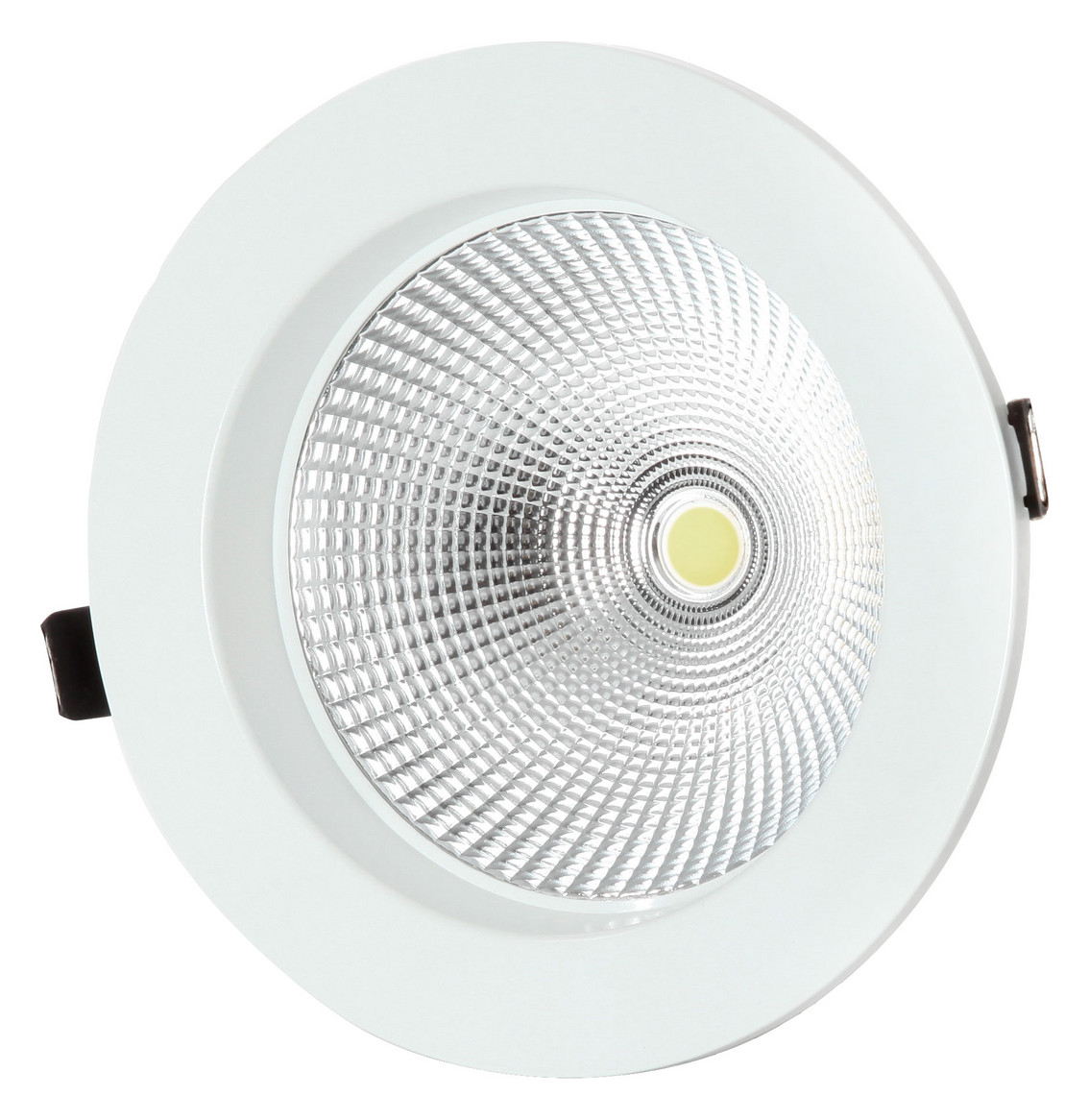

VLED DOWNLIGHT REFLECTOR - Round recessed luminaires rigid white 20W 70° 4000K CRI80 DWL008

SKU: 10-DWL008
Datasheet: Download PDF
For further information, please refer to the data sheet!
Housing made of PMMA and aluminum. Clear coverage. Luminous flux decrease after 30,000h L70/B50. Integrated, non-dimmable control gear. Color tolerance < 6 SDCM. 3 year warranty.
Weight
0,62 kg
Weight

0,62 kg

Product group

Downlight/spotlight/floodlight (EC001744)

Suitable for wall mounting

No

Replaceable operating device

No

Dimming DALI-2

No

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Installation diameter

160 mm

IFTTT support available

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

not adjustable

Light source

LED not replaceable

Suitable for number of light sources

1

Version

Without

Material of the housing

Plastic

Surface protection

powder-coated

Housing color

white

Cover material

Transparent plastic

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Without dimming function

Yes

Reflector

high gloss

Light distributor

Reflector

Light distribution

symmetrical

Beam angle

wide beam 41-80°

Rated service life L70/B50 at 25 °C

36.000 h

Protection class (IP)

IP20

Protection class

II

Max. System performance

20 W

Light color

white

Color temperature

4.000 K

Color rendering index CRI

80-89

Outer diameter

182 mm

Installation height/depth

110 mm

Type of wiring

Conclusion

Number of poles

2

Connection type

Screw terminal

Luminaire luminous efficacy

80 lm/W

Glow wire test according to IEC 60695-2-11

Without

Color consistency (McAdam ellipse)

SDCM6

Reflector color

silver

Suitable for recessed mounting

Yes

Suitable for ceiling mounting

Yes

With illuminant

Yes

With control gear

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

Datenblatt
DWL008.pdfausschreibungstext_dwl008.txt
Suitable for surface mounting

No

Suitable for pendant suspension

No

With motion detector

No

With light sensor

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015

nicht erforderlich

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Integrated emergency power supply

No

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

Operation via Bluetooth

No
