topCENTURY 315 - Surface-mounted luminaires rigid white 40W 65° 4000K CRI80 AC81763.00.92

SKU: 119-AC81763.00.92
Datasheet: Download PDF
For further information, please refer to the data sheet!

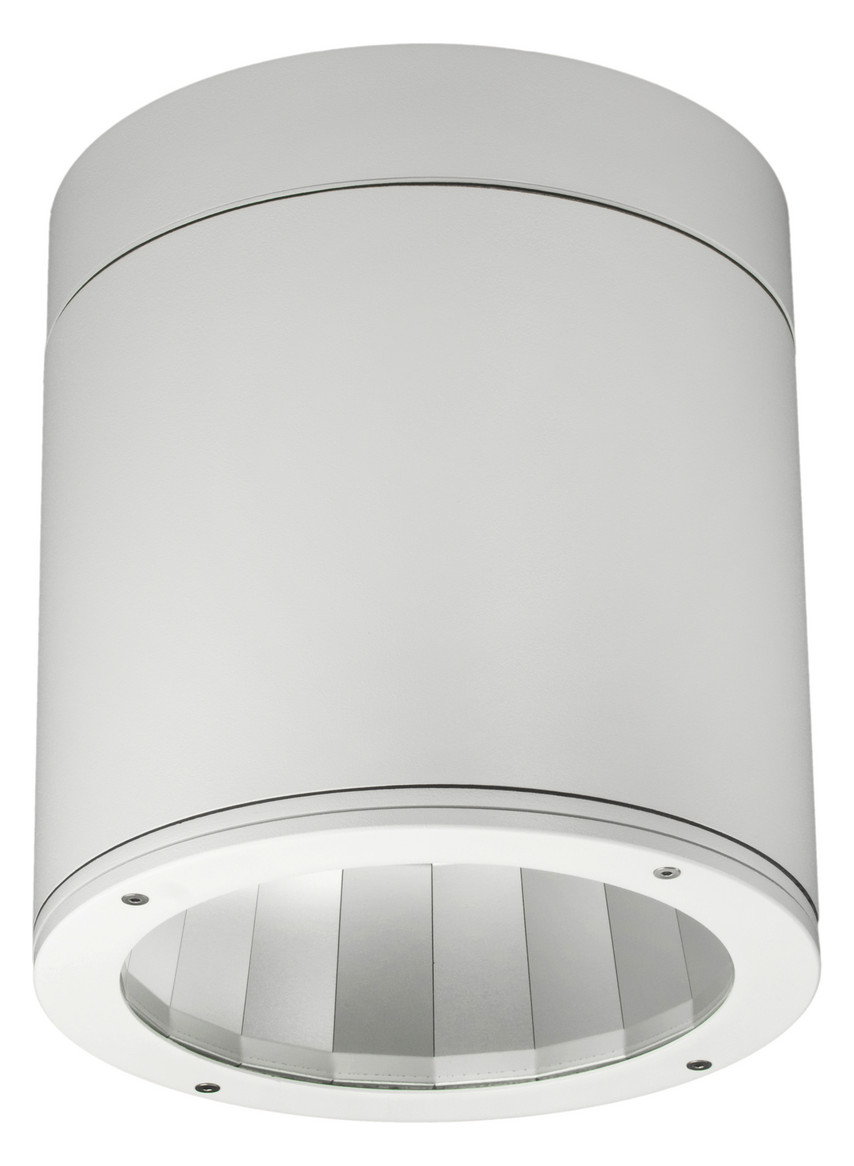

Technical LED surface-mounted ceiling luminaire for higher ceiling heights indoors and outdoors. Extruded aluminium housing, RAL powder-coated. Extruded aluminum anodized heat sink. Bayonet device for connection to ceiling fitting. Aluminum reflector with low glare. Clear protective glass integrated into the glare ring. Color tolerance 3 SDCM. Luminous flux decrease after 50,000h L80/B20. Integrated, non-dimmable control gear. 5-year warranty. Net 5125lm
Family

topCENTURY 315

Weight

4,9 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

Yes

Dimming DALI-2

No

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

10 %

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Housing color

white

Max. System performance

40,00 W

Color temperature

4.000,00 K

Beam angle

wide beam 41-80°

Protection class (IP)

IP65

Without dimming function

Yes

Height/depth

250,00 mm

Outer diameter

230 mm

Surface protection housing

powder-coated

Material of the housing

Aluminum

Cover material

Transparent glass

Design of the grid

Without

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Light distributor

Reflector

Light distribution

symmetrical

Color consistency (McAdam ellipse)

SDCM3

Color rendering index CRI

80-89

Protection class

I

Glow wire test according to IEC 60695-2-11

Without

Luminaire luminous efficacy

128 lm/W

Light color

white

Light source

LED replaceable

Type of wiring

Conclusion

Number of poles

3

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG1

Suitable for wall mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

Country of origin

Germany (DE)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes
