squareCENTURY 445 - Angular recessed luminaires swing-out white 20W 100° 2700K CRI92 AE82603.00.90

SKU: 119-AE82603.00.90
Datasheet: Download PDF
For further information, please refer to the data sheet!

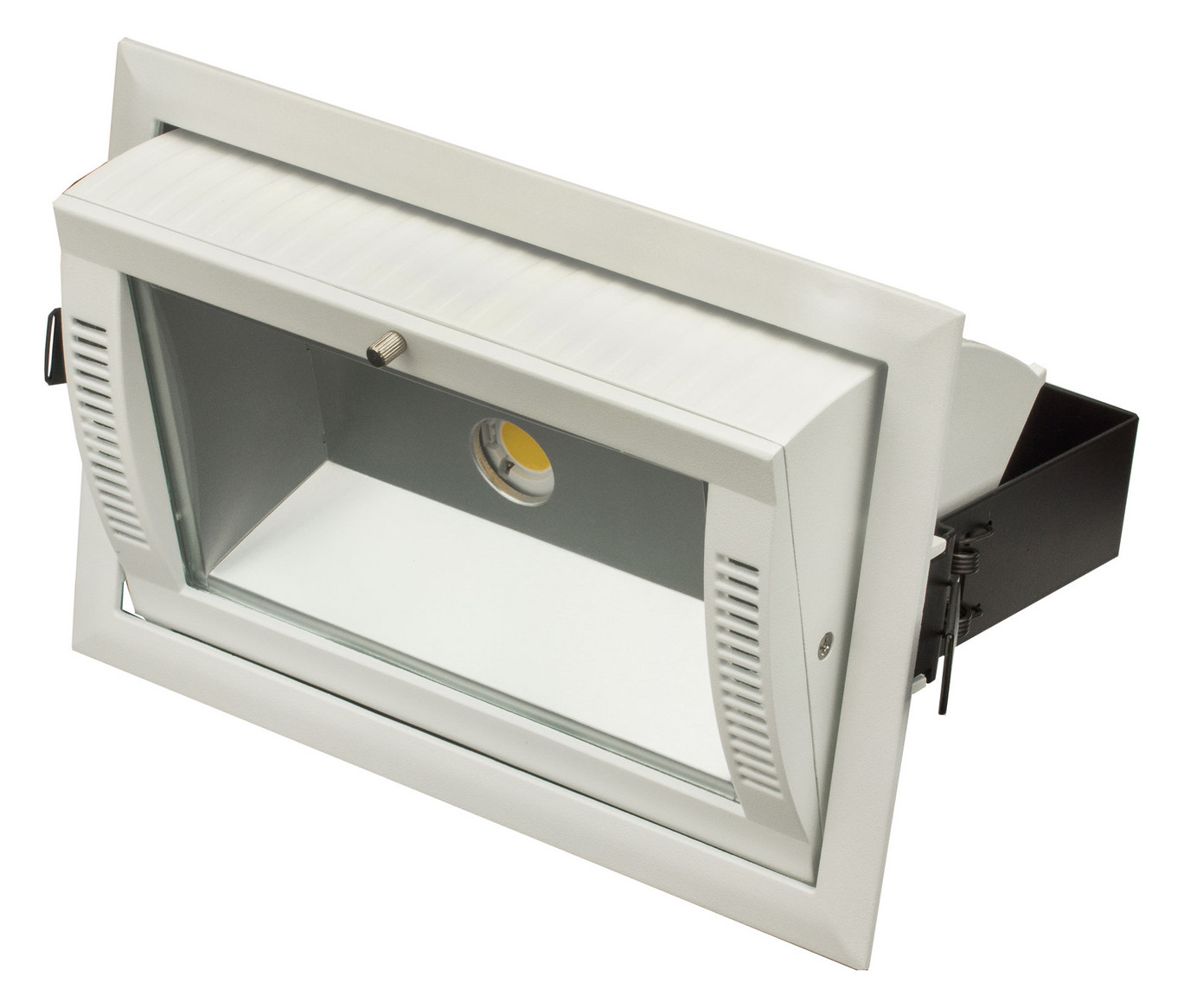

Swing-out LED recessed luminaire for high demands for retail and exhibitions to illuminate the wall surfaces. Aluminium reflector matt. Housing made of die-cast aluminium, RAL powder-coated. High-permeability protective glass. Swivel range 55°. Color tolerance 3 SDCM. Luminous flux decrease after 50,000h L80/B20. Tool-free installation thanks to spring technology. Separate, non-dimmable control gear. 5-year warranty.
Family

squareCENTURY 445

Weight

2,5 kg

Product group

Downlight/spotlight/floodlight (EC001744)

Suitable for wall mounting

No

Replaceable operating device

Yes

Dimming DALI-2

No

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

20 %

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

IFTTT support available

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

pivotable

Light source

LED replaceable

Suitable for number of light sources

1

Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

white

Cover material

Transparent glass

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Without dimming function

Yes

Reflector

high gloss

Light distributor

Reflector

Light distribution

symmetrical

Beam angle

Extremely wide beam >80°

Protection class (IP)

IP20

Protection class

I

Max. System performance

20,00 W

Light color

white

Color temperature

2.700,00 K

Color rendering index CRI

90-100

Luminous flux

2.025,00 lm

Power factor

0,96

Width

170,00 mm

Length

249 mm

Installation width

150 mm

Installation height/depth

170 mm

Installation length

236 mm

Type of wiring

Conclusion

Number of poles

3

Conductor cross-section

0,50 mm²

Connection type

Flat plug

Luminaire luminous efficacy

101 lm/W

Glow wire test according to IEC 60695-2-11

Without

Photobiological safety according to EN 62471

RG1

Color consistency (McAdam ellipse)

SDCM3

Reflector color

silver

Suitable for recessed mounting

Yes

Suitable for ceiling mounting

Yes

With illuminant

Yes

With control gear

Yes

Country of origin

Germany (DE)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes

Datenblatt
AE82603.00.90.pdfdeclaration_rohs_md49.pdfarclite_reach_selbstverpflichtungserklaerung_24-07-30_md05.pdfausschreibungstext_ae82603_00_90.txt
