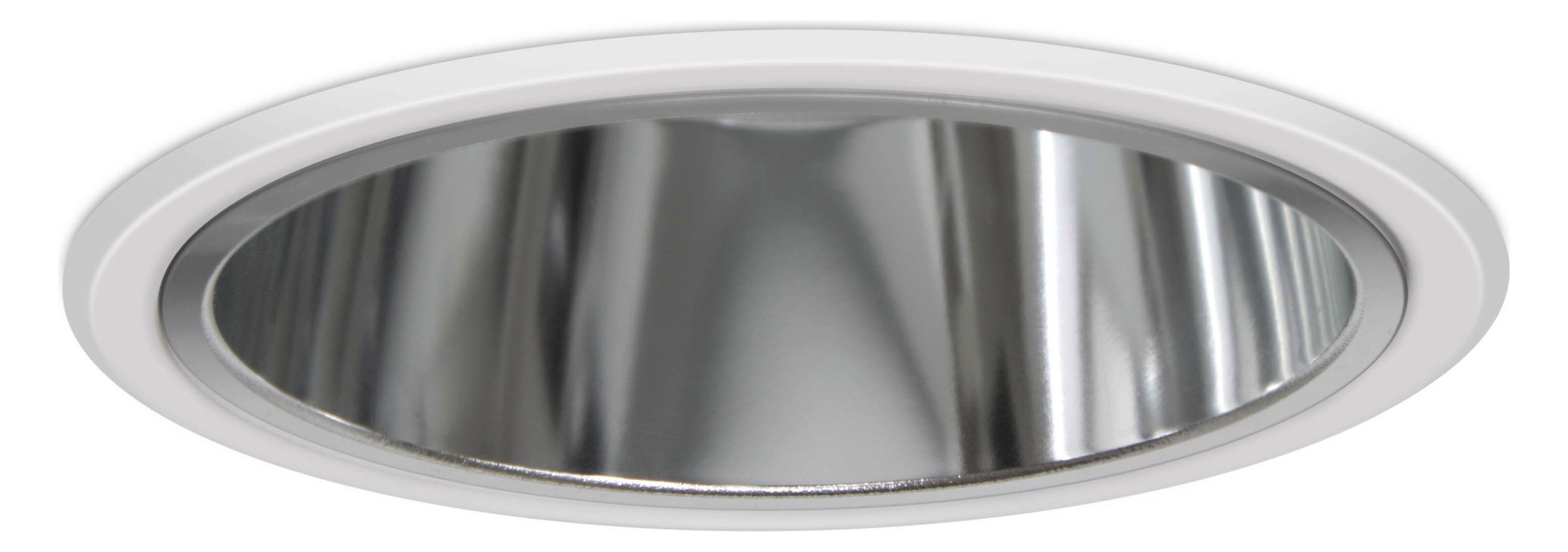

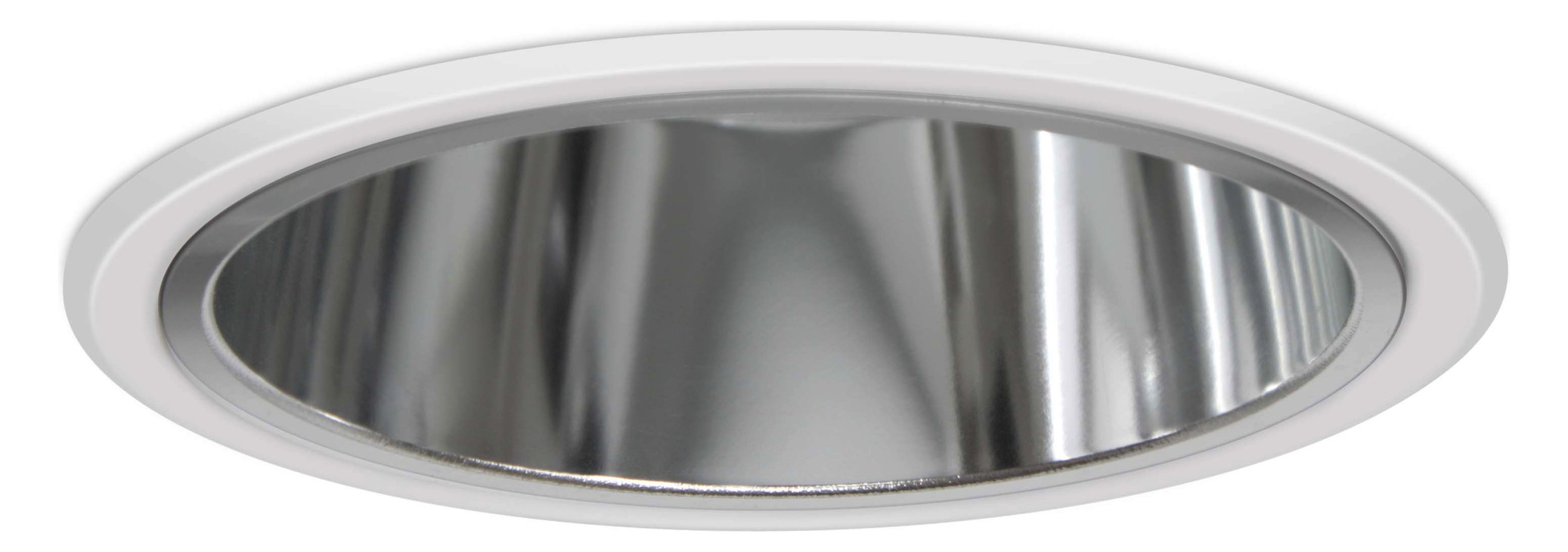

roundCENTURY 165 - Round recessed luminaires rigid white 15W 70° 2700K CRI90 AA81463.00.90

SKU: 217-AA81463.00.90
Datasheet: Download PDF
For further information, please refer to the data sheet!
Innovative and proven recessed luminaire. Luminaire housing made of aluminium and steel, passive cooling system. Aluminium reflector silver, anodized. Color tolerance 2 SDCM. Luminous flux decrease after 50,000h L90/B10. Separate, non-dimmable control gear. Other product configurations on request. 5-year warranty.
Family

roundCENTURY 165

Product group

Downlight/spotlight/floodlight (EC001744)

Suitable for wall mounting

No

Replaceable operating device

Yes

Dimming DALI-2

No

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

90 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

10 %

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Installation diameter

145 mm

IFTTT support available

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

not adjustable

Suitable for number of light sources

1

Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

white

Cover material

Without cover

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Without dimming function

Yes

Reflector

high gloss

Light distributor

Diffuser lens/optics/panel

Light distribution

symmetrical

Beam angle

wide beam 41-80°

Protection class (IP)

IP20

Max. System performance

15,00 W

Light color

white

Color temperature

2.700,00 K

Color rendering index CRI

90-100

Luminous flux

1.210,00 lm

Outer diameter

165 mm

Installation height/depth

120 mm

Type of wiring

Conclusion

Number of poles

2

Connection type

Plug-in terminal

Luminaire luminous efficacy

81 lm/W

Glow wire test according to IEC 60695-2-11

Without

Photobiological safety according to EN 62471

RG1

Color consistency (McAdam ellipse)

SDCM2

Reflector color

silver

Suitable for recessed mounting

Yes

Suitable for ceiling mounting

Yes

With illuminant

Yes

With control gear

Yes

Country of origin

Germany (DE)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes
