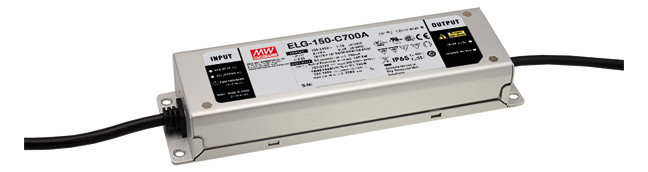

MEAN WELL LED Driver Constant Current ELG-C A 100-305V AC, 142-431V DC / 700mA 149W ELG-150-C700A-3Y

SKU: 514-ELG-150-C700A-3Y
For further information, please refer to the data sheet!
LED power supply, metal housing, power 149W, input voltage 100-305V AC; 142-431V DC. Constant current 700mA. IP65. Output voltage and current limit adjustable via internal potentiometer, overload protection, short circuit protection, overtemperature protection.
Weight
0,95 kg
Manufacturer

MEAN WELL Enterprises

Weight

0,95 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

Static

Without dimming function

Yes

Housing

Metal housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output voltage

107 – 214 V

Output current

700 mA

Suitable for DC voltage (primary side)

Yes

Output power

149 W

Protection class (IP)

IP65

Protection class

I

Length

219 mm

Width

63 mm

Height

35,5 mm

Suitable for outdoor use

Yes

Dimming potentiometer (device-integrated)

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Operation via Bluetooth

No

Kompatibel mit Casambi

No
