MEAN WELL LED Treiber Konstantspannung HLG-A 90-305V AC, 130-430V DC/ 24V DC 96W HLG-100H-24A

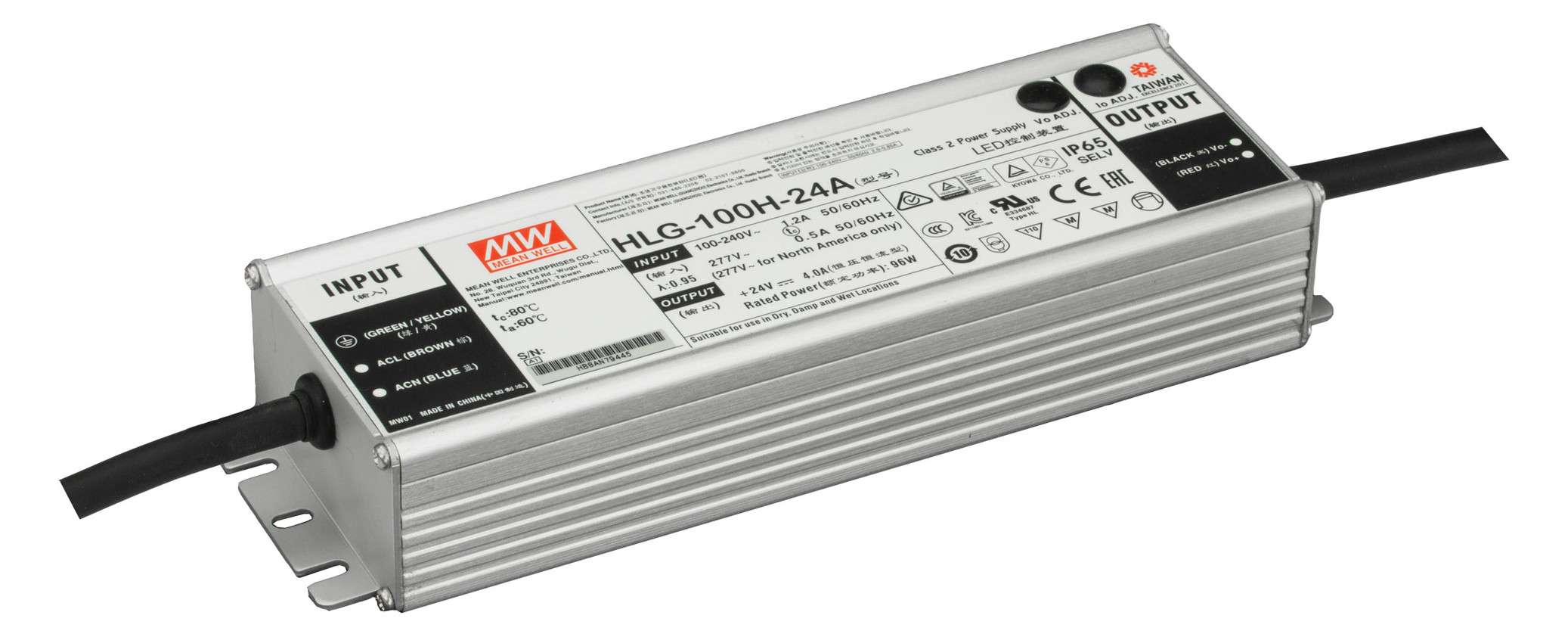

MEAN WELL LED Driver Constant Voltage HLG-A 90-305V AC, 130-430V DC/ 24V DC 96W HLG-100H-24A

SKU: 514-HLG-100H-24A

Datasheet: Download PDF

For further information, please refer to the data sheet!

LED power supply, metal housing, power 96W, input voltage 90-305V AC; 130-430V DC. Constant voltage output 24V. IP65. Output voltage and current limit adjustable via internal potentiometer, overload protection, short circuit protection, overtemperature protection.

Manufacturer

MEAN WELL Enterprises

Weight

1,67 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

Static

Without dimming function

Yes

Housing

Metal housing

Suitable for constant current

Suitable for constant voltage

Yes

Output voltage

24 V

Output current

4.800 mA

Suitable for DC voltage (primary side)

Yes

Output power

100,000 W

Protection class (IP)

IP65

Protection class

Length

220 mm

Width

68,00 mm

Height

38,80 mm

Suitable for outdoor use

Yes

Dimming potentiometer (device-integrated)

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt

HLG-100H-24A.pdf meanwell_reach_svhc_declaration-2024_md05.pdf
