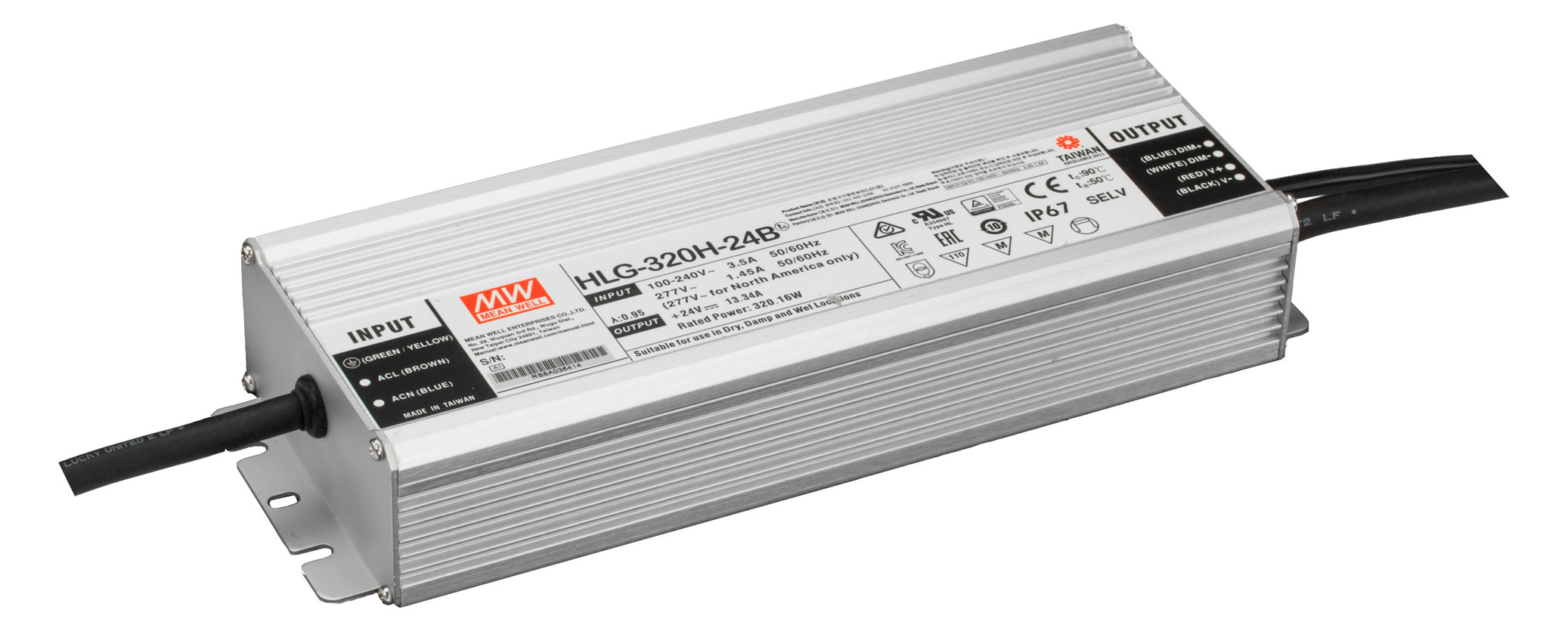

MEAN WELL LED Driver Constant Voltage HLG-B 90-305V AC, 130-430V DC/ 24V DC 320W, 3in1 DIMMING HLG-320H-24B

SKU: 514-HLG-320H-24B

Datasheet: Download PDF

For further information, please refer to the data sheet!

LED power supply, metal housing, power 320W, input voltage 90-305V AC; 130-430V DC. Constant voltage output 24V. IP67, 3in1 dimming (resistance, PWM, 1-10VDC), overload protection, short circuit protection, over-temperature protection.

Manufacturer

MEAN WELL Enterprises

Weight

1,98 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

dynamic

Without dimming function

Housing

Metal housing

Suitable for constant current

Suitable for constant voltage

Yes

Output voltage

24 V

Output current

13.340 mA

Suitable for DC voltage (primary side)

Yes

Output power

320,000 W

Protection class (IP)

IP67

Protection class

Length

252 mm

Width

90,00 mm

Height

43,80 mm

Suitable for outdoor use

Yes

Dimming 1-10 V

Yes

Country of origin

China (CN)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt

HLG-320H-24B.pdf meanwell_reach_svhc_declaration-2024_md05.pdf
