MEAN WELL LED Treiber Konstantstrom DALI LCM 180-290VAC; 254-417V DC, 500-1400mA 60,3W DALI LCM-60DA

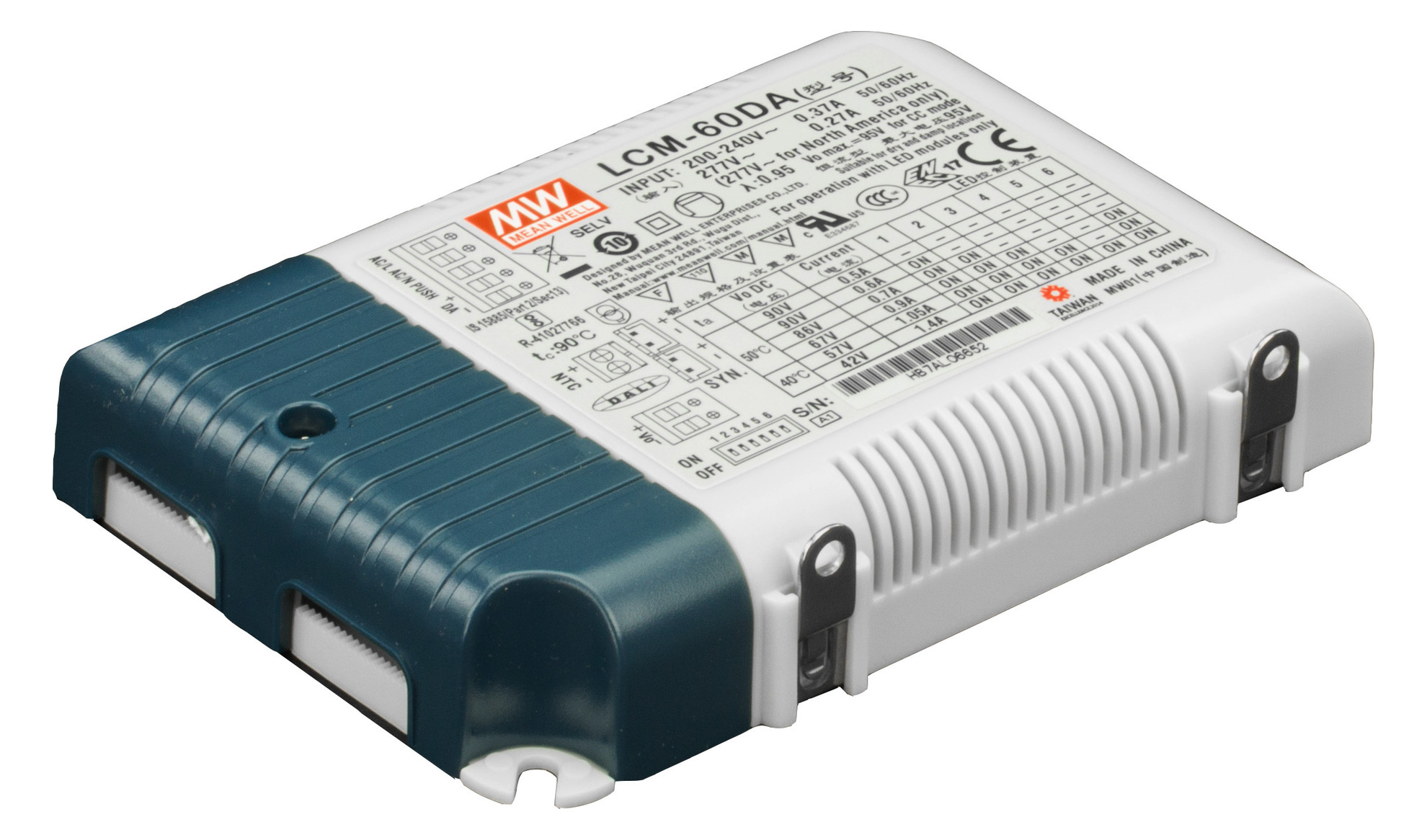

MEAN WELL LED Driver Constant Current DALI LCM 180-290VAC; 254-417V DC, 500-1400mA 60.3W DALI LCM-60DA

SKU: 514-LCM-60DA

Datasheet: Download PDF

For further information, please refer to the data sheet!

Constant current LED power supply, plastic housing SELV, input voltage 180~295VAC, power 60, 3W. Constant current output 350 - 1,050mA (C.C.) (DIP Switch), IP20, dimming via DALI and push DIM.

Manufacturer

MEAN WELL Enterprises

Weight

0,24 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

dynamic

Without dimming function

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

Output current

500 – 1.400 mA

Suitable for DC voltage (primary side)

Output power

60,000 W

Protection class (IP)

IP20

Protection class

Length

123,5 mm

Width

81,50 mm

Height

23,00 mm

DALI dimming

Yes

Dimming with push-button

Yes

Country of origin

China (CN)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt

LCM-60DA.pdf meanwell_reach_svhc_declaration-2024_md05.pdf
