MEAN WELL LED Treiber Konstantleistung LDC 180-295V AC / 55W 27-56V, 500-1600mA LDC-55B

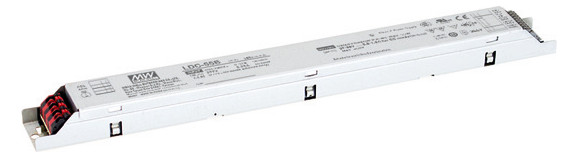

MEAN WELL LED Driver Constant Power LDC 180-295V AC / 55W 27-56V, 500-1600mA LDC-55B

SKU: 514-LDC-55B

Datasheet: Download PDF

For further information, please refer to the data sheet!

LED power supply, metal housing, input voltage 180-295VAC. Constant power 55W, 27-56V/500-1600mA, IP20, 3in1 dimming (resistance, 10V PWM, 0-10VDC), overload protection, short-circuit protection, over-temperature protection.

Manufacturer

MEAN WELL Enterprises

Weight

0,255 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

dynamic

Without dimming function

Housing

Metal housing

Suitable for constant current

Suitable for constant voltage

Output voltage

27 – 56 V

Output current

500 – 1.600 mA

Suitable for DC voltage (primary side)

Output power

55,000 W

Protection class (IP)

IP20

Protection class

Length

320 mm

Width

30,00 mm

Height

21,00 mm

Dimming 0-10 V

Yes

Country of origin

China (CN)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt

LDC-55B.pdf meanwell_reach_svhc_declaration-2024_md05.pdf
