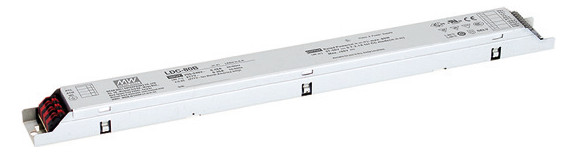

MEAN WELL LED Driver Constant Power LDC 180-295V AC / 80W 27-56V, 1400-2100mA LDC-80B

SKU: 514-LDC-80B
Datasheet: Download PDF
For further information, please refer to the data sheet!
LED power supply, metal housing, input voltage 180-295VAC. Constant power 80W, 27-56V/1400-2100mA, IP20, 3in1 dimming (resistance, 10V PWM, 0-10VDC), overload protection, short circuit protection, over-temperature protection.
Weight
0,295 kg
Manufacturer

MEAN WELL Enterprises

Weight

0,295 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Metal housing

Suitable for constant current

No

Suitable for constant voltage

No

Output voltage

27 – 56 V

Output current

1.400 – 2.100 mA

Suitable for DC voltage (primary side)

No

Output power

80 W

Protection class (IP)

IP20

Protection class

II

Length

360 mm

Width

30 mm

Height

21 mm

Dimming 0-10 V

Yes

Country of origin

China (CN)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt
LDC-80B.pdfmeanwell_reach_svhc_declaration-2024_md05-185.pdf
Suitable for outdoor use

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Operation via Bluetooth

No

Kompatibel mit Casambi

No
